A panel widget displaying the configuration for a child algorithm in a Processing model. More...

#include <qgsmodelchildalgorithmwidgets.h>

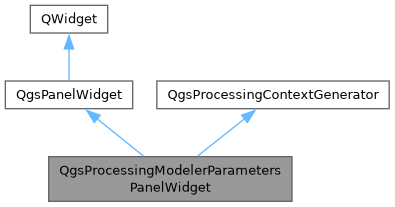

Inheritance diagram for QgsProcessingModelerParametersPanelWidget:

[legend]

Public Member Functions
	QgsProcessingModelerParametersPanelWidget (const QgsProcessingAlgorithm childAlgorithm, QgsProcessingModelAlgorithm model, QgsProcessingContext &context, const QString &childId=QString(), const QVariantMap &configuration=QVariantMap(), QWidget parent=nullptr, QWidget dialog=nullptr)
	Constructor for QgsProcessingModelerParametersPanelWidget.
	~QgsProcessingModelerParametersPanelWidget () override
const QgsProcessingAlgorithm *	algorithm () const
	Returns the algorithm associated with the widget.
std::unique_ptr< QgsProcessingModelChildAlgorithm >	createAlgorithm ()
	Creates the child algorithm instance populated with current widget values.
QgsProcessingContext *	processingContext () const override
	This method needs to be reimplemented in all classes which implement this interface and return a Processing context.
void	setStateFromChildAlgorithm ()
	Sets widget state from the existing child algorithm definition in the model.
void	setWidgetContext (const QgsProcessingParameterWidgetContext &context)
	Sets the context in which the panel is shown, e.g., the parent model algorithm, a linked map canvas, and other relevant information which allows the widget to fine-tune its behavior.
Public Member Functions inherited from QgsPanelWidget
	QgsPanelWidget (QWidget *parent=nullptr)
	Base class for any widget that can be shown as an inline panel.
virtual bool	applySizeConstraintsToStack () const
	Returns `true` if the size constraints and hints for the panel widget should be applied to the parent QgsPanelWidgetStack which this panel is shown in.
bool	autoDelete () const
	The the auto delete property on the widget.
void	connectChildPanel (QgsPanelWidget *panel)
	Connect the given sub panel widgets showPanel signals to this current panels main showPanel event to bubble up to the user.
void	connectChildPanels (const QList< QgsPanelWidget * > &panels)
	Connect the given sub panel widgets showPanel signals to this current panels main showPanel event to bubble up to the user.
bool	dockMode () const
	Returns the dock mode state.
virtual QMenu *	menuButtonMenu ()
	Returns the menu to use for the menu button for this panel, or `nullptr` if no menu button is required.
virtual QString	menuButtonTooltip () const
	Returns the (translated) tooltip text to use for the menu button for this panel.
QString	panelTitle () const
	The title of the panel.
void	setAutoDelete (bool autoDelete)
	The the auto delete property on the widget.
virtual void	setDockMode (bool dockMode)
	Set the widget in dock mode which tells the widget to emit panel widgets and not open dialogs.
void	setPanelTitle (const QString &panelTitle)
	Set the title of the panel when shown in the interface.
Public Member Functions inherited from QgsProcessingContextGenerator
virtual	~QgsProcessingContextGenerator ()=default

Friends
class	TestQgsProcessingModelGui

Additional Inherited Members
Public Slots inherited from QgsPanelWidget
void	acceptPanel ()
	Accept the panel.
void	openPanel (QgsPanelWidget *panel)
	Open a panel or dialog depending on dock mode setting If dock mode is `true` this method will emit the showPanel signal for connected slots to handle the open event.
Signals inherited from QgsPanelWidget
void	panelAccepted (QgsPanelWidget *panel)
	Emitted when the panel is accepted by the user.
void	showPanel (QgsPanelWidget *panel)
	Emit when you require a panel to be show in the interface.
void	widgetChanged ()
	Emitted when the widget state changes.
Static Public Member Functions inherited from QgsPanelWidget
static QgsPanelWidget *	findParentPanel (QWidget *widget)
	Traces through the parents of a widget to find if it is contained within a QgsPanelWidget widget.
Protected Member Functions inherited from QgsPanelWidget
void	keyPressEvent (QKeyEvent *event) override
	Overridden key press event to handle the esc event on the widget.

Detailed Description

A panel widget displaying the configuration for a child algorithm in a Processing model.

Note: Not available in Python bindings

Since: QGIS 4.4

Definition at line 59 of file qgsmodelchildalgorithmwidgets.h.

Constructor & Destructor Documentation

◆ QgsProcessingModelerParametersPanelWidget()

QgsProcessingModelerParametersPanelWidget::QgsProcessingModelerParametersPanelWidget	(	const QgsProcessingAlgorithm *	childAlgorithm,
		QgsProcessingModelAlgorithm *	model,
		QgsProcessingContext &	context,
		const QString &	childId = QString(),
		const QVariantMap &	configuration = QVariantMap(),
		QWidget *	parent = nullptr,
		QWidget *	dialog = nullptr )

Constructor for QgsProcessingModelerParametersPanelWidget.

Definition at line 51 of file qgsmodelchildalgorithmwidgets.cpp.

◆ ~QgsProcessingModelerParametersPanelWidget()

QgsProcessingModelerParametersPanelWidget::~QgsProcessingModelerParametersPanelWidget ( )

overridedefault

Member Function Documentation

◆ algorithm()

const QgsProcessingAlgorithm * QgsProcessingModelerParametersPanelWidget::algorithm ( ) const

Returns the algorithm associated with the widget.

Definition at line 69 of file qgsmodelchildalgorithmwidgets.cpp.

◆ createAlgorithm()

std::unique_ptr< QgsProcessingModelChildAlgorithm > QgsProcessingModelerParametersPanelWidget::createAlgorithm ( )

Creates the child algorithm instance populated with current widget values.

Definition at line 353 of file qgsmodelchildalgorithmwidgets.cpp.

◆ processingContext()

QgsProcessingContext * QgsProcessingModelerParametersPanelWidget::processingContext ( ) const

overridevirtual

This method needs to be reimplemented in all classes which implement this interface and return a Processing context.

Note: Ownership of the context is not transferred - it is intended that subclasses return a pointer to a context which they have already created and own.

Implements QgsProcessingContextGenerator.

Definition at line 484 of file qgsmodelchildalgorithmwidgets.cpp.

◆ setStateFromChildAlgorithm()

void QgsProcessingModelerParametersPanelWidget::setStateFromChildAlgorithm ( )

Sets widget state from the existing child algorithm definition in the model.

Definition at line 232 of file qgsmodelchildalgorithmwidgets.cpp.

◆ setWidgetContext()

void QgsProcessingModelerParametersPanelWidget::setWidgetContext ( const QgsProcessingParameterWidgetContext & context )

Sets the context in which the panel is shown, e.g., the parent model algorithm, a linked map canvas, and other relevant information which allows the widget to fine-tune its behavior.

Definition at line 489 of file qgsmodelchildalgorithmwidgets.cpp.

◆ TestQgsProcessingModelGui

friend class TestQgsProcessingModelGui

friend

Definition at line 123 of file qgsmodelchildalgorithmwidgets.h.

The documentation for this class was generated from the following files:

/build/qgis-4.3.0+git20260902+d57cc4a041c+99sid/src/gui/processing/models/qgsmodelchildalgorithmwidgets.h
/build/qgis-4.3.0+git20260902+d57cc4a041c+99sid/src/gui/processing/models/qgsmodelchildalgorithmwidgets.cpp
