QgsLayoutChartSeriesDetailsWidget Class Reference

A widget for editing series details for a layout chart item. More...

#include <qgslayoutchartseriesdetailswidget.h>

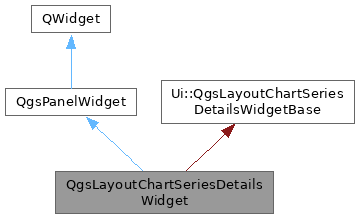

Inheritance diagram for QgsLayoutChartSeriesDetailsWidget:

Public Member Functions
	QgsLayoutChartSeriesDetailsWidget (QgsVectorLayer *layer, int index, const QgsLayoutItemChart::SeriesDetails &seriesDetails, QWidget *parent=nullptr)
	Constructor for QgsLayoutChartSeriesDetailsWidget.
QgsExpressionContext	createExpressionContext () const override
	This method needs to be reimplemented in all classes which implement this interface and return an expression context.
QString	filterExpression () const
	Returns the filter expression.
int	index () const
	Returns the series index.
void	registerExpressionContextGenerator (QgsExpressionContextGenerator *generator)
	Register an expression context generator class that will be used to retrieve an expression context for configuration widgets when required.
QString	xExpression () const
	Returns the X-axis expression.
QString	yExpression () const
	Returns the Y-axis expression.
Public Member Functions inherited from QgsPanelWidget
	QgsPanelWidget (QWidget *parent=nullptr)
	Base class for any widget that can be shown as an inline panel.
virtual bool	applySizeConstraintsToStack () const
	Returns true if the size constraints and hints for the panel widget should be applied to the parent QgsPanelWidgetStack which this panel is shown in.
bool	autoDelete () const
	The the auto delete property on the widget.
void	connectChildPanel (QgsPanelWidget *panel)
	Connect the given sub panel widgets showPanel signals to this current panels main showPanel event to bubble up to the user.
void	connectChildPanels (const QList< QgsPanelWidget * > &panels)
	Connect the given sub panel widgets showPanel signals to this current panels main showPanel event to bubble up to the user.
bool	dockMode () const
	Returns the dock mode state.
virtual QMenu *	menuButtonMenu ()
	Returns the menu to use for the menu button for this panel, or nullptr if no menu button is required.
virtual QString	menuButtonTooltip () const
	Returns the (translated) tooltip text to use for the menu button for this panel.
QString	panelTitle () const
	The title of the panel.
void	setAutoDelete (bool autoDelete)
	The the auto delete property on the widget.
virtual void	setDockMode (bool dockMode)
	Set the widget in dock mode which tells the widget to emit panel widgets and not open dialogs.
void	setPanelTitle (const QString &panelTitle)
	Set the title of the panel when shown in the interface.
Public Member Functions inherited from QgsExpressionContextGenerator
virtual	~QgsExpressionContextGenerator ()=default

Additional Inherited Members
Public Slots inherited from QgsPanelWidget
void	acceptPanel ()
	Accept the panel.
void	openPanel (QgsPanelWidget *panel)
	Open a panel or dialog depending on dock mode setting If dock mode is true this method will emit the showPanel signal for connected slots to handle the open event.
Signals inherited from QgsPanelWidget
void	panelAccepted (QgsPanelWidget *panel)
	Emitted when the panel is accepted by the user.
void	showPanel (QgsPanelWidget *panel)
	Emit when you require a panel to be show in the interface.
void	widgetChanged ()
	Emitted when the widget state changes.
Static Public Member Functions inherited from QgsPanelWidget
static QgsPanelWidget *	findParentPanel (QWidget *widget)
	Traces through the parents of a widget to find if it is contained within a QgsPanelWidget widget.
Protected Member Functions inherited from QgsPanelWidget
void	keyPressEvent (QKeyEvent *event) override
	Overridden key press event to handle the esc event on the widget.

Detailed Description

A widget for editing series details for a layout chart item.

Since

QGIS 4.0

Definition at line 36 of file qgslayoutchartseriesdetailswidget.h.

Constructor & Destructor Documentation

QgsLayoutChartSeriesDetailsWidget()

QgsLayoutChartSeriesDetailsWidget::QgsLayoutChartSeriesDetailsWidget	(	QgsVectorLayer *	layer,
		int	index,
		const QgsLayoutItemChart::SeriesDetails &	seriesDetails,
		QWidget *	parent = nullptr )

Constructor for QgsLayoutChartSeriesDetailsWidget.

Parameters

layer	the vector layer associated to the series
index	the series index
seriesDetails	the series details
parent	the parent widget

Definition at line 29 of file qgslayoutchartseriesdetailswidget.cpp.

Member Function Documentation

createExpressionContext()

QgsExpressionContext QgsLayoutChartSeriesDetailsWidget::createExpressionContext ( ) const

overridevirtual

This method needs to be reimplemented in all classes which implement this interface and return an expression context.

Implements QgsExpressionContextGenerator.

Definition at line 99 of file qgslayoutchartseriesdetailswidget.cpp.

filterExpression()

QString QgsLayoutChartSeriesDetailsWidget::filterExpression

(

)

const

Returns the filter expression.

Definition at line 69 of file qgslayoutchartseriesdetailswidget.cpp.

index()

int QgsLayoutChartSeriesDetailsWidget::index

(

)

const

Returns the series index.

Definition at line 54 of file qgslayoutchartseriesdetailswidget.cpp.

registerExpressionContextGenerator()

void QgsLayoutChartSeriesDetailsWidget::registerExpressionContextGenerator

(

QgsExpressionContextGenerator *

generator

)

Register an expression context generator class that will be used to retrieve an expression context for configuration widgets when required.

Definition at line 94 of file qgslayoutchartseriesdetailswidget.cpp.

xExpression()

QString QgsLayoutChartSeriesDetailsWidget::xExpression

(

)

const

Returns the X-axis expression.

Definition at line 59 of file qgslayoutchartseriesdetailswidget.cpp.

yExpression()

QString QgsLayoutChartSeriesDetailsWidget::yExpression

(

)

const

Returns the Y-axis expression.

Definition at line 64 of file qgslayoutchartseriesdetailswidget.cpp.

---

The documentation for this class was generated from the following files:

• /build/qgis-3.99.0+git20260301+c22de0620c0+99sid/src/gui/layout/qgslayoutchartseriesdetailswidget.h
• /build/qgis-3.99.0+git20260301+c22de0620c0+99sid/src/gui/layout/qgslayoutchartseriesdetailswidget.cpp
