Abstract class for tree models allowing for configuration of attributes forms. More...

#include <qgsattributesformmodel.h>

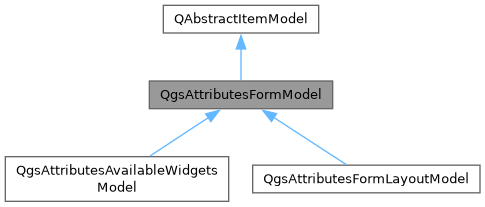

Inheritance diagram for QgsAttributesFormModel:

[legend]

Public Types
enum	ItemRoles { ItemDataRole = Qt::UserRole , ItemFieldConfigRole , ItemNameRole , ItemIdRole , ItemTypeRole , ItemDisplayRole }
	Custom model roles. More...

Public Slots
virtual void	populate ()=0
	Populates the model with initial data read from the layer.

Signals
void	fieldConfigDataChanged (QgsAttributesFormItem *item)
	Notifies other objects that the field config data has changed in the item.

Public Member Functions
	QgsAttributesFormModel (QgsVectorLayer layer, QgsProject project, QObject *parent=nullptr)
	Constructor for QgsAttributesFormModel, with the given parent.
	~QgsAttributesFormModel () override
int	columnCount (const QModelIndex &parent=QModelIndex()) const override
QModelIndex	firstRecursiveMatchingModelIndex (const QgsAttributesFormData::AttributesFormItemType &itemType, const QString &itemId) const
	Returns the first model index that matches the given itemType and itemId, recursively.
QModelIndex	firstTopMatchingModelIndex (const QgsAttributesFormData::AttributesFormItemType &itemType, const QString &itemId) const
	Returns the first top-level model index that matches the given itemType and itemId.
QModelIndex	index (int row, int column, const QModelIndex &parent=QModelIndex()) const override
QgsAttributesFormItem *	itemForIndex (const QModelIndex &index) const
	Returns the underlying item that corresponds to the given index.
QModelIndex	parent (const QModelIndex &index) const override
QgsAttributesFormItem *	rootItem () const
	Returns the root item in this model.
int	rowCount (const QModelIndex &parent=QModelIndex()) const override
bool	setData (const QModelIndex &index, const QVariant &value, int role=Qt::EditRole) override
void	setShowAliases (bool show)
	Sets whether field aliases should be preferred over field names as item text.
bool	showAliases () const
	Returns whether field aliases are preferred over field names as item text.

Protected Member Functions
void	emitDataChangedRecursively (const QModelIndex &parent=QModelIndex(), const QVector< int > &roles=QVector< int >())
	Emits dataChanged signal for all parent items in a model.
bool	indexLessThan (const QModelIndex &a, const QModelIndex &b) const
	Auxiliary function to sort indexes, returning true if index a is less than index b.
QVector< int >	rootToLeafPath (QgsAttributesFormItem *item) const
	Returns a QVector of iterative positions from root item to the given item.

Static Protected Member Functions
static QIcon	iconForItemType (QgsAttributesFormData::AttributesFormItemType itemType)
	Returns the icon used for items of the given itemType, both in the available widgets tree and in the form layout tree.

Protected Attributes
QgsVectorLayer *	mLayer
QgsProject *	mProject
std::unique_ptr< QgsAttributesFormItem >	mRootItem
bool	mShowAliases = false

Detailed Description

Abstract class for tree models allowing for configuration of attributes forms.

Warning: Not part of stable API and may change in future QGIS releases.

Since: QGIS 3.44

Definition at line 572 of file qgsattributesformmodel.h.

Member Enumeration Documentation

◆ ItemRoles

enum QgsAttributesFormModel::ItemRoles

Custom model roles.

Note: Prior to QGIS 3.44 this was available as QgsAttributesFormProperties::FieldPropertiesRoles

Since: QGIS 3.44

Enumerator
ItemDataRole	Prior to QGIS 3.44, this was available as DnDTreeRole.
ItemFieldConfigRole	Prior to QGIS 3.44, this was available as FieldConfigRole.
ItemNameRole	Prior to QGIS 3.44, this was available as FieldNameRole.
ItemIdRole	Items may have ids to ease comparison. Used by Relations, fields, actions and containers.
ItemTypeRole	Type of the item.
ItemDisplayRole	Display text for the item.

Definition at line 583 of file qgsattributesformmodel.h.

Constructor & Destructor Documentation

◆ QgsAttributesFormModel()

QgsAttributesFormModel::QgsAttributesFormModel	(	QgsVectorLayer *	layer,
		QgsProject *	project,
		QObject *	parent = nullptr )

explicit

Constructor for QgsAttributesFormModel, with the given parent.

The given layer and project are data sources to populate the model.

Definition at line 391 of file qgsattributesformmodel.cpp.

◆ ~QgsAttributesFormModel()

QgsAttributesFormModel::~QgsAttributesFormModel ( )

overridedefault

Member Function Documentation

◆ columnCount()

int QgsAttributesFormModel::columnCount ( const QModelIndex & parent = QModelIndex() ) const

override

Definition at line 426 of file qgsattributesformmodel.cpp.

◆ emitDataChangedRecursively()

void QgsAttributesFormModel::emitDataChangedRecursively	(	const QModelIndex &	parent = QModelIndex(),
		const QVector< int > &	roles = QVector<int>() )

protected

Emits dataChanged signal for all parent items in a model.

In practice, this lets views know that the whole model has changed.

Parameters

parent	Model index representing the parent item.
roles	List of roles that have changed in the model.

Definition at line 528 of file qgsattributesformmodel.cpp.

◆ fieldConfigDataChanged

void QgsAttributesFormModel::fieldConfigDataChanged ( QgsAttributesFormItem * item )

signal

Notifies other objects that the field config data has changed in the item.

Since: QGIS 4.0

◆ firstRecursiveMatchingModelIndex()

QModelIndex QgsAttributesFormModel::firstRecursiveMatchingModelIndex	(	const QgsAttributesFormData::AttributesFormItemType &	itemType,
		const QString &	itemId ) const

Returns the first model index that matches the given itemType and itemId, recursively.

If there is no matching model index in the whole hierarchy an invalid index is returned.

Definition at line 489 of file qgsattributesformmodel.cpp.

◆ firstTopMatchingModelIndex()

QModelIndex QgsAttributesFormModel::firstTopMatchingModelIndex	(	const QgsAttributesFormData::AttributesFormItemType &	itemType,
		const QString &	itemId ) const

Returns the first top-level model index that matches the given itemType and itemId.

If there is no matching top-level model index an invalid index is returned.

Definition at line 483 of file qgsattributesformmodel.cpp.

◆ iconForItemType()

QIcon QgsAttributesFormModel::iconForItemType ( QgsAttributesFormData::AttributesFormItemType itemType )

staticprotected

Returns the icon used for items of the given itemType, both in the available widgets tree and in the form layout tree.

An invalid icon is returned for item types without a fixed icon (e.g., fields, whose icon depends on their editor widget type).

Since: QGIS 4.2.1

Definition at line 541 of file qgsattributesformmodel.cpp.

◆ index()

QModelIndex QgsAttributesFormModel::index	(	int	row,
		int	column,
		const QModelIndex &	parent = QModelIndex() ) const

override

Definition at line 457 of file qgsattributesformmodel.cpp.

◆ indexLessThan()

bool QgsAttributesFormModel::indexLessThan	(	const QModelIndex &	a,
		const QModelIndex &	b ) const

protected

Auxiliary function to sort indexes, returning true if index a is less than index b.

Regardless of items depth, an index nearer to the root (imagine all items in a top-down flat list) should be returned first when sorting.

For instance, index 0-19-2 (where 0 is the grandparent position and 19 the parent position) will be less than index 1-0.

See also: rootToLeafPath()

Definition at line 431 of file qgsattributesformmodel.cpp.

◆ itemForIndex()

QgsAttributesFormItem * QgsAttributesFormModel::itemForIndex ( const QModelIndex & index ) const

Returns the underlying item that corresponds to the given index.

If the given index is not valid the root item is returned.

Definition at line 400 of file qgsattributesformmodel.cpp.

◆ parent()

QModelIndex QgsAttributesFormModel::parent ( const QModelIndex & index ) const

override

Definition at line 472 of file qgsattributesformmodel.cpp.

◆ populate

virtual void QgsAttributesFormModel::populate ( )

pure virtualslot

Populates the model with initial data read from the layer.

◆ rootItem()

QgsAttributesFormItem * QgsAttributesFormModel::rootItem ( ) const

Returns the root item in this model.

Since: QGIS 4.0

Definition at line 410 of file qgsattributesformmodel.cpp.

◆ rootToLeafPath()

QVector< int > QgsAttributesFormModel::rootToLeafPath ( QgsAttributesFormItem * item ) const

protected

Returns a QVector of iterative positions from root item to the given item.

See also: indexLessThan()

Definition at line 447 of file qgsattributesformmodel.cpp.

◆ rowCount()

int QgsAttributesFormModel::rowCount ( const QModelIndex & parent = QModelIndex() ) const

override

Definition at line 416 of file qgsattributesformmodel.cpp.

◆ setData()

bool QgsAttributesFormModel::setData	(	const QModelIndex &	index,
		const QVariant &	value,
		int	role = Qt::EditRole )

override

Definition at line 495 of file qgsattributesformmodel.cpp.

◆ setShowAliases()

void QgsAttributesFormModel::setShowAliases ( bool show )

Sets whether field aliases should be preferred over field names as item text.

See also: showAliases()

Definition at line 521 of file qgsattributesformmodel.cpp.

◆ showAliases()

bool QgsAttributesFormModel::showAliases ( ) const

Returns whether field aliases are preferred over field names as item text.

See also: setShowAliases()

Definition at line 516 of file qgsattributesformmodel.cpp.

Member Data Documentation

◆ mLayer

QgsVectorLayer* QgsAttributesFormModel::mLayer

protected

Definition at line 712 of file qgsattributesformmodel.h.

◆ mProject

QgsProject* QgsAttributesFormModel::mProject

protected

Definition at line 713 of file qgsattributesformmodel.h.

◆ mRootItem

std::unique_ptr< QgsAttributesFormItem > QgsAttributesFormModel::mRootItem

protected

Definition at line 711 of file qgsattributesformmodel.h.

◆ mShowAliases

bool QgsAttributesFormModel::mShowAliases = false

protected

Definition at line 715 of file qgsattributesformmodel.h.

The documentation for this class was generated from the following files:

/build/qgis-4.3.0+git20260721+9ff14a2eeba+99sid/src/gui/vector/qgsattributesformmodel.h
/build/qgis-4.3.0+git20260721+9ff14a2eeba+99sid/src/gui/vector/qgsattributesformmodel.cpp
