Base class for 2-dimensional plot/chart/graphs. More...

#include <qgsplot.h>

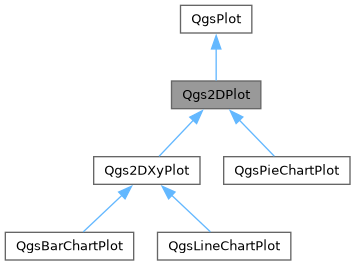

Inheritance diagram for Qgs2DPlot:

[legend]

Public Member Functions
	Qgs2DPlot ()
	Constructor for Qgs2DPlot.
	Qgs2DPlot (const Qgs2DPlot &other)=delete
	~Qgs2DPlot () override
void	copyCommonProperties (const Qgs2DPlot *other)
	Copies all Qgs2DPlot-level properties (size, margins, data-defined properties) from other to this plot.
virtual QRectF	interiorPlotArea (QgsRenderContext &context, QgsPlotRenderContext &plotContext, const QgsPlotData &plotData=QgsPlotData()) const
	Returns the area of the plot which corresponds to the actual plot content (excluding all titles and other components which sit outside the plot area).
const QgsMargins &	margins () const
	Returns the margins of the plot area (in millimeters).
Qgs2DPlot &	operator= (const Qgs2DPlot &other)=delete
bool	readXml (const QDomElement &element, const QgsReadWriteContext &context) override
	Reads the plot's properties from an XML element.
virtual void	render (QgsRenderContext &context, QgsPlotRenderContext &plotContext, const QgsPlotData &plotData=QgsPlotData())
	Renders the plot.
virtual void	renderContent (QgsRenderContext &context, QgsPlotRenderContext &plotContext, const QRectF &plotArea, const QgsPlotData &plotData=QgsPlotData())
	Renders the plot content.
void	setMargins (const QgsMargins &margins)
	Sets the margins of the plot area (in millimeters).
void	setSize (QSizeF size)
	Sets the overall size of the plot (including titles and over components which sit outside the plot area).
QSizeF	size () const
	Returns the overall size of the plot (in millimeters) (including titles and other components which sit outside the plot area).
bool	writeXml (QDomElement &element, QDomDocument &document, const QgsReadWriteContext &context) const override
	Writes the plot's properties into an XML element.
Public Member Functions inherited from QgsPlot
	QgsPlot ()=default
virtual	~QgsPlot ()
QgsPropertyCollection &	dataDefinedProperties ()
	Returns a reference to the plot's property collection, used for data defined overrides.
const QgsPropertyCollection &	dataDefinedProperties () const
	Returns a reference to the plot's property collection, used for data defined overrides.
virtual void	initFromPlot (const QgsPlot *plot)
	Initializes properties of this plot from an existing plot, transferring all applicable settings.
void	setDataDefinedProperties (const QgsPropertyCollection &collection)
	Sets the plot's property collection, used for data defined overrides.
void	setDataDefinedProperty (DataDefinedProperty key, const QgsProperty &property)
	Sets a data defined property for the plot.
virtual QString	type () const
	Returns the plot's type.

Protected Member Functions
void	applyDataDefinedProperties (QgsRenderContext &context, QgsMargins &margins) const
	Applies 2D plot data-defined properties.

Friends
class	Qgs2DXyPlot

Additional Inherited Members
Public Types inherited from QgsPlot
enum class	DataDefinedProperty : int { MarginLeft , MarginTop , MarginRight , MarginBottom , XAxisMajorInterval , XAxisMinorInterval , XAxisLabelInterval , YAxisMajorInterval , YAxisMinorInterval , YAxisLabelInterval , XAxisMinimum , XAxisMaximum , YAxisMinimum , YAxisMaximum }
	Data defined properties for different plot types. More...
Static Public Member Functions inherited from QgsPlot
static const QgsPropertiesDefinition &	propertyDefinitions ()
	Returns the plot property definitions.
Protected Attributes inherited from QgsPlot
QgsPropertyCollection	mDataDefinedProperties

Detailed Description

Base class for 2-dimensional plot/chart/graphs.

Warning: This class is not considered stable API, and may change in future!

Since: QGIS 3.26

Definition at line 584 of file qgsplot.h.

Constructor & Destructor Documentation

◆ Qgs2DPlot() [1/2]

Qgs2DPlot::Qgs2DPlot ( )

Constructor for Qgs2DPlot.

Definition at line 277 of file qgsplot.cpp.

◆ ~Qgs2DPlot()

Qgs2DPlot::~Qgs2DPlot ( )

overridedefault

◆ Qgs2DPlot() [2/2]

Qgs2DPlot::Qgs2DPlot ( const Qgs2DPlot & other )

delete

Member Function Documentation

◆ applyDataDefinedProperties()

void Qgs2DPlot::applyDataDefinedProperties	(	QgsRenderContext &	context,
		QgsMargins &	margins ) const

protected

Applies 2D plot data-defined properties.

Definition at line 348 of file qgsplot.cpp.

◆ copyCommonProperties()

void Qgs2DPlot::copyCommonProperties ( const Qgs2DPlot * other )

Copies all Qgs2DPlot-level properties (size, margins, data-defined properties) from other to this plot.

Since: QGIS 4.0

Definition at line 397 of file qgsplot.cpp.

◆ interiorPlotArea()

QRectF Qgs2DPlot::interiorPlotArea	(	QgsRenderContext &	context,
		QgsPlotRenderContext &	plotContext,
		const QgsPlotData &	plotData = QgsPlotData() ) const

virtual

Returns the area of the plot which corresponds to the actual plot content (excluding all titles and other components which sit outside the plot area).

The optional plotData argument can be passed on to support calculation of label sizes when an axis' type is categorical.

Reimplemented in Qgs2DXyPlot.

Definition at line 325 of file qgsplot.cpp.

◆ margins()

const QgsMargins & Qgs2DPlot::margins ( ) const

Returns the margins of the plot area (in millimeters).

See also: setMargins()

Definition at line 338 of file qgsplot.cpp.

◆ operator=()

Qgs2DPlot & Qgs2DPlot::operator= ( const Qgs2DPlot & other )

delete

◆ readXml()

bool Qgs2DPlot::readXml	(	const QDomElement &	element,
		const QgsReadWriteContext &	context )

overridevirtual

Reads the plot's properties from an XML element.

Reimplemented from QgsPlot.

Reimplemented in Qgs2DXyPlot, QgsBarChartPlot, QgsLineChartPlot, and QgsPieChartPlot.

Definition at line 290 of file qgsplot.cpp.

◆ render()

void Qgs2DPlot::render	(	QgsRenderContext &	context,
		QgsPlotRenderContext &	plotContext,
		const QgsPlotData &	plotData = QgsPlotData() )

virtual

Renders the plot.

Reimplemented in Qgs2DXyPlot.

Definition at line 299 of file qgsplot.cpp.

◆ renderContent()

void Qgs2DPlot::renderContent	(	QgsRenderContext &	context,
		QgsPlotRenderContext &	plotContext,
		const QRectF &	plotArea,
		const QgsPlotData &	plotData = QgsPlotData() )

virtual

Renders the plot content.

Subclasses can implement this method to render the actual plot content (e.g. bar charts, scatter plots). This method will be called after the chart background and grid are rendered, but before the chart border is rendered.

The default implementation does nothing.

The plotArea argument specifies that area of the plot which corresponds to the actual plot content. Implementations should take care to scale values accordingly to render points correctly inside this plot area.

Reimplemented in QgsBarChartPlot, QgsLineChartPlot, and QgsPieChartPlot.

Definition at line 310 of file qgsplot.cpp.

◆ setMargins()

void Qgs2DPlot::setMargins ( const QgsMargins & margins )

Sets the margins of the plot area (in millimeters).

See also: setMargins()

Definition at line 343 of file qgsplot.cpp.

◆ setSize()

void Qgs2DPlot::setSize ( QSizeF size )

Sets the overall size of the plot (including titles and over components which sit outside the plot area).

See also: size()

Definition at line 320 of file qgsplot.cpp.

◆ size()

QSizeF Qgs2DPlot::size ( ) const

Returns the overall size of the plot (in millimeters) (including titles and other components which sit outside the plot area).

See also: setSize()

Definition at line 315 of file qgsplot.cpp.

◆ writeXml()

bool Qgs2DPlot::writeXml	(	QDomElement &	element,
		QDomDocument &	document,
		const QgsReadWriteContext &	context ) const

overridevirtual

Writes the plot's properties into an XML element.

Reimplemented from QgsPlot.

Reimplemented in Qgs2DXyPlot, QgsBarChartPlot, QgsLineChartPlot, and QgsPieChartPlot.

Definition at line 281 of file qgsplot.cpp.

◆ Qgs2DXyPlot

friend class Qgs2DXyPlot

friend

Definition at line 672 of file qgsplot.h.

The documentation for this class was generated from the following files:

/build/qgis-4.0.0+99sid/src/core/plot/qgsplot.h
/build/qgis-4.0.0+99sid/src/core/plot/qgsplot.cpp
