QgsProcessingModelConfigWidget Class Reference

A panel widget that can be shown in the Processing model designer dialog for configuring part of the model. More...

#include <qgsmodeldesignerconfigwidget.h>

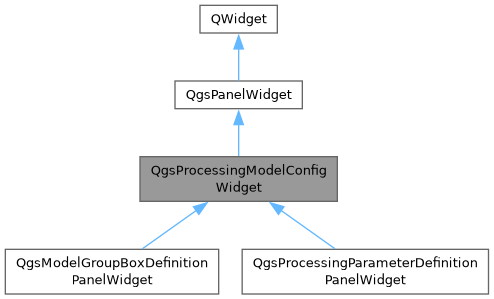

Inheritance diagram for QgsProcessingModelConfigWidget:

Public Slots
void	apply ()
	Applies the widget state to the model component.
Public Slots inherited from QgsPanelWidget
void	acceptPanel ()
	Accept the panel.
void	openPanel (QgsPanelWidget *panel)
	Open a panel or dialog depending on dock mode setting If dock mode is true this method will emit the showPanel signal for connected slots to handle the open event.

Public Member Functions
	QgsProcessingModelConfigWidget (QWidget *parent=nullptr)
	Constructor for QgsProcessingModelConfigWidget().
Public Member Functions inherited from QgsPanelWidget
	QgsPanelWidget (QWidget *parent=nullptr)
	Base class for any widget that can be shown as an inline panel.
virtual bool	applySizeConstraintsToStack () const
	Returns true if the size constraints and hints for the panel widget should be applied to the parent QgsPanelWidgetStack which this panel is shown in.
bool	autoDelete () const
	The the auto delete property on the widget.
void	connectChildPanel (QgsPanelWidget *panel)
	Connect the given sub panel widgets showPanel signals to this current panels main showPanel event to bubble up to the user.
void	connectChildPanels (const QList< QgsPanelWidget * > &panels)
	Connect the given sub panel widgets showPanel signals to this current panels main showPanel event to bubble up to the user.
bool	dockMode () const
	Returns the dock mode state.
virtual QMenu *	menuButtonMenu ()
	Returns the menu to use for the menu button for this panel, or nullptr if no menu button is required.
virtual QString	menuButtonTooltip () const
	Returns the (translated) tooltip text to use for the menu button for this panel.
QString	panelTitle () const
	The title of the panel.
void	setAutoDelete (bool autoDelete)
	The the auto delete property on the widget.
virtual void	setDockMode (bool dockMode)
	Set the widget in dock mode which tells the widget to emit panel widgets and not open dialogs.
void	setPanelTitle (const QString &panelTitle)
	Set the title of the panel when shown in the interface.

Additional Inherited Members
Signals inherited from QgsPanelWidget
void	panelAccepted (QgsPanelWidget *panel)
	Emitted when the panel is accepted by the user.
void	showPanel (QgsPanelWidget *panel)
	Emit when you require a panel to be show in the interface.
void	widgetChanged ()
	Emitted when the widget state changes.
Static Public Member Functions inherited from QgsPanelWidget
static QgsPanelWidget *	findParentPanel (QWidget *widget)
	Traces through the parents of a widget to find if it is contained within a QgsPanelWidget widget.
Protected Member Functions inherited from QgsPanelWidget
void	keyPressEvent (QKeyEvent *event) override
	Overridden key press event to handle the esc event on the widget.

Detailed Description

A panel widget that can be shown in the Processing model designer dialog for configuring part of the model.

Warning

Not stable API

Since

QGIS 4.0

Definition at line 37 of file qgsmodeldesignerconfigwidget.h.

Constructor & Destructor Documentation

QgsProcessingModelConfigWidget()

QgsProcessingModelConfigWidget::QgsProcessingModelConfigWidget

(

QWidget *

parent = nullptr

)

Constructor for QgsProcessingModelConfigWidget().

Definition at line 26 of file qgsmodeldesignerconfigwidget.cpp.

Member Function Documentation

apply

void QgsProcessingModelConfigWidget::apply ( )

slot

Applies the widget state to the model component.

Definition at line 31 of file qgsmodeldesignerconfigwidget.cpp.

---

The documentation for this class was generated from the following files:

• /build/qgis-3.99.0+git20260219+a8f284845db+99sid/src/gui/processing/models/qgsmodeldesignerconfigwidget.h
• /build/qgis-3.99.0+git20260219+a8f284845db+99sid/src/gui/processing/models/qgsmodeldesignerconfigwidget.cpp
