Map tool base class to implement extra item map tool. More...

#include <qgsmaptoolextraitem.h>

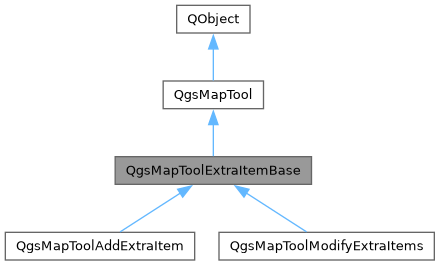

Inheritance diagram for QgsMapToolExtraItemBase:

[legend]

Public Types
enum	State { SelectFeature , FeatureSelected }
	Map tool state. More...
Public Types inherited from QgsMapTool
enum	Flag { Transient = 1 << 1 , EditTool = 1 << 2 , AllowZoomRect = 1 << 3 , ShowContextMenu = 1 << 4 }
	Enumeration of flags that adjust the way the map tool operates. More...
typedef QFlags< Flag >	Flags
enum class	PropertyStatus { Valid , DoesNotExist , CurrentExpressionInvalid }
	Property status used in method dealing with property. More...

Public Member Functions
	QgsMapToolExtraItemBase (QgsMapCanvas canvas, QgsVectorLayer layer, QgsTemplatedLineSymbolLayerBase symbolLayer, QgsPropertyOverrideButton propertyButton)
	Constructor.
Public Member Functions inherited from QgsMapTool
	~QgsMapTool () override
QAction *	action ()
	Returns associated action with map tool or `nullptr` if no action is associated.
virtual void	activate ()
	called when set as currently active map tool
QAbstractButton *	button ()
	Returns associated button with map tool or `nullptr` if no button is associated.
QgsMapCanvas *	canvas () const
	returns pointer to the tool's map canvas
virtual void	canvasDoubleClickEvent (QgsMapMouseEvent *e)
	Mouse double-click event for overriding. Default implementation does nothing.
virtual void	canvasMoveEvent (QgsMapMouseEvent *e)
	Mouse move event for overriding. Default implementation does nothing.
virtual void	canvasPressEvent (QgsMapMouseEvent *e)
	Mouse press event for overriding. Default implementation does nothing.
virtual void	canvasReleaseEvent (QgsMapMouseEvent *e)
	Mouse release event for overriding. Default implementation does nothing.
virtual bool	canvasToolTipEvent (QHelpEvent *e)
	Tooltip event for overriding.
virtual void	clean ()
	convenient method to clean members
int	dataDefinedColumnIndex (int propertyKey, const QgsPropertyCollection &properties, const QgsVectorLayer *vlayer) const
	Returns data defined property column index for the propertyKey from properties associated to the layer.
QString	dataDefinedColumnName (int propertyKey, const QgsPropertyCollection &properties, const QgsVectorLayer *layer, PropertyStatus &status) const
	Returns data defined property column name for the propertyKey from properties associated to the layer status is updated with current property status.
virtual void	deactivate ()
	called when map tool is being deactivated
virtual Flags	flags () const
	Returns the flags for the map tool.
virtual bool	gestureEvent (QGestureEvent *e)
	gesture event for overriding. Default implementation does nothing.
bool	isActive () const
	Returns if the current map tool active on the map canvas.
virtual void	keyPressEvent (QKeyEvent *e)
	Key event for overriding. Default implementation does nothing.
virtual void	keyReleaseEvent (QKeyEvent *e)
	Key event for overriding. Default implementation does nothing.
virtual void	populateContextMenu (QMenu *menu)
	Allows the tool to populate and customize the given menu, prior to showing it in response to a right-mouse button click.
virtual bool	populateContextMenuWithEvent (QMenu menu, QgsMapMouseEvent event)
	Allows the tool to populate and customize the given menu, prior to showing it in response to a right-mouse button click.
virtual void	reactivate ()
	Called when the map tool is being activated while it is already active.
void	setAction (QAction *action)
	Use this to associate a QAction to this maptool.
void	setButton (QAbstractButton *button)
	Use this to associate a button to this maptool.
virtual void	setCursor (const QCursor &cursor)
	Sets a user defined cursor.
virtual bool	shortcutEvent (QKeyEvent *e)
	Shortcut events coming from the application for overriding.
QgsPointXY	toMapCoordinates (QPoint point)
	Transforms a point from screen coordinates to map coordinates.
QString	toolName ()
	Emit map tool changed with the old tool.
virtual void	wheelEvent (QWheelEvent *e)
	Mouse wheel event for overriding. Default implementation does nothing.

Protected Member Functions
void	loadFeatureExtraItems ()
	Load current feature existing extra items.
void	selectFeature (QgsMapMouseEvent *event)
	Process event in order to select the current feature at the event mouse position.
void	updateAttribute ()
	Update feature attribute extra item field regarding with the currently digitized extra items.
Protected Member Functions inherited from QgsMapTool
	QgsMapTool (QgsMapCanvas *canvas)
	Constructor takes a map canvas as a parameter.
QgsMapLayer *	layer (const QString &id)
	Returns the map layer with the matching ID, or `nullptr` if no layers could be found.
void	setToolName (const QString &name)
	Sets the tool's name.
QPoint	toCanvasCoordinates (const QgsPointXY &point) const
	Transforms a point from map coordinates to screen coordinates.
QgsPoint	toLayerCoordinates (const QgsMapLayer *layer, const QgsPoint &point)
	Transforms a point from map coordinates to layer coordinates.
QgsPointXY	toLayerCoordinates (const QgsMapLayer *layer, const QgsPointXY &point)
	Transforms a point from map coordinates to layer coordinates.
QgsRectangle	toLayerCoordinates (const QgsMapLayer *layer, const QgsRectangle &rect)
	Transforms a rect from map coordinates to layer coordinates.
QgsPointXY	toLayerCoordinates (const QgsMapLayer *layer, QPoint point)
	Transforms a point from screen coordinates to layer coordinates.
QgsPoint	toMapCoordinates (const QgsMapLayer *layer, const QgsPoint &point)
	Transforms a point from layer coordinates to map coordinates (which is different in case reprojection is used).
QgsPointXY	toMapCoordinates (const QgsMapLayer *layer, const QgsPointXY &point)
	Transforms a point from layer coordinates to map coordinates (which is different in case reprojection is used).

Protected Attributes
std::vector< QObjectUniquePtr< QgsExtraItemRubberBand > >	mExtraItems
int	mExtraItemsFieldIndex = -1
QgsFeatureId	mFeatureId = FID_NULL
QPointer< QgsVectorLayer >	mLayer
QgsPropertyOverrideButton *	mPropertyButton = nullptr
State	mState = SelectFeature
QgsTemplatedLineSymbolLayerBase *	mSymbolLayer = nullptr
Protected Attributes inherited from QgsMapTool
QAction *	mAction = nullptr
	Optional pointer to an action that will be checked on map tool activation and unchecked on map tool deactivation.
QAbstractButton *	mButton = nullptr
	Optional pointer to a button that will be checked on map tool activation and unchecked on map tool deactivation.
QPointer< QgsMapCanvas >	mCanvas
	The pointer to the map canvas.
QCursor	mCursor
	The cursor used in the map tool.
QString	mToolName
	The translated name of the map tool.

Friends
class	TestQgsMapToolExtraItem

Additional Inherited Members
Signals inherited from QgsMapTool
void	activated ()
	Emitted when the map tool is activated.
void	deactivated ()
	Emitted when the map tool is deactivated.
void	messageDiscarded ()
	Emitted when the previous message from the tool should be cleared from the application message bar.
void	messageEmitted (const QString &message, Qgis::MessageLevel level=Qgis::MessageLevel::Info)
	Emitted when a message should be shown to the user in the application message bar.
void	reactivated ()
	Emitted when the map tool is activated, while it is already active.
Static Public Member Functions inherited from QgsMapTool
static double	searchRadiusMM ()
	Gets search radius in mm.
static double	searchRadiusMU (const QgsRenderContext &context)
	Gets search radius in map units for given context.
static double	searchRadiusMU (QgsMapCanvas *canvas)
	Gets search radius in map units for given canvas.
Static Public Attributes inherited from QgsMapTool
static const QgsSettingsEntryDouble *	settingSearchRadiusMM = new QgsSettingsEntryDouble( u"search-radius-mm"_s, QgsSettingsTree::sTreeMap, Qgis::DEFAULT_SEARCH_RADIUS_MM, u"Search/identify radius in millimeters"_s )
	Settings entry for the search/identify radius in mm.

Detailed Description

Map tool base class to implement extra item map tool.

Essentially provides helper methods to deal with extra items

Note: not available in Python bindings

Since: QGIS 4.2

Definition at line 42 of file qgsmaptoolextraitem.h.

Member Enumeration Documentation

◆ State

enum QgsMapToolExtraItemBase::State

Map tool state.

Enumerator
SelectFeature	User needs to select a feature.
FeatureSelected	User has selected a feature.

Definition at line 59 of file qgsmaptoolextraitem.h.

Constructor & Destructor Documentation

◆ QgsMapToolExtraItemBase()

QgsMapToolExtraItemBase::QgsMapToolExtraItemBase	(	QgsMapCanvas *	canvas,
		QgsVectorLayer *	layer,
		QgsTemplatedLineSymbolLayerBase *	symbolLayer,
		QgsPropertyOverrideButton *	propertyButton )

Constructor.

Parameters

canvas	map canvas
layer	vector layer
symbolLayer	symbol layer (either a marker line or hashed line symbol layer)
propertyButton	data defined property button associated with this map tool

Definition at line 91 of file qgsmaptoolextraitem.cpp.

Member Function Documentation

◆ loadFeatureExtraItems()

void QgsMapToolExtraItemBase::loadFeatureExtraItems ( )

protected

Load current feature existing extra items.

Definition at line 106 of file qgsmaptoolextraitem.cpp.

◆ selectFeature()

void QgsMapToolExtraItemBase::selectFeature ( QgsMapMouseEvent * event )

protected

Process event in order to select the current feature at the event mouse position.

Definition at line 160 of file qgsmaptoolextraitem.cpp.

◆ updateAttribute()

void QgsMapToolExtraItemBase::updateAttribute ( )

protected

Update feature attribute extra item field regarding with the currently digitized extra items.

Definition at line 134 of file qgsmaptoolextraitem.cpp.

◆ TestQgsMapToolExtraItem

friend class TestQgsMapToolExtraItem

friend

Definition at line 89 of file qgsmaptoolextraitem.h.

Member Data Documentation

◆ mExtraItems

std::vector<QObjectUniquePtr<QgsExtraItemRubberBand> > QgsMapToolExtraItemBase::mExtraItems

protected

Definition at line 86 of file qgsmaptoolextraitem.h.

◆ mExtraItemsFieldIndex

int QgsMapToolExtraItemBase::mExtraItemsFieldIndex = -1

protected

Definition at line 83 of file qgsmaptoolextraitem.h.

◆ mFeatureId

QgsFeatureId QgsMapToolExtraItemBase::mFeatureId = FID_NULL

protected

Definition at line 84 of file qgsmaptoolextraitem.h.

◆ mLayer

QPointer<QgsVectorLayer> QgsMapToolExtraItemBase::mLayer

protected

Definition at line 81 of file qgsmaptoolextraitem.h.

◆ mPropertyButton

QgsPropertyOverrideButton* QgsMapToolExtraItemBase::mPropertyButton = nullptr

protected

Definition at line 87 of file qgsmaptoolextraitem.h.

◆ mState

State QgsMapToolExtraItemBase::mState = SelectFeature

protected

Definition at line 85 of file qgsmaptoolextraitem.h.

◆ mSymbolLayer

QgsTemplatedLineSymbolLayerBase* QgsMapToolExtraItemBase::mSymbolLayer = nullptr

protected

Definition at line 82 of file qgsmaptoolextraitem.h.

The documentation for this class was generated from the following files:

/build/qgis-4.1.0+git20260518+4aad578bf8d+99sid/src/gui/maptools/qgsmaptoolextraitem.h
/build/qgis-4.1.0+git20260518+4aad578bf8d+99sid/src/gui/maptools/qgsmaptoolextraitem.cpp
