Abstract base class for material 3D handlers. More...

#include <qgsmaterial3dhandler.h>

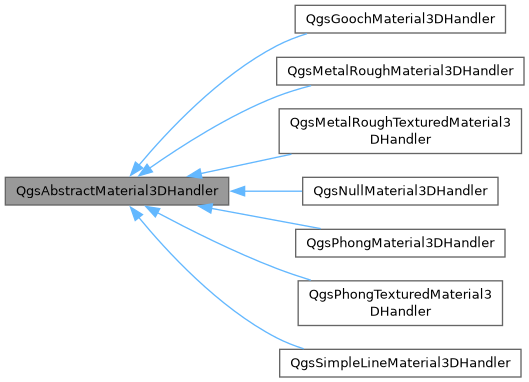

Inheritance diagram for QgsAbstractMaterial3DHandler:

[legend]

Classes
struct	PreviewMeshType
	Encapsulates information about available preview meshes. More...

Public Member Functions
virtual	~QgsAbstractMaterial3DHandler ()=default
virtual void	addParametersToEffect (Qt3DRender::QEffect effect, const QgsAbstractMaterialSettings settings, const QgsMaterialContext &materialContext) const =0
	Adds parameters from the material settings to a destination effect.
virtual void	applyDataDefinedToGeometry (const QgsAbstractMaterialSettings settings, Qt3DCore::QGeometry geometry, int vertexCount, const QByteArray &dataDefinedBytes) const
	Applies the data defined bytes, dataDefinedBytes, on the geometry by filling a specific vertex buffer that will be used by the shader.
virtual Qt3DCore::QEntity *	createPreviewMesh (const QString &type, Qt3DCore::QEntity *parent) const
	Creates a new entity representing a suitable preview mesh for this material type.
virtual Qt3DCore::QEntity *	createPreviewScene (const QgsAbstractMaterialSettings settings, const QString &type, const QgsMaterialContext &context, Qt3DExtras::Qt3DWindow window, Qt3DCore::QEntity *parent) const
	Builds a complete self-contained scene for previewing the material, using the specified mesh type.
virtual int	dataDefinedByteStride (const QgsAbstractMaterialSettings *settings) const
	Returns byte stride of the data defined colors,used to fill the vertex colors data defined buffer for rendering.
virtual QByteArray	dataDefinedVertexColorsAsByte (const QgsAbstractMaterialSettings *settings, const QgsExpressionContext &expressionContext) const
	Returns byte array corresponding to the data defined colors depending of the expressionContext, used to fill the specific vertex buffer used for rendering the geometry.
virtual QList< PreviewMeshType >	previewMeshTypes () const
	Returns a list of available preview mesh types for the material.
virtual QMap< QString, QString >	toExportParameters (const QgsAbstractMaterialSettings *settings) const =0
	Returns the parameters to be exported to .mtl file.
virtual QgsMaterial *	toMaterial (const QgsAbstractMaterialSettings *settings, Qgis::MaterialRenderingTechnique technique, const QgsMaterialContext &context) const =0
	Creates a new QgsMaterial object representing the material settings.
virtual bool	updatePreviewScene (Qt3DCore::QEntity sceneRoot, const QgsAbstractMaterialSettings settings, const QgsMaterialContext &context) const =0
	Updates an existing material preview scene with new material settings.

Static Protected Member Functions
static Qt3DRender::QParameter *	findParameter (Qt3DRender::QEffect *effect, const QString &name)
	Finds an existing parameter in an effect by name.

Detailed Description

Abstract base class for material 3D handlers.

Warning: Not available in Python bindings

Since: QGIS 4.2

Definition at line 118 of file qgsmaterial3dhandler.h.

Constructor & Destructor Documentation

◆ ~QgsAbstractMaterial3DHandler()

virtual QgsAbstractMaterial3DHandler::~QgsAbstractMaterial3DHandler ( )

virtualdefault

Member Function Documentation

◆ addParametersToEffect()

virtual void QgsAbstractMaterial3DHandler::addParametersToEffect	(	Qt3DRender::QEffect *	effect,
		const QgsAbstractMaterialSettings *	settings,
		const QgsMaterialContext &	materialContext ) const

pure virtual

Adds parameters from the material settings to a destination effect.

Implemented in QgsGoochMaterial3DHandler, QgsMetalRoughMaterial3DHandler, QgsMetalRoughTexturedMaterial3DHandler, QgsNullMaterial3DHandler, QgsPhongMaterial3DHandler, QgsPhongTexturedMaterial3DHandler, and QgsSimpleLineMaterial3DHandler.

◆ applyDataDefinedToGeometry()

void QgsAbstractMaterial3DHandler::applyDataDefinedToGeometry	(	const QgsAbstractMaterialSettings *	settings,
		Qt3DCore::QGeometry *	geometry,
		int	vertexCount,
		const QByteArray &	dataDefinedBytes ) const

virtual

Applies the data defined bytes, dataDefinedBytes, on the geometry by filling a specific vertex buffer that will be used by the shader.

Reimplemented in QgsGoochMaterial3DHandler, QgsPhongMaterial3DHandler, and QgsSimpleLineMaterial3DHandler.

Definition at line 38 of file qgsmaterial3dhandler.cpp.

◆ createPreviewMesh()

Qt3DCore::QEntity * QgsAbstractMaterial3DHandler::createPreviewMesh	(	const QString &	type,
		Qt3DCore::QEntity *	parent ) const

virtual

Creates a new entity representing a suitable preview mesh for this material type.

The default implementation returns a sphere. This method can be overridden to provide more appropriate meshes when applicable for a particular material implementation.

Ownership of the returned entity resides with the parent entity.

Reimplemented in QgsSimpleLineMaterial3DHandler.

Definition at line 95 of file qgsmaterial3dhandler.cpp.

◆ createPreviewScene()

Qt3DCore::QEntity * QgsAbstractMaterial3DHandler::createPreviewScene	(	const QgsAbstractMaterialSettings *	settings,
		const QString &	type,
		const QgsMaterialContext &	context,
		Qt3DExtras::Qt3DWindow *	window,
		Qt3DCore::QEntity *	parent ) const

virtual

Builds a complete self-contained scene for previewing the material, using the specified mesh type.

The scene contains a mesh with the associated material applied, and appropriate lighting.

The returned entity is the scene root, parented to parent.

This method can be overridden to customize the lighting or mesh for a specific material.

Reimplemented in QgsSimpleLineMaterial3DHandler.

Definition at line 135 of file qgsmaterial3dhandler.cpp.

◆ dataDefinedByteStride()

int QgsAbstractMaterial3DHandler::dataDefinedByteStride ( const QgsAbstractMaterialSettings * settings ) const

virtual

Returns byte stride of the data defined colors,used to fill the vertex colors data defined buffer for rendering.

Since: QGIS 3.18

Reimplemented in QgsGoochMaterial3DHandler, and QgsPhongMaterial3DHandler.

Definition at line 46 of file qgsmaterial3dhandler.cpp.

◆ dataDefinedVertexColorsAsByte()

QByteArray QgsAbstractMaterial3DHandler::dataDefinedVertexColorsAsByte	(	const QgsAbstractMaterialSettings *	settings,
		const QgsExpressionContext &	expressionContext ) const

virtual

Returns byte array corresponding to the data defined colors depending of the expressionContext, used to fill the specific vertex buffer used for rendering the geometry.

See also: applyDataDefinedToGeometry()

Since: QGIS 3.18

Reimplemented in QgsGoochMaterial3DHandler, QgsPhongMaterial3DHandler, and QgsSimpleLineMaterial3DHandler.

Definition at line 31 of file qgsmaterial3dhandler.cpp.

◆ findParameter()

Qt3DRender::QParameter * QgsAbstractMaterial3DHandler::findParameter	(	Qt3DRender::QEffect *	effect,
		const QString &	name )

staticprotected

Finds an existing parameter in an effect by name.

This method searches both parameters which are directly applied effect and also parameters applied to all techniques present in the effect.

Definition at line 68 of file qgsmaterial3dhandler.cpp.

◆ previewMeshTypes()

QList< QgsAbstractMaterial3DHandler::PreviewMeshType > QgsAbstractMaterial3DHandler::previewMeshTypes ( ) const

virtual

Returns a list of available preview mesh types for the material.

Reimplemented in QgsSimpleLineMaterial3DHandler.

Definition at line 51 of file qgsmaterial3dhandler.cpp.

◆ toExportParameters()

virtual QMap< QString, QString > QgsAbstractMaterial3DHandler::toExportParameters ( const QgsAbstractMaterialSettings * settings ) const

pure virtual

Returns the parameters to be exported to .mtl file.

Implemented in QgsGoochMaterial3DHandler, QgsMetalRoughMaterial3DHandler, QgsMetalRoughTexturedMaterial3DHandler, QgsNullMaterial3DHandler, QgsPhongMaterial3DHandler, QgsPhongTexturedMaterial3DHandler, and QgsSimpleLineMaterial3DHandler.

◆ toMaterial()

virtual QgsMaterial * QgsAbstractMaterial3DHandler::toMaterial	(	const QgsAbstractMaterialSettings *	settings,
		Qgis::MaterialRenderingTechnique	technique,
		const QgsMaterialContext &	context ) const

pure virtual

Creates a new QgsMaterial object representing the material settings.

The technique argument specifies the rendering technique which will be used with the returned material.

Implemented in QgsGoochMaterial3DHandler, QgsMetalRoughMaterial3DHandler, QgsMetalRoughTexturedMaterial3DHandler, QgsNullMaterial3DHandler, QgsPhongMaterial3DHandler, QgsPhongTexturedMaterial3DHandler, and QgsSimpleLineMaterial3DHandler.

◆ updatePreviewScene()

virtual bool QgsAbstractMaterial3DHandler::updatePreviewScene	(	Qt3DCore::QEntity *	sceneRoot,
		const QgsAbstractMaterialSettings *	settings,
		const QgsMaterialContext &	context ) const

pure virtual

Updates an existing material preview scene with new material settings.

This method is called on every material setting parameter change while configuring materials, so the implementation must be cheap (e.g. involve no entity creation, just direct manipulation of existing attributes).

Returns false if the scene could not be updated in place and needs to be regenered via createPreviewScene().

Implemented in QgsGoochMaterial3DHandler, QgsMetalRoughMaterial3DHandler, QgsMetalRoughTexturedMaterial3DHandler, QgsNullMaterial3DHandler, QgsPhongMaterial3DHandler, QgsPhongTexturedMaterial3DHandler, and QgsSimpleLineMaterial3DHandler.

The documentation for this class was generated from the following files:

/build/qgis-4.1.0+git20260419+3b8ef1f72a3+99sid/src/3d/materials/qgsmaterial3dhandler.h
/build/qgis-4.1.0+git20260419+3b8ef1f72a3+99sid/src/3d/materials/qgsmaterial3dhandler.cpp
