QgsAbstractProfileSurfaceGenerator Class Reference

Abstract base class for objects which generate elevation profiles which represent a continuous surface (e.g. More...

#include <qgsabstractprofilesurfacegenerator.h>

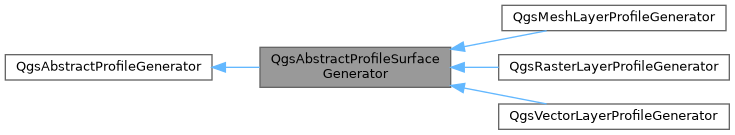

Inheritance diagram for QgsAbstractProfileSurfaceGenerator:

Public Member Functions
	QgsAbstractProfileSurfaceGenerator (const QgsProfileRequest &request)
	Constructor for QgsAbstractProfileSurfaceGenerator.
	~QgsAbstractProfileSurfaceGenerator () override
double	elevationLimit () const
	Returns the elevation limit, which is used when symbology() is Qgis::ProfileSurfaceSymbology::FillBelow or Qgis::ProfileSurfaceSymbology::FillAbove to limit the fill to a specific elevation range.
QgsFillSymbol *	fillSymbol () const
	Returns the fill symbol to be used for rendering the results.
QgsLineSymbol *	lineSymbol () const
	Returns the line symbol to be used for rendering the results.
void	setElevationLimit (double limit)
	Sets the elevation limit, which is used when symbology() is Qgis::ProfileSurfaceSymbology::FillBelow or Qgis::ProfileSurfaceSymbology::FillAbove to limit the fill to a specific elevation range.
Qgis::ProfileSurfaceSymbology	symbology () const
	Returns the symbology type for rendering the results.
Public Member Functions inherited from QgsAbstractProfileGenerator
virtual	~QgsAbstractProfileGenerator ()
virtual QgsFeedback *	feedback () const =0
	Access to feedback object of the generator (may be nullptr)
virtual Qgis::ProfileGeneratorFlags	flags () const
	Returns flags which reflect how the profile generator operates.
virtual bool	generateProfile (const QgsProfileGenerationContext &context=QgsProfileGenerationContext())=0
	Generate the profile (based on data stored in the class).
virtual QString	sourceId () const =0
	Returns a unique identifier representing the source of the profile.
virtual QgsAbstractProfileResults *	takeResults ()=0
	Takes results from the generator.

Protected Attributes
double	mElevationLimit = std::numeric_limits< double >::quiet_NaN()
std::unique_ptr< QgsFillSymbol >	mFillSymbol
std::unique_ptr< QgsLineSymbol >	mLineSymbol
std::unique_ptr< QgsCurve >	mProfileCurve
Qgis::ProfileSurfaceSymbology	mSymbology = Qgis::ProfileSurfaceSymbology::Line

Friends
class	QgsAbstractProfileSurfaceResults

Detailed Description

Abstract base class for objects which generate elevation profiles which represent a continuous surface (e.g.

mesh layers and raster layers).

Note

Not available in Python bindings

Since

QGIS 3.26

Definition at line 77 of file qgsabstractprofilesurfacegenerator.h.

Constructor & Destructor Documentation

QgsAbstractProfileSurfaceGenerator()

QgsAbstractProfileSurfaceGenerator::QgsAbstractProfileSurfaceGenerator

(

const QgsProfileRequest &

request

)

Constructor for QgsAbstractProfileSurfaceGenerator.

Definition at line 381 of file qgsabstractprofilesurfacegenerator.cpp.

~QgsAbstractProfileSurfaceGenerator()

QgsAbstractProfileSurfaceGenerator::~QgsAbstractProfileSurfaceGenerator ( )

overridedefault

Member Function Documentation

elevationLimit()

double QgsAbstractProfileSurfaceGenerator::elevationLimit

(

)

const

Returns the elevation limit, which is used when symbology() is Qgis::ProfileSurfaceSymbology::FillBelow or Qgis::ProfileSurfaceSymbology::FillAbove to limit the fill to a specific elevation range.

By default this is NaN, which indicates that there is no elevation limit.

See also

setElevationLimit()

Since

QGIS 3.32

Definition at line 404 of file qgsabstractprofilesurfacegenerator.cpp.

fillSymbol()

QgsFillSymbol * QgsAbstractProfileSurfaceGenerator::fillSymbol

(

)

const

Returns the fill symbol to be used for rendering the results.

Definition at line 399 of file qgsabstractprofilesurfacegenerator.cpp.

lineSymbol()

QgsLineSymbol * QgsAbstractProfileSurfaceGenerator::lineSymbol

(

)

const

Returns the line symbol to be used for rendering the results.

Definition at line 394 of file qgsabstractprofilesurfacegenerator.cpp.

setElevationLimit()

void QgsAbstractProfileSurfaceGenerator::setElevationLimit

(

double

limit

)

Sets the elevation limit, which is used when symbology() is Qgis::ProfileSurfaceSymbology::FillBelow or Qgis::ProfileSurfaceSymbology::FillAbove to limit the fill to a specific elevation range.

Set to NaN to indicate that there is no elevation limit.

See also

elevationLimit()

Since

QGIS 3.32

Definition at line 409 of file qgsabstractprofilesurfacegenerator.cpp.

symbology()

Qgis::ProfileSurfaceSymbology QgsAbstractProfileSurfaceGenerator::symbology

(

)

const

Returns the symbology type for rendering the results.

Definition at line 389 of file qgsabstractprofilesurfacegenerator.cpp.

Friends And Related Symbol Documentation

QgsAbstractProfileSurfaceResults

friend class QgsAbstractProfileSurfaceResults

friend

Definition at line 136 of file qgsabstractprofilesurfacegenerator.h.

Member Data Documentation

mElevationLimit

double QgsAbstractProfileSurfaceGenerator::mElevationLimit = std::numeric_limits< double >::quiet_NaN()

protected

Definition at line 132 of file qgsabstractprofilesurfacegenerator.h.

mFillSymbol

std::unique_ptr< QgsFillSymbol > QgsAbstractProfileSurfaceGenerator::mFillSymbol

protected

Definition at line 131 of file qgsabstractprofilesurfacegenerator.h.

mLineSymbol

std::unique_ptr< QgsLineSymbol > QgsAbstractProfileSurfaceGenerator::mLineSymbol

protected

Definition at line 130 of file qgsabstractprofilesurfacegenerator.h.

mProfileCurve

std::unique_ptr< QgsCurve > QgsAbstractProfileSurfaceGenerator::mProfileCurve

protected

Definition at line 134 of file qgsabstractprofilesurfacegenerator.h.

mSymbology

Qgis::ProfileSurfaceSymbology QgsAbstractProfileSurfaceGenerator::mSymbology = Qgis::ProfileSurfaceSymbology::Line

protected

Definition at line 129 of file qgsabstractprofilesurfacegenerator.h.

---

The documentation for this class was generated from the following files:

• /build/qgis-3.44.0+99sid/src/core/elevation/qgsabstractprofilesurfacegenerator.h
• /build/qgis-3.44.0+99sid/src/core/elevation/qgsabstractprofilesurfacegenerator.cpp
