Surface geometry type. More...

#include <qgssurface.h>

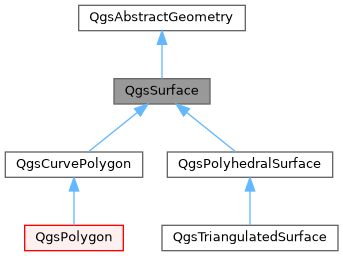

Inheritance diagram for QgsSurface:

[legend]

Public Member Functions
QgsBox3D	boundingBox3D () const override
	Returns the 3D bounding box for the geometry.

bool	isValid (QString &error, Qgis::GeometryValidityFlags flags=Qgis::GeometryValidityFlags()) const override
	Checks validity of the geometry, and returns `true` if the geometry is valid.

Public Member Functions inherited from QgsAbstractGeometry
	QgsAbstractGeometry ()=default

	QgsAbstractGeometry (const QgsAbstractGeometry &geom)

virtual	~QgsAbstractGeometry ()=default

virtual bool	addMValue (double mValue=0)=0
	Adds a measure to the geometry, initialized to a preset value.

virtual bool	addZValue (double zValue=0)=0
	Adds a z-dimension to the geometry, initialized to a preset value.

virtual void	adjacentVertices (QgsVertexId vertex, QgsVertexId &previousVertex, QgsVertexId &nextVertex) const =0
	Returns the vertices adjacent to a specified vertex within a geometry.

virtual double	area () const
	Returns the planar, 2-dimensional area of the geometry.

virtual QDomElement	asGml2 (QDomDocument &doc, int precision=17, const QString &ns="gml", AxisOrder axisOrder=QgsAbstractGeometry::AxisOrder::XY) const =0
	Returns a GML2 representation of the geometry.

virtual QDomElement	asGml3 (QDomDocument &doc, int precision=17, const QString &ns="gml", AxisOrder axisOrder=QgsAbstractGeometry::AxisOrder::XY) const =0
	Returns a GML3 representation of the geometry.

QString	asJson (int precision=17)
	Returns a GeoJSON representation of the geometry as a QString.

virtual json	asJsonObject (int precision=17) const
	Returns a json object representation of the geometry.

virtual QString	asKml (int precision=17) const =0
	Returns a KML representation of the geometry.

virtual QPainterPath	asQPainterPath () const =0
	Returns the geometry represented as a QPainterPath.

virtual QByteArray	asWkb (WkbFlags flags=QgsAbstractGeometry::WkbFlags()) const =0
	Returns a WKB representation of the geometry.

virtual QString	asWkt (int precision=17) const =0
	Returns a WKT representation of the geometry.

virtual QgsAbstractGeometry *	boundary () const =0
	Returns the closure of the combinatorial boundary of the geometry (ie the topological boundary of the geometry).

virtual QgsRectangle	boundingBox () const
	Returns the minimal bounding box for the geometry.

virtual bool	boundingBoxIntersects (const QgsBox3D &box3d) const
	Returns `true` if the bounding box of this geometry intersects with a box3d.

virtual bool	boundingBoxIntersects (const QgsRectangle &rectangle) const
	Returns `true` if the bounding box of this geometry intersects with a rectangle.

virtual QgsPoint	centroid () const
	Returns the centroid of the geometry.

virtual void	clear ()=0
	Clears the geometry, ie reset it to a null geometry.

virtual QgsAbstractGeometry *	clone () const =0
	Clones the geometry by performing a deep copy.

virtual double	closestSegment (const QgsPoint &pt, QgsPoint &segmentPt, QgsVertexId &vertexAfter, int leftOf=nullptr, double epsilon=4 std::numeric_limits< double >::epsilon()) const =0
	Searches for the closest segment of the geometry to a given point.

virtual int	compareTo (const QgsAbstractGeometry *other) const
	Comparator for sorting of geometry.

const_part_iterator	const_parts_begin () const
	Returns STL-style iterator pointing to the const first part of the geometry.

const_part_iterator	const_parts_end () const
	Returns STL-style iterator pointing to the imaginary const part after the last part of the geometry.

virtual bool	convertTo (Qgis::WkbType type)
	Converts the geometry to a specified type.

virtual QgsCoordinateSequence	coordinateSequence () const =0
	Retrieves the sequence of geometries, rings and nodes.

virtual QgsAbstractGeometry *	createEmptyWithSameType () const =0
	Creates a new geometry with the same class and same WKB type as the original and transfers ownership.

virtual bool	deleteVertex (QgsVertexId position)=0
	Deletes a vertex within the geometry.

virtual int	dimension () const =0
	Returns the inherent dimension of the geometry.

virtual void	draw (QPainter &p) const =0
	Draws the geometry using the specified QPainter.

virtual bool	dropMValue ()=0
	Drops any measure values which exist in the geometry.

virtual bool	dropZValue ()=0
	Drops any z-dimensions which exist in the geometry.

virtual void	filterVertices (const std::function< bool(const QgsPoint &) > &filter)
	Filters the vertices from the geometry in place, removing any which do not return `true` for the filter function check.

virtual bool	fromWkb (QgsConstWkbPtr &wkb)=0
	Sets the geometry from a WKB string.

virtual bool	fromWkt (const QString &wkt)=0
	Sets the geometry from a WKT string.

virtual bool	fuzzyDistanceEqual (const QgsAbstractGeometry &other, double epsilon=1e-8) const =0
	Performs fuzzy distance comparison between this geometry and other using an epsilon.

virtual bool	fuzzyEqual (const QgsAbstractGeometry &other, double epsilon=1e-8) const =0
	Performs fuzzy comparison between this geometry and other using an epsilon.

virtual QString	geometryType () const =0
	Returns a unique string representing the geometry type.

virtual bool	hasCurvedSegments () const
	Returns `true` if the geometry contains curved segments.

virtual bool	insertVertex (QgsVertexId position, const QgsPoint &vertex)=0
	Inserts a vertex into the geometry.

bool	is3D () const
	Returns `true` if the geometry is 3D and contains a z-value.

virtual bool	isEmpty () const
	Returns `true` if the geometry is empty.

bool	isMeasure () const
	Returns `true` if the geometry contains m values.

virtual double	length () const
	Returns the planar, 2-dimensional length of the geometry.

virtual bool	moveVertex (QgsVertexId position, const QgsPoint &newPos)=0
	Moves a vertex within the geometry.

virtual int	nCoordinates () const
	Returns the number of nodes contained in the geometry.

virtual bool	nextVertex (QgsVertexId &id, QgsPoint &vertex) const =0
	Returns next vertex id and coordinates.

virtual void	normalize ()=0
	Reorganizes the geometry into a normalized form (or "canonical" form).

virtual bool	operator!= (const QgsAbstractGeometry &other) const =0

QgsAbstractGeometry &	operator= (const QgsAbstractGeometry &geom)

virtual bool	operator== (const QgsAbstractGeometry &other) const =0

virtual int	partCount () const =0
	Returns count of parts contained in the geometry.

QgsGeometryPartIterator	parts ()
	Returns Java-style iterator for traversal of parts of the geometry.

QgsGeometryConstPartIterator	parts () const
	Returns Java-style iterator for traversal of parts of the geometry.

part_iterator	parts_begin ()
	Returns STL-style iterator pointing to the first part of the geometry.

part_iterator	parts_end ()
	Returns STL-style iterator pointing to the imaginary part after the last part of the geometry.

virtual double	perimeter () const
	Returns the planar, 2-dimensional perimeter of the geometry.

virtual bool	removeDuplicateNodes (double epsilon=4 *std::numeric_limits< double >::epsilon(), bool useZValues=false)=0
	Removes duplicate nodes from the geometry, wherever removing the nodes does not result in a degenerate geometry.

virtual int	ringCount (int part=0) const =0
	Returns the number of rings of which this geometry is built.

virtual QgsAbstractGeometry *	segmentize (double tolerance=M_PI/180., SegmentationToleranceType toleranceType=MaximumAngle) const
	Returns a version of the geometry without curves.

virtual double	segmentLength (QgsVertexId startVertex) const =0
	Returns the length of the segment of the geometry which begins at startVertex.

virtual const QgsAbstractGeometry *	simplifiedTypeRef () const
	Returns a reference to the simplest lossless representation of this geometry, e.g.

virtual QgsAbstractGeometry *	simplifyByDistance (double tolerance) const =0
	Simplifies the geometry by applying the Douglas Peucker simplification by distance algorithm.

virtual QgsAbstractGeometry *	snappedToGrid (double hSpacing, double vSpacing, double dSpacing=0, double mSpacing=0, bool removeRedundantPoints=false) const =0
	Makes a new geometry with all the points or vertices snapped to the closest point of the grid.

virtual void	swapXy ()=0
	Swaps the x and y coordinates from the geometry.

virtual QgsAbstractGeometry *	toCurveType () const =0
	Returns the geometry converted to the more generic curve type.

virtual void	transform (const QgsCoordinateTransform &ct, Qgis::TransformDirection d=Qgis::TransformDirection::Forward, bool transformZ=false)=0
	Transforms the geometry using a coordinate transform.

virtual void	transform (const QTransform &t, double zTranslate=0.0, double zScale=1.0, double mTranslate=0.0, double mScale=1.0)=0
	Transforms the x and y components of the geometry using a QTransform object t.

virtual bool	transform (QgsAbstractGeometryTransformer transformer, QgsFeedback feedback=nullptr)=0
	Transforms the vertices from the geometry in place, using the specified geometry transformer object.

virtual void	transformVertices (const std::function< QgsPoint(const QgsPoint &) > &transform)
	Transforms the vertices from the geometry in place, applying the transform function to every vertex.

virtual double	vertexAngle (QgsVertexId vertex) const =0
	Returns approximate angle at a vertex.

virtual QgsPoint	vertexAt (QgsVertexId id) const =0
	Returns the point corresponding to a specified vertex id.

virtual int	vertexCount (int part=0, int ring=0) const =0
	Returns the number of vertices of which this geometry is built.

virtual int	vertexNumberFromVertexId (QgsVertexId id) const =0
	Returns the vertex number corresponding to a vertex id.

QgsVertexIterator	vertices () const
	Returns a read-only, Java-style iterator for traversal of vertices of all the geometry, including all geometry parts and rings.

vertex_iterator	vertices_begin () const
	Returns STL-style iterator pointing to the first vertex of the geometry.

vertex_iterator	vertices_end () const
	Returns STL-style iterator pointing to the imaginary vertex after the last vertex of the geometry.

virtual int	wkbSize (QgsAbstractGeometry::WkbFlags flags=QgsAbstractGeometry::WkbFlags()) const =0
	Returns the length of the QByteArray returned by asWkb()

Qgis::WkbType	wkbType () const
	Returns the WKB type of the geometry.

QString	wktTypeStr () const
	Returns the WKT type string of the geometry.

Static Public Member Functions
static const QgsSurface *	cast (const QgsAbstractGeometry *geom)
	Cast the geom to a QgsSurface.

Protected Member Functions
void	clearCache () const override
	Clears any cached parameters associated with the geometry, e.g., bounding boxes.

Protected Member Functions inherited from QgsAbstractGeometry
virtual QgsRectangle	calculateBoundingBox () const
	Default calculator for the minimal bounding box for the geometry.

virtual QgsBox3D	calculateBoundingBox3D () const
	Calculates the minimal 3D bounding box for the geometry.

virtual int	childCount () const
	Returns number of child geometries (for geometries with child geometries) or child points (for geometries without child geometries - i.e.

virtual QgsAbstractGeometry *	childGeometry (int index) const
	Returns pointer to child geometry (for geometries with child geometries - i.e.

virtual QgsPoint	childPoint (int index) const
	Returns point at index (for geometries without child geometries - i.e.

virtual int	compareToSameClass (const QgsAbstractGeometry *other) const =0
	Compares to an other geometry of the same class, and returns a integer for sorting of the two geometries.

virtual bool	hasChildGeometries () const
	Returns whether the geometry has any child geometries (`false` for point / curve, `true` otherwise)

void	setZMTypeFromSubGeometry (const QgsAbstractGeometry *subggeom, Qgis::WkbType baseGeomType)
	Updates the geometry type based on whether sub geometries contain z or m values.

int	sortIndex () const
	Returns the sort index for the geometry, used in the compareTo() method to compare geometries of different types.

Protected Attributes
QgsBox3D	mBoundingBox

bool	mHasCachedValidity = false

QString	mValidityFailureReason

Protected Attributes inherited from QgsAbstractGeometry
Qgis::WkbType	mWkbType = Qgis::WkbType::Unknown

Additional Inherited Members
Public Types inherited from QgsAbstractGeometry
enum	AxisOrder { XY = 0 , YX }
	Axis order for GML generation. More...

enum	SegmentationToleranceType { MaximumAngle = 0 , MaximumDifference }
	Segmentation tolerance as maximum angle or maximum difference between approximation and circle. More...

enum	WkbFlag { FlagExportTrianglesAsPolygons = 1 << 0 , FlagExportNanAsDoubleMin = 1 << 1 }
	WKB export flags. More...

typedef QFlags< WkbFlag >	WkbFlags

Detailed Description

Surface geometry type.

Definition at line 33 of file qgssurface.h.

Member Function Documentation

◆ boundingBox3D()

QgsBox3D QgsSurface::boundingBox3D ( ) const

inlineoverridevirtual

Returns the 3D bounding box for the geometry.

Since: QGIS 3.34

Implements QgsAbstractGeometry.

Definition at line 37 of file qgssurface.h.

◆ cast()

static const QgsSurface * QgsSurface::cast ( const QgsAbstractGeometry * geom )

inlinestatic

Cast the geom to a QgsSurface.

Should be used by qgsgeometry_cast<QgsSurface *>( geometry ).

Note: Not available in Python. Objects will be automatically be converted to the appropriate target type.

Definition at line 57 of file qgssurface.h.

◆ clearCache()

void QgsSurface::clearCache ( ) const

overrideprotectedvirtual

Clears any cached parameters associated with the geometry, e.g., bounding boxes.

Reimplemented from QgsAbstractGeometry.

Definition at line 43 of file qgssurface.cpp.

◆ isValid()

bool QgsSurface::isValid	(	QString &	error,
		Qgis::GeometryValidityFlags	flags = `Qgis::GeometryValidityFlags()`
	)		const

overridevirtual

Checks validity of the geometry, and returns true if the geometry is valid.

Parameters

error	will be set to the validity error message
flags	indicates optional flags which control the type of validity checking performed (corresponding to Qgis::GeometryValidityFlags).

Returns: true if geometry is valid

Since: QGIS 3.8

Implements QgsAbstractGeometry.

Definition at line 24 of file qgssurface.cpp.

Member Data Documentation

◆ mBoundingBox

QgsBox3D QgsSurface::mBoundingBox

mutableprotected

Definition at line 74 of file qgssurface.h.

◆ mHasCachedValidity

bool QgsSurface::mHasCachedValidity = false

mutableprotected

Definition at line 75 of file qgssurface.h.

◆ mValidityFailureReason

QString QgsSurface::mValidityFailureReason

mutableprotected

Definition at line 76 of file qgssurface.h.

The documentation for this class was generated from the following files:

/build/qgis-3.42.0+99sid/src/core/geometry/qgssurface.h
/build/qgis-3.42.0+99sid/src/core/geometry/qgssurface.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ boundingBox3D()

◆ cast()

◆ clearCache()

◆ isValid()

Member Data Documentation

◆ mBoundingBox

◆ mHasCachedValidity

◆ mValidityFailureReason
