A widget for setup of the scalar dataset renderer settings of a mesh layer. More...

#include <qgsmeshrendererscalarsettingswidget.h>

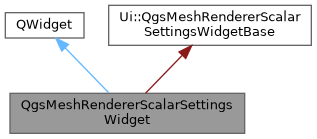

Inheritance diagram for QgsMeshRendererScalarSettingsWidget:

[legend]

Signals
void	widgetChanged ()
	Mesh rendering settings changed.

Public Member Functions
	QgsMeshRendererScalarSettingsWidget (QWidget *parent=nullptr)
	A widget to hold the renderer scalar settings for a mesh layer.

void	setActiveDatasetGroup (int groupIndex)
	Associates a dataset group with the widget (should be set before syncToLayer())

void	setCanvas (QgsMapCanvas *canvas)
	Associates map canvas with the widget.

void	setLayer (QgsMeshLayer *layer)
	Associates mesh layer with the widget.

QgsMeshRendererScalarSettings	settings () const
	Returns scalar settings.

void	syncToLayer ()
	Synchronizes widgets state with associated mesh layer.

Detailed Description

A widget for setup of the scalar dataset renderer settings of a mesh layer.

The layer must be connected and an active dataset must be selected.

Definition at line 38 of file qgsmeshrendererscalarsettingswidget.h.

Constructor & Destructor Documentation

◆ QgsMeshRendererScalarSettingsWidget()

QgsMeshRendererScalarSettingsWidget::QgsMeshRendererScalarSettingsWidget ( QWidget * parent = nullptr )

A widget to hold the renderer scalar settings for a mesh layer.

Parameters

parent Parent object

Definition at line 28 of file qgsmeshrendererscalarsettingswidget.cpp.

Member Function Documentation

◆ setActiveDatasetGroup()

void QgsMeshRendererScalarSettingsWidget::setActiveDatasetGroup ( int groupIndex )

Associates a dataset group with the widget (should be set before syncToLayer())

Definition at line 93 of file qgsmeshrendererscalarsettingswidget.cpp.

◆ setCanvas()

void QgsMeshRendererScalarSettingsWidget::setCanvas ( QgsMapCanvas * canvas )

Associates map canvas with the widget.

Definition at line 268 of file qgsmeshrendererscalarsettingswidget.cpp.

◆ setLayer()

void QgsMeshRendererScalarSettingsWidget::setLayer ( QgsMeshLayer * layer )

Associates mesh layer with the widget.

Definition at line 87 of file qgsmeshrendererscalarsettingswidget.cpp.

◆ settings()

QgsMeshRendererScalarSettings QgsMeshRendererScalarSettingsWidget::settings ( ) const

Returns scalar settings.

Definition at line 99 of file qgsmeshrendererscalarsettingswidget.cpp.

◆ syncToLayer()

void QgsMeshRendererScalarSettingsWidget::syncToLayer ( )

Synchronizes widgets state with associated mesh layer.

Definition at line 132 of file qgsmeshrendererscalarsettingswidget.cpp.

◆ widgetChanged

void QgsMeshRendererScalarSettingsWidget::widgetChanged ( )

signal

Mesh rendering settings changed.

The documentation for this class was generated from the following files:

/build/qgis-3.42.0+99sid/src/gui/mesh/qgsmeshrendererscalarsettingswidget.h
/build/qgis-3.42.0+99sid/src/gui/mesh/qgsmeshrendererscalarsettingswidget.cpp
