QgsCptCityColorRampDialog Class Reference

A dialog which allows users to modify the properties of a QgsCptCityColorRamp. More...

#include <qgscptcitycolorrampdialog.h>

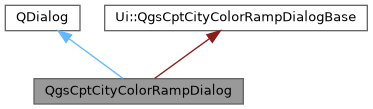

Inheritance diagram for QgsCptCityColorRampDialog:

Signals
void	changed ()
	Emitted when the dialog settings change.

Public Member Functions
	QgsCptCityColorRampDialog (const QgsCptCityColorRamp &ramp, QWidget *parent=nullptr)
	Constructor for QgsCptCityColorRampDialog.
QDialogButtonBox *	buttonBox () const
	Returns a reference to the dialog's button box.
bool	eventFilter (QObject *obj, QEvent *event) override
QgsCptCityColorRamp	ramp () const
	Returns a color ramp representing the current settings from the dialog.
bool	saveAsGradientRamp () const
	Returns true if the ramp should be converted to a QgsGradientColorRamp.
QString	selectedName () const
	Returns the name of the ramp currently selected in the dialog.
void	setRamp (const QgsCptCityColorRamp &ramp)
	Sets the color ramp to show in the dialog.

Properties
QgsCptCityColorRamp	ramp

Detailed Description

A dialog which allows users to modify the properties of a QgsCptCityColorRamp.

Definition at line 41 of file qgscptcitycolorrampdialog.h.

Constructor & Destructor Documentation

QgsCptCityColorRampDialog()

QgsCptCityColorRampDialog::QgsCptCityColorRampDialog	(	const QgsCptCityColorRamp &	ramp,
		QWidget *	parent = nullptr
	)

Constructor for QgsCptCityColorRampDialog.

Parameters

ramp	initial ramp to show in dialog
parent	parent widget

Definition at line 41 of file qgscptcitycolorrampdialog.cpp.

Member Function Documentation

buttonBox()

QDialogButtonBox * QgsCptCityColorRampDialog::buttonBox

(

)

const

Returns a reference to the dialog's button box.

Since

QGIS 3.10

Definition at line 505 of file qgscptcitycolorrampdialog.cpp.

changed

void QgsCptCityColorRampDialog::changed ( )

signal

Emitted when the dialog settings change.

eventFilter()

bool QgsCptCityColorRampDialog::eventFilter ( QObject *  obj, QEvent *  event  )

override

Definition at line 548 of file qgscptcitycolorrampdialog.cpp.

ramp()

QgsCptCityColorRamp QgsCptCityColorRampDialog::ramp ( ) const

inline

Returns a color ramp representing the current settings from the dialog.

See also

setRamp()

Definition at line 58 of file qgscptcitycolorrampdialog.h.

saveAsGradientRamp()

bool QgsCptCityColorRampDialog::saveAsGradientRamp

(

)

const

Returns true if the ramp should be converted to a QgsGradientColorRamp.

Definition at line 498 of file qgscptcitycolorrampdialog.cpp.

selectedName()

QString QgsCptCityColorRampDialog::selectedName ( ) const

inline

Returns the name of the ramp currently selected in the dialog.

Definition at line 70 of file qgscptcitycolorrampdialog.h.

setRamp()

void QgsCptCityColorRampDialog::setRamp

(

const QgsCptCityColorRamp &

ramp

)

Sets the color ramp to show in the dialog.

Parameters

ramp	color ramp

See also

ramp()

Definition at line 131 of file qgscptcitycolorrampdialog.cpp.

Property Documentation

ramp

QgsCptCityColorRamp QgsCptCityColorRampDialog::ramp

readwrite

Definition at line 44 of file qgscptcitycolorrampdialog.h.

---

The documentation for this class was generated from the following files:

• /build/qgis-3.42.0+99sid/src/gui/symbology/qgscptcitycolorrampdialog.h
• /build/qgis-3.42.0+99sid/src/gui/symbology/qgscptcitycolorrampdialog.cpp
