A widget for configuring common properties for QgsAnnotationItems. More...

#include <qgsannotationitemcommonpropertieswidget.h>

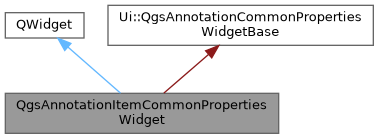

Inheritance diagram for QgsAnnotationItemCommonPropertiesWidget:

[legend]

Signals
void	itemChanged ()
	Emitted when the annotation item definition in the widget is changed by the user.

Public Member Functions
	QgsAnnotationItemCommonPropertiesWidget (QWidget *parent)
	Constructor for QgsAnnotationItemCommonPropertiesWidget.

	~QgsAnnotationItemCommonPropertiesWidget () override

QgsSymbolWidgetContext	context () const
	Returns the context in which the widget is shown, e.g., the associated map canvas and expression contexts.

void	setContext (const QgsSymbolWidgetContext &context)
	Sets the context in which the widget is shown, e.g., the associated map canvas and expression contexts.

void	setItem (QgsAnnotationItem *item)
	Sets the item whose properties should be shown in the widget.

void	updateItem (QgsAnnotationItem *item)
	Updates an item, setting the properties defined in the widget.

Detailed Description

A widget for configuring common properties for QgsAnnotationItems.

Since: QGIS 3.22

Definition at line 35 of file qgsannotationitemcommonpropertieswidget.h.

Constructor & Destructor Documentation

◆ QgsAnnotationItemCommonPropertiesWidget()

QgsAnnotationItemCommonPropertiesWidget::QgsAnnotationItemCommonPropertiesWidget ( QWidget * parent )

Constructor for QgsAnnotationItemCommonPropertiesWidget.

Definition at line 23 of file qgsannotationitemcommonpropertieswidget.cpp.

◆ ~QgsAnnotationItemCommonPropertiesWidget()

QgsAnnotationItemCommonPropertiesWidget::~QgsAnnotationItemCommonPropertiesWidget ( )

overridedefault

Member Function Documentation

◆ context()

QgsSymbolWidgetContext QgsAnnotationItemCommonPropertiesWidget::context ( ) const

Returns the context in which the widget is shown, e.g., the associated map canvas and expression contexts.

See also: setContext()

Definition at line 78 of file qgsannotationitemcommonpropertieswidget.cpp.

◆ itemChanged

void QgsAnnotationItemCommonPropertiesWidget::itemChanged ( )

signal

Emitted when the annotation item definition in the widget is changed by the user.

◆ setContext()

void QgsAnnotationItemCommonPropertiesWidget::setContext ( const QgsSymbolWidgetContext & context )

Sets the context in which the widget is shown, e.g., the associated map canvas and expression contexts.

See also: context()

Definition at line 70 of file qgsannotationitemcommonpropertieswidget.cpp.

◆ setItem()

void QgsAnnotationItemCommonPropertiesWidget::setItem ( QgsAnnotationItem * item )

Sets the item whose properties should be shown in the widget.

Definition at line 52 of file qgsannotationitemcommonpropertieswidget.cpp.

◆ updateItem()

void QgsAnnotationItemCommonPropertiesWidget::updateItem ( QgsAnnotationItem * item )

Updates an item, setting the properties defined in the widget.

Definition at line 62 of file qgsannotationitemcommonpropertieswidget.cpp.

The documentation for this class was generated from the following files:

/build/qgis-3.42.0+99sid/src/gui/annotations/qgsannotationitemcommonpropertieswidget.h
/build/qgis-3.42.0+99sid/src/gui/annotations/qgsannotationitemcommonpropertieswidget.cpp
