Class to select destination file, type and CRS for ogr layers. More...

#include <qgsvectorlayersaveasdialog.h>

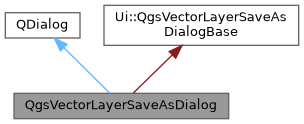

Inheritance diagram for QgsVectorLayerSaveAsDialog:

[legend]

Public Types
enum class	Option : int { Symbology = 1 , DestinationCrs = 1 << 2 , Fields = 1 << 3 , AddToCanvas = 1 << 4 , SelectedOnly = 1 << 5 , GeometryType = 1 << 6 , Extent = 1 << 7 , Metadata = 1 << 8 , AllOptions = ~0 }
	Available dialog options. More...

Public Member Functions
Q_DECL_DEPRECATED	QgsVectorLayerSaveAsDialog (long srsid, QWidget *parent=nullptr, Qt::WindowFlags fl=Qt::WindowFlags())
	Available dialog options.

	QgsVectorLayerSaveAsDialog (QgsVectorLayer layer, QgsVectorLayerSaveAsDialog::Options options=QgsVectorLayerSaveAsDialog::Option::AllOptions, QWidget parent=nullptr, Qt::WindowFlags fl=Qt::WindowFlags())
	Construct a new QgsVectorLayerSaveAsDialog.

void	accept () override

bool	addToCanvas () const
	Returns `true` if the "add to canvas" checkbox is checked.

QgsAttributeList	attributesAsDisplayedValues () const
	Returns selected attributes that must be exported with their displayed values instead of their raw values.

QStringList	attributesExportNames () const
	Returns a list of export names for attributes.

bool	automaticGeometryType () const
	Returns `true` if geometry type is set to automatic.

QgsVectorFileWriter::ActionOnExistingFile	creationActionOnExistingFile () const
	Returns the creation action.

QgsCoordinateReferenceSystem	crs () const
	Returns the CRS chosen for export.

QStringList	datasourceOptions () const
	Returns a list of additional data source options which are passed to OGR.

QString	encoding () const
	Returns the selected encoding for the target file.

QString	fileName () const
	Returns the target filename.

QgsRectangle	filterExtent () const
	Determines the extent to be exported.

bool	forceMulti () const
	Returns `true` if force multi geometry type is checked.

QString	format () const
	Returns the selected format in which the export should be written.

Qgis::WkbType	geometryType () const
	Returns the selected flat geometry type for the export.

bool	hasFilterExtent () const
	Determines if filtering the export by an extent is activated.

bool	includeZ () const
	Returns `true` if include z dimension is checked.

QString	layerName () const
	Returns the target layer name.

QStringList	layerOptions () const
	Returns a list of additional layer options which are passed to OGR.

bool	onlySelected () const
	Returns whether only selected features will be saved.

bool	persistMetadata () const
	Returns `true` if the persist metadata (copy source metadata to destination layer) option is checked.

double	scale () const
	Returns the specified map scale.

QgsAttributeList	selectedAttributes () const
	Returns a list of attributes which are selected for saving.

void	setAddToCanvas (bool checked)
	Sets whether the "add to canvas" checkbox should be checked.

void	setForceMulti (bool checked)
	Sets whether the force multi geometry checkbox should be checked.

void	setIncludeZ (bool checked)
	Sets whether the include z dimension checkbox should be checked.

void	setMapCanvas (QgsMapCanvas *canvas)
	Sets a map canvas to associate with the dialog.

void	setOnlySelected (bool onlySelected)
	Sets whether only selected features will be saved.

Qgis::FeatureSymbologyExport	symbologyExport () const
	Returns type of symbology export.

Detailed Description

Class to select destination file, type and CRS for ogr layers.

Definition at line 32 of file qgsvectorlayersaveasdialog.h.

Member Enumeration Documentation

◆ Option

enum class QgsVectorLayerSaveAsDialog::Option : int

strong

Available dialog options.

Enumerator
Symbology	Show symbology options.
DestinationCrs	Show destination CRS (reprojection) option.
Fields	Show field customization group.
AddToCanvas	Show add to map option.
SelectedOnly	Show selected features only option.
GeometryType	Show geometry group.
Extent	Show extent group.
Metadata	Show metadata options.
AllOptions	Show all options.

Definition at line 41 of file qgsvectorlayersaveasdialog.h.

Constructor & Destructor Documentation

◆ QgsVectorLayerSaveAsDialog() [1/2]

QgsVectorLayerSaveAsDialog::QgsVectorLayerSaveAsDialog	(	long	srsid,
		QWidget *	parent = `nullptr`,
		Qt::WindowFlags	fl = `Qt::WindowFlags()`
	)

Available dialog options.

Construct a new QgsVectorLayerSaveAsDialog

Deprecated:: since QGIS 3.14 - will be removed in QGIS 4.0

Definition at line 41 of file qgsvectorlayersaveasdialog.cpp.

◆ QgsVectorLayerSaveAsDialog() [2/2]

QgsVectorLayerSaveAsDialog::QgsVectorLayerSaveAsDialog	(	QgsVectorLayer *	layer,
		QgsVectorLayerSaveAsDialog::Options	options = `QgsVectorLayerSaveAsDialog::Option::AllOptions`,
		QWidget *	parent = `nullptr`,
		Qt::WindowFlags	fl = `Qt::WindowFlags()`
	)

Construct a new QgsVectorLayerSaveAsDialog.

Definition at line 49 of file qgsvectorlayersaveasdialog.cpp.

Member Function Documentation

◆ accept()

void QgsVectorLayerSaveAsDialog::accept ( )

override

Definition at line 309 of file qgsvectorlayersaveasdialog.cpp.

◆ addToCanvas()

bool QgsVectorLayerSaveAsDialog::addToCanvas ( ) const

Returns true if the "add to canvas" checkbox is checked.

See also: setAddToCanvas()

Definition at line 1088 of file qgsvectorlayersaveasdialog.cpp.

◆ attributesAsDisplayedValues()

QgsAttributeList QgsVectorLayerSaveAsDialog::attributesAsDisplayedValues ( ) const

Returns selected attributes that must be exported with their displayed values instead of their raw values.

Definition at line 1062 of file qgsvectorlayersaveasdialog.cpp.

◆ attributesExportNames()

QStringList QgsVectorLayerSaveAsDialog::attributesExportNames ( ) const

Returns a list of export names for attributes.

Definition at line 1079 of file qgsvectorlayersaveasdialog.cpp.

◆ automaticGeometryType()

bool QgsVectorLayerSaveAsDialog::automaticGeometryType ( ) const

Returns true if geometry type is set to automatic.

See also: geometryType()

Definition at line 1155 of file qgsvectorlayersaveasdialog.cpp.

◆ creationActionOnExistingFile()

QgsVectorFileWriter::ActionOnExistingFile QgsVectorLayerSaveAsDialog::creationActionOnExistingFile ( ) const

Returns the creation action.

Definition at line 1176 of file qgsvectorlayersaveasdialog.cpp.

◆ crs()

QgsCoordinateReferenceSystem QgsVectorLayerSaveAsDialog::crs ( ) const

Returns the CRS chosen for export.

Since: QGIS 3.14

Definition at line 922 of file qgsvectorlayersaveasdialog.cpp.

◆ datasourceOptions()

QStringList QgsVectorLayerSaveAsDialog::datasourceOptions ( ) const

Returns a list of additional data source options which are passed to OGR.

Refer to the OGR documentation for the target format for available options.

See also: layerOptions()

Definition at line 927 of file qgsvectorlayersaveasdialog.cpp.

◆ encoding()

QString QgsVectorLayerSaveAsDialog::encoding ( ) const

Returns the selected encoding for the target file.

Definition at line 912 of file qgsvectorlayersaveasdialog.cpp.

◆ fileName()

QString QgsVectorLayerSaveAsDialog::fileName ( ) const

Returns the target filename.

See also: layerName()

Definition at line 902 of file qgsvectorlayersaveasdialog.cpp.

◆ filterExtent()

QgsRectangle QgsVectorLayerSaveAsDialog::filterExtent ( ) const

Determines the extent to be exported.

See also: hasFilterExtent()

Definition at line 1123 of file qgsvectorlayersaveasdialog.cpp.

◆ forceMulti()

bool QgsVectorLayerSaveAsDialog::forceMulti ( ) const

Returns true if force multi geometry type is checked.

See also: includeZ(); setForceMulti()

Definition at line 1161 of file qgsvectorlayersaveasdialog.cpp.

◆ format()

QString QgsVectorLayerSaveAsDialog::format ( ) const

Returns the selected format in which the export should be written.

See also: QgsVectorFileWriter::filterForDriver()

Definition at line 917 of file qgsvectorlayersaveasdialog.cpp.

◆ geometryType()

Qgis::WkbType QgsVectorLayerSaveAsDialog::geometryType ( ) const

Returns the selected flat geometry type for the export.

See also: automaticGeometryType(); forceMulti(); includeZ()

Definition at line 1143 of file qgsvectorlayersaveasdialog.cpp.

◆ hasFilterExtent()

bool QgsVectorLayerSaveAsDialog::hasFilterExtent ( ) const

Determines if filtering the export by an extent is activated.

See also: filterExtent()

Definition at line 1118 of file qgsvectorlayersaveasdialog.cpp.

◆ includeZ()

bool QgsVectorLayerSaveAsDialog::includeZ ( ) const

Returns true if include z dimension is checked.

See also: forceMulti(); setIncludeZ()

Definition at line 1171 of file qgsvectorlayersaveasdialog.cpp.

◆ layerName()

QString QgsVectorLayerSaveAsDialog::layerName ( ) const

Returns the target layer name.

See also: fileName()

Definition at line 907 of file qgsvectorlayersaveasdialog.cpp.

◆ layerOptions()

QStringList QgsVectorLayerSaveAsDialog::layerOptions ( ) const

Returns a list of additional layer options which are passed to OGR.

Refer to the OGR documentation for the target format for available options.

See also: datasourceOptions()

Definition at line 987 of file qgsvectorlayersaveasdialog.cpp.

◆ onlySelected()

bool QgsVectorLayerSaveAsDialog::onlySelected ( ) const

Returns whether only selected features will be saved.

See also: setOnlySelected()

Definition at line 1133 of file qgsvectorlayersaveasdialog.cpp.

◆ persistMetadata()

bool QgsVectorLayerSaveAsDialog::persistMetadata ( ) const

Returns true if the persist metadata (copy source metadata to destination layer) option is checked.

Since: QGIS 3.20

Definition at line 1138 of file qgsvectorlayersaveasdialog.cpp.

◆ scale()

double QgsVectorLayerSaveAsDialog::scale ( ) const

Returns the specified map scale.

The scale value indicates the scale denominator, e.g. 1000.0 for a 1:1000 map.

Definition at line 1105 of file qgsvectorlayersaveasdialog.cpp.

◆ selectedAttributes()

QgsAttributeList QgsVectorLayerSaveAsDialog::selectedAttributes ( ) const

Returns a list of attributes which are selected for saving.

Definition at line 1047 of file qgsvectorlayersaveasdialog.cpp.

◆ setAddToCanvas()

void QgsVectorLayerSaveAsDialog::setAddToCanvas ( bool checked )

Sets whether the "add to canvas" checkbox should be checked.

See also: addToCanvas()

Since: QGIS 3.6

Definition at line 1093 of file qgsvectorlayersaveasdialog.cpp.

◆ setForceMulti()

void QgsVectorLayerSaveAsDialog::setForceMulti ( bool checked )

Sets whether the force multi geometry checkbox should be checked.

See also: forceMulti()

Definition at line 1166 of file qgsvectorlayersaveasdialog.cpp.

◆ setIncludeZ()

void QgsVectorLayerSaveAsDialog::setIncludeZ ( bool checked )

Sets whether the include z dimension checkbox should be checked.

See also: includeZ()

Definition at line 1181 of file qgsvectorlayersaveasdialog.cpp.

◆ setMapCanvas()

void QgsVectorLayerSaveAsDialog::setMapCanvas ( QgsMapCanvas * canvas )

Sets a map canvas to associate with the dialog.

Definition at line 1110 of file qgsvectorlayersaveasdialog.cpp.

◆ setOnlySelected()

void QgsVectorLayerSaveAsDialog::setOnlySelected ( bool onlySelected )

Sets whether only selected features will be saved.

See also: onlySelected()

Definition at line 1128 of file qgsvectorlayersaveasdialog.cpp.

◆ symbologyExport()

Qgis::FeatureSymbologyExport QgsVectorLayerSaveAsDialog::symbologyExport ( ) const

Returns type of symbology export.

Definition at line 1100 of file qgsvectorlayersaveasdialog.cpp.

The documentation for this class was generated from the following files:

/build/qgis-3.36.0+99sid/src/gui/ogr/qgsvectorlayersaveasdialog.h
/build/qgis-3.36.0+99sid/src/gui/ogr/qgsvectorlayersaveasdialog.cpp
