A reusable widget for formatting the contents of a QgsTableCell. More...

#include <qgstableeditorformattingwidget.h>

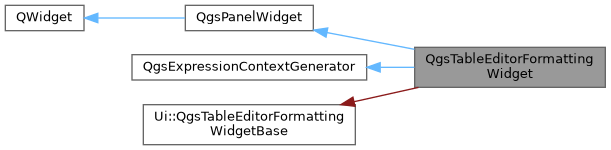

Inheritance diagram for QgsTableEditorFormattingWidget:

[legend]

Signals
void	backgroundColorChanged (const QColor &color)
	Emitted whenever the cell background color is changed in the widget.

void	cellPropertyChanged (const QgsProperty &property)
	Emitted when the cell contents property shown in the widget is changed.

void	columnWidthChanged (double width)
	Emitted whenever the column width shown in the widget is changed.

void	horizontalAlignmentChanged (Qt::Alignment alignment)
	Emitted when the horizontal alignment shown in the widget is changed.

void	numberFormatChanged ()
	Emitted whenever the numeric format shown in the widget is changed.

void	rowHeightChanged (double height)
	Emitted whenever the row height shown in the widget is changed.

void	textFormatChanged ()
	Emitted whenever the text format shown in the widget is changed.

void	verticalAlignmentChanged (Qt::Alignment alignment)
	Emitted when the vertical alignment shown in the widget is changed.

Signals inherited from QgsPanelWidget
void	panelAccepted (QgsPanelWidget *panel)
	Emitted when the panel is accepted by the user.

void	showPanel (QgsPanelWidget *panel)
	Emit when you require a panel to be show in the interface.

void	widgetChanged ()
	Emitted when the widget state changes.

Public Member Functions
	QgsTableEditorFormattingWidget (QWidget *parent=nullptr)
	Constructor for QgsTableEditorFormattingWidget with the specified parent widget.

	~QgsTableEditorFormattingWidget () override

QgsExpressionContext	createExpressionContext () const override
	This method needs to be reimplemented in all classes which implement this interface and return an expression context.

QgsNumericFormat *	numericFormat ()
	Returns the current numeric format shown in the widget, or a `nullptr` if no numeric format is set.

void	registerExpressionContextGenerator (QgsExpressionContextGenerator *generator)
	Register an expression context generator class that will be used to retrieve an expression context for the widget when required.

void	setBackgroundColor (const QColor &color)
	Sets the cell background color to show in the widget.

void	setCellProperty (const QgsProperty &property)
	Sets the cell content's property to show in the widget.

void	setColumnWidth (double width)
	Sets the column width to show in the widget, or 0 for automatic width.

void	setHorizontalAlignment (Qt::Alignment alignment)
	Sets the horizontal alignment to show in the widget.

void	setNumericFormat (QgsNumericFormat *format, bool isMixedFormat)
	Sets the numeric format to show in the widget, or `nullptr` if no numeric format is set.

void	setRowHeight (double height)
	Sets the row height to show in the widget, or 0 for automatic height.

void	setTextFormat (const QgsTextFormat &format)
	Sets the text format to show in the widget.

void	setVerticalAlignment (Qt::Alignment alignment)
	Sets the vertical alignment to show in the widget.

QgsTextFormat	textFormat () const
	Returns the current text format shown in the widget.

Public Member Functions inherited from QgsPanelWidget
	QgsPanelWidget (QWidget *parent=nullptr)
	Base class for any widget that can be shown as a inline panel.

virtual bool	applySizeConstraintsToStack () const
	Returns `true` if the size constraints and hints for the panel widget should be applied to the parent QgsPanelWidgetStack which this panel is shown in.

bool	autoDelete ()
	The the auto delete property on the widget.

void	connectChildPanel (QgsPanelWidget *panel)
	Connect the given sub panel widgets showPanel signals to this current panels main showPanel event to bubble up to the user.

void	connectChildPanels (const QList< QgsPanelWidget * > &panels)
	Connect the given sub panel widgets showPanel signals to this current panels main showPanel event to bubble up to the user.

bool	dockMode ()
	Returns the dock mode state.

virtual QMenu *	menuButtonMenu ()
	Returns the menu to use for the menu button for this panel, or `nullptr` if no menu button is required.

virtual QString	menuButtonTooltip () const
	Returns the (translated) tooltip text to use for the menu button for this panel.

QString	panelTitle ()
	The title of the panel.

void	setAutoDelete (bool autoDelete)
	The the auto delete property on the widget.

virtual void	setDockMode (bool dockMode)
	Set the widget in dock mode which tells the widget to emit panel widgets and not open dialogs.

void	setPanelTitle (const QString &panelTitle)
	Set the title of the panel when shown in the interface.

Public Member Functions inherited from QgsExpressionContextGenerator
virtual	~QgsExpressionContextGenerator ()=default

Additional Inherited Members
Public Slots inherited from QgsPanelWidget
void	acceptPanel ()
	Accept the panel.

void	openPanel (QgsPanelWidget *panel)
	Open a panel or dialog depending on dock mode setting If dock mode is `true` this method will emit the showPanel signal for connected slots to handle the open event.

Static Public Member Functions inherited from QgsPanelWidget
static QgsPanelWidget *	findParentPanel (QWidget *widget)
	Traces through the parents of a widget to find if it is contained within a QgsPanelWidget widget.

Protected Member Functions inherited from QgsPanelWidget
void	keyPressEvent (QKeyEvent *event) override
	Overridden key press event to handle the esc event on the widget.

Detailed Description

A reusable widget for formatting the contents of a QgsTableCell.

The editor has support for table foreground and background colors, and numeric formats.

Note: Not available in Python bindings

Since: QGIS 3.12

Definition at line 41 of file qgstableeditorformattingwidget.h.

Constructor & Destructor Documentation

◆ QgsTableEditorFormattingWidget()

QgsTableEditorFormattingWidget::QgsTableEditorFormattingWidget ( QWidget * parent = nullptr )

Constructor for QgsTableEditorFormattingWidget with the specified parent widget.

Definition at line 23 of file qgstableeditorformattingwidget.cpp.

◆ ~QgsTableEditorFormattingWidget()

QgsTableEditorFormattingWidget::~QgsTableEditorFormattingWidget ( )

overridedefault

Member Function Documentation

◆ backgroundColorChanged

void QgsTableEditorFormattingWidget::backgroundColorChanged ( const QColor & color )

signal

Emitted whenever the cell background color is changed in the widget.

See also: setBackgroundColor()

◆ cellPropertyChanged

void QgsTableEditorFormattingWidget::cellPropertyChanged ( const QgsProperty & property )

signal

Emitted when the cell contents property shown in the widget is changed.

Since: QGIS 3.16

◆ columnWidthChanged

void QgsTableEditorFormattingWidget::columnWidthChanged ( double width )

signal

Emitted whenever the column width shown in the widget is changed.

◆ createExpressionContext()

QgsExpressionContext QgsTableEditorFormattingWidget::createExpressionContext ( ) const

overridevirtual

This method needs to be reimplemented in all classes which implement this interface and return an expression context.

Implements QgsExpressionContextGenerator.

Definition at line 231 of file qgstableeditorformattingwidget.cpp.

◆ horizontalAlignmentChanged

void QgsTableEditorFormattingWidget::horizontalAlignmentChanged ( Qt::Alignment alignment )

signal

Emitted when the horizontal alignment shown in the widget is changed.

Since: QGIS 3.16

◆ numberFormatChanged

void QgsTableEditorFormattingWidget::numberFormatChanged ( )

signal

Emitted whenever the numeric format shown in the widget is changed.

◆ numericFormat()

QgsNumericFormat * QgsTableEditorFormattingWidget::numericFormat ( )

Returns the current numeric format shown in the widget, or a nullptr if no numeric format is set.

The caller takes ownership of the returned object.

See also: setNumericFormat()

Definition at line 138 of file qgstableeditorformattingwidget.cpp.

◆ registerExpressionContextGenerator()

void QgsTableEditorFormattingWidget::registerExpressionContextGenerator ( QgsExpressionContextGenerator * generator )

Register an expression context generator class that will be used to retrieve an expression context for the widget when required.

Since: QGIS 3.16

Definition at line 226 of file qgstableeditorformattingwidget.cpp.

◆ rowHeightChanged

void QgsTableEditorFormattingWidget::rowHeightChanged ( double height )

signal

Emitted whenever the row height shown in the widget is changed.

◆ setBackgroundColor()

void QgsTableEditorFormattingWidget::setBackgroundColor ( const QColor & color )

Sets the cell background color to show in the widget.

See also: backgroundColorChanged()

Definition at line 151 of file qgstableeditorformattingwidget.cpp.

◆ setCellProperty()

void QgsTableEditorFormattingWidget::setCellProperty ( const QgsProperty & property )

Sets the cell content's property to show in the widget.

Since: QGIS 3.16

Definition at line 216 of file qgstableeditorformattingwidget.cpp.

◆ setColumnWidth()

void QgsTableEditorFormattingWidget::setColumnWidth ( double width )

Sets the column width to show in the widget, or 0 for automatic width.

See also: columnWidthChanged(); setRowHeight()

Definition at line 185 of file qgstableeditorformattingwidget.cpp.

◆ setHorizontalAlignment()

void QgsTableEditorFormattingWidget::setHorizontalAlignment ( Qt::Alignment alignment )

Sets the horizontal alignment to show in the widget.

See also: horizontalAlignmentChanged(); setVerticalAlignment()

Since: QGIS 3.16

Definition at line 196 of file qgstableeditorformattingwidget.cpp.

◆ setNumericFormat()

void QgsTableEditorFormattingWidget::setNumericFormat	(	QgsNumericFormat *	format,
		bool	isMixedFormat
	)

Sets the numeric format to show in the widget, or nullptr if no numeric format is set.

if isMixedFormat is true then the widget will be set to indicate a "mixed format" setting.

See also: numericFormat()

Definition at line 158 of file qgstableeditorformattingwidget.cpp.

◆ setRowHeight()

void QgsTableEditorFormattingWidget::setRowHeight ( double height )

Sets the row height to show in the widget, or 0 for automatic height.

See also: rowHeightChanged(); setColumnWidth()

Definition at line 174 of file qgstableeditorformattingwidget.cpp.

◆ setTextFormat()

void QgsTableEditorFormattingWidget::setTextFormat ( const QgsTextFormat & format )

Sets the text format to show in the widget.

See also: textFormat()

Since: QGIS 3.16

Definition at line 167 of file qgstableeditorformattingwidget.cpp.

◆ setVerticalAlignment()

void QgsTableEditorFormattingWidget::setVerticalAlignment ( Qt::Alignment alignment )

Sets the vertical alignment to show in the widget.

See also: verticalAlignmentChanged(); setHorizontalAlignment()

Since: QGIS 3.16

Definition at line 206 of file qgstableeditorformattingwidget.cpp.

◆ textFormat()

QgsTextFormat QgsTableEditorFormattingWidget::textFormat ( ) const

Returns the current text format shown in the widget.

See also: setTextFormat()

Since: QGIS 3.16

Definition at line 146 of file qgstableeditorformattingwidget.cpp.

◆ textFormatChanged

void QgsTableEditorFormattingWidget::textFormatChanged ( )

signal

Emitted whenever the text format shown in the widget is changed.

Since: QGIS 3.16

◆ verticalAlignmentChanged

void QgsTableEditorFormattingWidget::verticalAlignmentChanged ( Qt::Alignment alignment )

signal

Emitted when the vertical alignment shown in the widget is changed.

Since: QGIS 3.16

The documentation for this class was generated from the following files:

/build/qgis-3.36.0+99sid/src/gui/tableeditor/qgstableeditorformattingwidget.h
/build/qgis-3.36.0+99sid/src/gui/tableeditor/qgstableeditorformattingwidget.cpp
