QgsSettingsTreeWidget Class Reference

QgsSettingsTreeWidget is a widget with the settings tree to visualize, search and edit settings. More...

#include <qgssettingstreewidget.h>

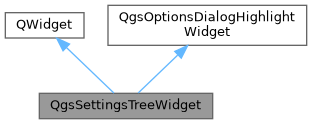

Inheritance diagram for QgsSettingsTreeWidget:

Public Member Functions
	QgsSettingsTreeWidget (QWidget *parent=nullptr)
	Constructor.
void	applyChanges () const
	Apply changes to settings value.
Public Member Functions inherited from QgsOptionsDialogHighlightWidget
virtual	~QgsOptionsDialogHighlightWidget ()=default
bool	isValid ()
	Returns if it valid: if the widget type is handled and if the widget is not still available.
bool	searchHighlight (const QString &text)
	search for a text pattern and highlight the widget if the text is found
QWidget *	widget ()
	Returns the widget.

Protected Member Functions
bool	highlightText (const QString &text) override
	Highlight the text in the widget.
void	reset () override
	reset the style of the widgets to its original state
bool	searchText (const QString &text) override
	Search for the text in the widget and return true if it was found.
Protected Member Functions inherited from QgsOptionsDialogHighlightWidget
	QgsOptionsDialogHighlightWidget (QWidget *widget=nullptr)
	Constructor.

Additional Inherited Members
Static Public Member Functions inherited from QgsOptionsDialogHighlightWidget
static QgsOptionsDialogHighlightWidget *	createWidget (QWidget *widget)
	create a highlight widget implementation for the proper widget type.
Protected Attributes inherited from QgsOptionsDialogHighlightWidget
QPointer< QWidget >	mWidget
	Pointer to the widget.

Detailed Description

QgsSettingsTreeWidget is a widget with the settings tree to visualize, search and edit settings.

Since

QGIS 3.32

Definition at line 35 of file qgssettingstreewidget.h.

Constructor & Destructor Documentation

QgsSettingsTreeWidget()

QgsSettingsTreeWidget::QgsSettingsTreeWidget ( QWidget *  parent = nullptr )

explicit

Constructor.

Definition at line 26 of file qgssettingstreewidget.cpp.

Member Function Documentation

applyChanges()

void QgsSettingsTreeWidget::applyChanges

(

)

const

Apply changes to settings value.

Definition at line 47 of file qgssettingstreewidget.cpp.

highlightText()

bool QgsSettingsTreeWidget::highlightText ( const QString &  text )

overrideprotectedvirtual

Highlight the text in the widget.

Returns

true if the text could be highlighted.

Implements QgsOptionsDialogHighlightWidget.

Definition at line 59 of file qgssettingstreewidget.cpp.

reset()

void QgsSettingsTreeWidget::reset ( )

overrideprotectedvirtual

reset the style of the widgets to its original state

Implements QgsOptionsDialogHighlightWidget.

Definition at line 65 of file qgssettingstreewidget.cpp.

searchText()

bool QgsSettingsTreeWidget::searchText ( const QString &  text )

overrideprotectedvirtual

Search for the text in the widget and return true if it was found.

Implements QgsOptionsDialogHighlightWidget.

Definition at line 53 of file qgssettingstreewidget.cpp.

---

The documentation for this class was generated from the following files:

• /build/qgis-3.36.0+99sid/src/gui/settings/qgssettingstreewidget.h
• /build/qgis-3.36.0+99sid/src/gui/settings/qgssettingstreewidget.cpp
