QgsMeshRendererScalarSettingsWidget Class Reference

A widget for setup of the scalar dataset renderer settings of a mesh layer. More...

#include <qgsmeshrendererscalarsettingswidget.h>

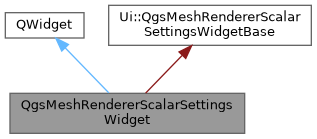

Inheritance diagram for QgsMeshRendererScalarSettingsWidget:

Signals
void	widgetChanged ()
	Mesh rendering settings changed.

Public Member Functions
	QgsMeshRendererScalarSettingsWidget (QWidget *parent=nullptr)
	A widget to hold the renderer scalar settings for a mesh layer.
void	setActiveDatasetGroup (int groupIndex)
	Associates a dataset group with the widget (should be set before syncToLayer())
void	setLayer (QgsMeshLayer *layer)
	Associates mesh layer with the widget.
QgsMeshRendererScalarSettings	settings () const
	Returns scalar settings.
void	syncToLayer ()
	Synchronizes widgets state with associated mesh layer.

Detailed Description

A widget for setup of the scalar dataset renderer settings of a mesh layer.

The layer must be connected and an active dataset must be selected.

Definition at line 38 of file qgsmeshrendererscalarsettingswidget.h.

Constructor & Destructor Documentation

QgsMeshRendererScalarSettingsWidget()

QgsMeshRendererScalarSettingsWidget::QgsMeshRendererScalarSettingsWidget

(

QWidget *

parent = nullptr

)

A widget to hold the renderer scalar settings for a mesh layer.

Parameters

parent

Parent object

Definition at line 25 of file qgsmeshrendererscalarsettingswidget.cpp.

Member Function Documentation

setActiveDatasetGroup()

void QgsMeshRendererScalarSettingsWidget::setActiveDatasetGroup

(

int

groupIndex

)

Associates a dataset group with the widget (should be set before syncToLayer())

Definition at line 75 of file qgsmeshrendererscalarsettingswidget.cpp.

setLayer()

void QgsMeshRendererScalarSettingsWidget::setLayer

(

QgsMeshLayer *

layer

)

Associates mesh layer with the widget.

Definition at line 69 of file qgsmeshrendererscalarsettingswidget.cpp.

settings()

QgsMeshRendererScalarSettings QgsMeshRendererScalarSettingsWidget::settings

(

)

const

Returns scalar settings.

Definition at line 81 of file qgsmeshrendererscalarsettingswidget.cpp.

syncToLayer()

void QgsMeshRendererScalarSettingsWidget::syncToLayer

(

)

Synchronizes widgets state with associated mesh layer.

Definition at line 103 of file qgsmeshrendererscalarsettingswidget.cpp.

widgetChanged

void QgsMeshRendererScalarSettingsWidget::widgetChanged ( )

signal

Mesh rendering settings changed.

---

The documentation for this class was generated from the following files:

• /build/qgis-3.36.0+99sid/src/gui/mesh/qgsmeshrendererscalarsettingswidget.h
• /build/qgis-3.36.0+99sid/src/gui/mesh/qgsmeshrendererscalarsettingswidget.cpp
