Abstract base class for map renderer jobs which use custom painters. More...
#include <qgsmaprenderercustompainterjob.h>

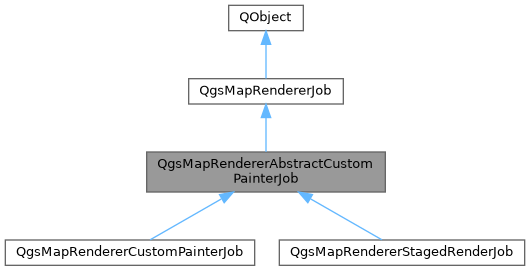

Inheritance diagram for QgsMapRendererAbstractCustomPainterJob:
Public Member Functions | |
| QgsMapRendererAbstractCustomPainterJob (const QgsMapSettings &settings) | |
| Constructor for QgsMapRendererAbstractCustomPainterJob, using the given map settings. | |
 Public Member Functions inherited from QgsMapRendererJob | |
| QgsMapRendererJob (const QgsMapSettings &settings) | |
| ~QgsMapRendererJob () override | |
| virtual void | cancel ()=0 |
| Stop the rendering job - does not return until the job has terminated. | |
| virtual void | cancelWithoutBlocking ()=0 |
| Triggers cancellation of the rendering job without blocking. | |
| Errors | errors () const |
| List of errors that happened during the rendering job - available when the rendering has been finished. | |
| const QgsFeatureFilterProvider * | featureFilterProvider () const |
| Returns the feature filter provider used by the QgsRenderContext of each LayerRenderJob. | |
| virtual bool | isActive () const =0 |
| Tell whether the rendering job is currently running in background. | |
| QgsLabelingEngineFeedback * | labelingEngineFeedback () |
| Returns the associated labeling engine feedback object. | |
| QgsLabelSink * | labelSink () const |
| Returns the label sink associated to this rendering job. | |
| QStringList | layersRedrawnFromCache () const |
| Returns a list of the layer IDs for all layers which were redrawn from cached images. | |
| const QgsMapSettings & | mapSettings () const |
| Returns map settings with which this job was started. | |
| QHash< QgsMapLayer *, int > | perLayerRenderingTime () const |
| Returns the render time (in ms) per layer. | |
| int | renderingTime () const |
| Returns the total time it took to finish the job (in milliseconds). | |
| void | setCache (QgsMapRendererCache *cache) |
| Assign a cache to be used for reading and storing rendered images of individual layers. | |
| void | setFeatureFilterProvider (const QgsFeatureFilterProvider *f) |
| Set the feature filter provider used by the QgsRenderContext of each LayerRenderJob. | |
| void | setLabelSink (QgsLabelSink *sink) |
| Assigns the label sink which will take over responsibility for handling labels during the rendering job. | |
| void | setLayerRenderingTimeHints (const QHash< QString, int > &hints) |
| Sets approximate render times (in ms) for map layers. | |
| void | start () |
| Start the rendering job and immediately return. | |
| virtual QgsLabelingResults * | takeLabelingResults ()=0 |
| Gets pointer to internal labeling engine (in order to get access to the results). | |
| QgsRenderedItemResults * | takeRenderedItemResults () |
| Takes the rendered item results from the map render job and returns them. | |
| virtual bool | usedCachedLabels () const =0 |
Returns true if the render job was able to use a cached labeling solution. | |
| virtual void | waitForFinished ()=0 |
| Block until the job has finished. | |
Protected Member Functions | |
| void | preparePainter (QPainter *painter, const QColor &backgroundColor=Qt::transparent) |
| Prepares the given painter ready for a map render. | |
| Protected Member Functions inherited from QgsMapRendererJob | |
| void | cleanupJobs (std::vector< LayerRenderJob > &jobs) |
| void | cleanupLabelJob (LabelRenderJob &job) |
| Handles clean up tasks for a label job, including deletion of images and storing cached label results. | |
| void | cleanupSecondPassJobs (std::vector< LayerRenderJob > &jobs) |
| void | initSecondPassJobs (std::vector< LayerRenderJob > &secondPassJobs, LabelRenderJob &labelJob) const |
| Initialize secondPassJobs according to what have been rendered (mask clipping path e.g.) in first pass jobs and labelJob. | |
| void | logRenderingTime (const std::vector< LayerRenderJob > &jobs, const std::vector< LayerRenderJob > &secondPassJobs, const LabelRenderJob &labelJob) |
| std::vector< LayerRenderJob > | prepareJobs (QPainter *painter, QgsLabelingEngine *labelingEngine2, bool deferredPainterSet=false) |
| Creates a list of layer rendering jobs and prepares them for later render. | |
| bool | prepareLabelCache () const |
| Prepares the cache for storing the result of labeling. | |
| LabelRenderJob | prepareLabelingJob (QPainter *painter, QgsLabelingEngine *labelingEngine2, bool canUseLabelCache=true) |
| Prepares a labeling job. | |
| std::vector< LayerRenderJob > | prepareSecondPassJobs (std::vector< LayerRenderJob > &firstPassJobs, LabelRenderJob &labelJob) |
| Prepares jobs for a second pass, if selective masks exist (from labels or symbol layers). | |
Additional Inherited Members | |
| Public Types inherited from QgsMapRendererJob | |
| typedef QList< QgsMapRendererJob::Error > | Errors |
| Signals inherited from QgsMapRendererJob | |
| void | finished () |
| emitted when asynchronous rendering is finished (or canceled). | |
| void | layerRendered (const QString &layerId) |
| Emitted when a layer has completed rendering. | |
| void | layerRenderingStarted (const QString &layerId) |
| Emitted just before rendering starts for a particular layer. | |
| void | renderingLayersFinished () |
| Emitted when the layers are rendered. | |
| Static Public Attributes inherited from QgsMapRendererJob | |
| static const QString | ELEVATION_MAP_CACHE_PREFIX |
| QgsMapRendererCache prefix string for cached elevation map image. | |
| static const QString | LABEL_CACHE_ID |
| QgsMapRendererCache ID string for cached label image. | |
| static const QString | LABEL_PREVIEW_CACHE_ID |
| QgsMapRendererCache ID string for cached label image during preview compositions only. | |
| static const QgsSettingsEntryBool * | settingsLogCanvasRefreshEvent = new QgsSettingsEntryBool( QStringLiteral( "logCanvasRefreshEvent" ), QgsSettingsTree::sTreeMap, false ) |
| Settings entry log canvas refresh event. | |
| Static Protected Member Functions inherited from QgsMapRendererJob | |
| static QImage | composeImage (const QgsMapSettings &settings, const std::vector< LayerRenderJob > &jobs, const LabelRenderJob &labelJob, const QgsMapRendererCache *cache=nullptr) |
| static void | composeSecondPass (std::vector< LayerRenderJob > &secondPassJobs, LabelRenderJob &labelJob, bool forceVector=false) |
| Compose second pass images into first pass images. | |
| static Q_DECL_DEPRECATED void | drawLabeling (const QgsMapSettings &settings, QgsRenderContext &renderContext, QgsLabelingEngine *labelingEngine2, QPainter *painter) |
| static void | drawLabeling (QgsRenderContext &renderContext, QgsLabelingEngine *labelingEngine2, QPainter *painter) |
| static QgsElevationMap | layerElevationToBeComposed (const QgsMapSettings &settings, const LayerRenderJob &job, const QgsMapRendererCache *cache) |
| static QImage | layerImageToBeComposed (const QgsMapSettings &settings, const LayerRenderJob &job, const QgsMapRendererCache *cache) |
| Protected Attributes inherited from QgsMapRendererJob | |
| QgsMapRendererCache * | mCache = nullptr |
| Errors | mErrors |
| QHash< QString, int > | mLayerRenderingTimeHints |
| Approximate expected layer rendering time per layer, by layer ID. | |
| QStringList | mLayersRedrawnFromCache |
| QHash< QgsWeakMapLayerPointer, int > | mPerLayerRenderingTime |
| Render time (in ms) per layer, by layer ID. | |
| bool | mRecordRenderingTime = true |
true if layer rendering time should be recorded. | |
| std::unique_ptr< QgsRenderedItemResults > | mRenderedItemResults |
| QElapsedTimer | mRenderingStart |
| int | mRenderingTime = 0 |
| QgsMapSettings | mSettings |
Detailed Description
Abstract base class for map renderer jobs which use custom painters.
- Since
- QGIS 3.10
Definition at line 31 of file qgsmaprenderercustompainterjob.h.
Constructor & Destructor Documentation
◆ QgsMapRendererAbstractCustomPainterJob()
| QgsMapRendererAbstractCustomPainterJob::QgsMapRendererAbstractCustomPainterJob | ( | const QgsMapSettings & | settings | ) |
Constructor for QgsMapRendererAbstractCustomPainterJob, using the given map settings.
Definition at line 44 of file qgsmaprenderercustompainterjob.cpp.
Member Function Documentation
◆ preparePainter()
|
protected |
Prepares the given painter ready for a map render.
The backgroundColor argument specifies the color to use for the map's background.
Definition at line 50 of file qgsmaprenderercustompainterjob.cpp.
The documentation for this class was generated from the following files:
- /build/qgis-3.36.0+99sid/src/core/maprenderer/qgsmaprenderercustompainterjob.h
- /build/qgis-3.36.0+99sid/src/core/maprenderer/qgsmaprenderercustompainterjob.cpp
