QgsLoadRasterAttributeTableDialog Class Reference

The QgsLoadRasterAttributeTableDialog dialog let the user select a VAT.DBF file and associate the resulting raster attribute table with a raster band. More...

#include <qgsloadrasterattributetabledialog.h>

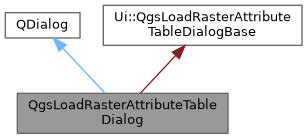

Inheritance diagram for QgsLoadRasterAttributeTableDialog:

Public Slots
void	accept () override

Public Member Functions
	QgsLoadRasterAttributeTableDialog (QgsRasterLayer *rasterLayer, QWidget *parent=nullptr)
	Creates a new QgsCreateRasterAttributeTableDialog.
QString	filePath () const
	Returns the file path to VAT.DBF.
bool	openWhenDone () const
	Returns true if the option to open the newly created attribute table is checked.
int	rasterBand ()
	Returns the raster band associated to the raster attribute table.
void	setMessageBar (QgsMessageBar *bar)
	Sets the message bar associated with the widget.
void	setOpenWhenDoneVisible (bool visible)
	Sets the visibility of the "Open newly created raster attribute table" option to visible, the option is visible by default.

Detailed Description

The QgsLoadRasterAttributeTableDialog dialog let the user select a VAT.DBF file and associate the resulting raster attribute table with a raster band.

Note

Not available in Python bindings

Since

QGIS 3.30

Definition at line 39 of file qgsloadrasterattributetabledialog.h.

Constructor & Destructor Documentation

QgsLoadRasterAttributeTableDialog()

QgsLoadRasterAttributeTableDialog::QgsLoadRasterAttributeTableDialog	(	QgsRasterLayer *	rasterLayer,
		QWidget *	parent = nullptr
	)

Creates a new QgsCreateRasterAttributeTableDialog.

Parameters

rasterLayer	the raster layer, must be suitable for creating a new raster attribute table
parent	optional parent

Definition at line 23 of file qgsloadrasterattributetabledialog.cpp.

Member Function Documentation

accept

void QgsLoadRasterAttributeTableDialog::accept ( )

overrideslot

Definition at line 76 of file qgsloadrasterattributetabledialog.cpp.

filePath()

QString QgsLoadRasterAttributeTableDialog::filePath

(

)

const

Returns the file path to VAT.DBF.

Definition at line 47 of file qgsloadrasterattributetabledialog.cpp.

openWhenDone()

bool QgsLoadRasterAttributeTableDialog::openWhenDone

(

)

const

Returns true if the option to open the newly created attribute table is checked.

Definition at line 62 of file qgsloadrasterattributetabledialog.cpp.

rasterBand()

int QgsLoadRasterAttributeTableDialog::rasterBand

(

)

Returns the raster band associated to the raster attribute table.

Definition at line 52 of file qgsloadrasterattributetabledialog.cpp.

setMessageBar()

void QgsLoadRasterAttributeTableDialog::setMessageBar

(

QgsMessageBar *

bar

)

Sets the message bar associated with the widget.

This allows the widget to push feedback messages to the appropriate message bar.

Definition at line 57 of file qgsloadrasterattributetabledialog.cpp.

setOpenWhenDoneVisible()

void QgsLoadRasterAttributeTableDialog::setOpenWhenDoneVisible

(

bool

visible

)

Sets the visibility of the "Open newly created raster attribute table" option to visible, the option is visible by default.

Definition at line 67 of file qgsloadrasterattributetabledialog.cpp.

---

The documentation for this class was generated from the following files:

• /build/qgis-3.36.0+99sid/src/gui/raster/qgsloadrasterattributetabledialog.h
• /build/qgis-3.36.0+99sid/src/gui/raster/qgsloadrasterattributetabledialog.cpp
