Widget for direction light settings. More...

#include <qgsdirectionallightwidget.h>

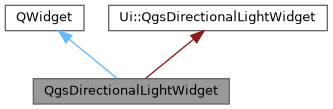

Inheritance diagram for QgsDirectionalLightWidget:

[legend]

Signals
void	directionChanged ()
	Emitted when the direction is changed.

Public Member Functions
	QgsDirectionalLightWidget (QWidget *parent=nullptr)
	Constructor.

	~QgsDirectionalLightWidget ()

double	altitude () const
	Returns the altitude value (degree)

double	azimuth () const
	Returns the azimuth value (degree)

void	setAltitude (double altitude)
	Sets the altitude value (degree)

void	setAzimuth (double azimuth)
	Sets the azimuth value (degree)

void	setEnableAzimuth (bool enable)
	Sets whether the azimut can be changed, for example, when using multidirectional light.

Detailed Description

Widget for direction light settings.

The user can choose azimuth and altitude values.

Since: QGIS 3.30

Definition at line 33 of file qgsdirectionallightwidget.h.

Constructor & Destructor Documentation

◆ QgsDirectionalLightWidget()

QgsDirectionalLightWidget::QgsDirectionalLightWidget ( QWidget * parent = nullptr )

explicit

Constructor.

Definition at line 22 of file qgsdirectionallightwidget.cpp.

◆ ~QgsDirectionalLightWidget()

QgsDirectionalLightWidget::~QgsDirectionalLightWidget ( )

Definition at line 55 of file qgsdirectionallightwidget.cpp.

Member Function Documentation

◆ altitude()

double QgsDirectionalLightWidget::altitude ( ) const

Returns the altitude value (degree)

Definition at line 74 of file qgsdirectionallightwidget.cpp.

◆ azimuth()

double QgsDirectionalLightWidget::azimuth ( ) const

Returns the azimuth value (degree)

Definition at line 64 of file qgsdirectionallightwidget.cpp.

◆ directionChanged

void QgsDirectionalLightWidget::directionChanged ( )

signal

Emitted when the direction is changed.

◆ setAltitude()

void QgsDirectionalLightWidget::setAltitude ( double altitude )

Sets the altitude value (degree)

Definition at line 69 of file qgsdirectionallightwidget.cpp.

◆ setAzimuth()

void QgsDirectionalLightWidget::setAzimuth ( double azimuth )

Sets the azimuth value (degree)

Definition at line 59 of file qgsdirectionallightwidget.cpp.

◆ setEnableAzimuth()

void QgsDirectionalLightWidget::setEnableAzimuth ( bool enable )

Sets whether the azimut can be changed, for example, when using multidirectional light.

Definition at line 79 of file qgsdirectionallightwidget.cpp.

The documentation for this class was generated from the following files:

/build/qgis-3.36.0+99sid/src/gui/qgsdirectionallightwidget.h
/build/qgis-3.36.0+99sid/src/gui/qgsdirectionallightwidget.cpp
