The QgsDataSourceSelectWidget class embeds the browser view to select an existing data source. More...

#include <qgsdatasourceselectdialog.h>

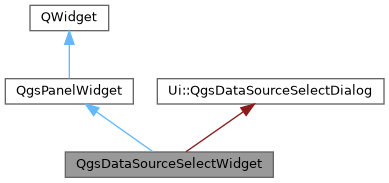

Inheritance diagram for QgsDataSourceSelectWidget:

[legend]

Signals
void	itemTriggered (const QgsMimeDataUtils::Uri &uri)
	Emitted when an item is triggered, e.g.

void	selectionChanged ()
	Emitted when the current selection changes in the widget.

void	validationChanged (bool isValid)
	This signal is emitted whenever the validation status of the widget changes.

Signals inherited from QgsPanelWidget
void	panelAccepted (QgsPanelWidget *panel)
	Emitted when the panel is accepted by the user.

void	showPanel (QgsPanelWidget *panel)
	Emit when you require a panel to be show in the interface.

void	widgetChanged ()
	Emitted when the widget state changes.

Public Member Functions
	QgsDataSourceSelectWidget (QgsBrowserGuiModel browserModel=nullptr, bool setFilterByLayerType=false, Qgis::LayerType layerType=Qgis::LayerType::Vector, QWidget parent=nullptr)
	Constructs a QgsDataSourceSelectWidget, optionally filtering by layer type.

	~QgsDataSourceSelectWidget () override

void	expandPath (const QString &path)
	Expands out a file path in the view.

void	setCaseSensitive (bool caseSensitive)
	Sets filter case sensitivity.

void	setDescription (const QString &description)
	Sets a description label.

void	setFilter ()
	Apply filter to the model.

void	setFilterSyntax (QAction *)
	Sets filter syntax.

void	setLayerTypeFilter (Qgis::LayerType layerType)
	Sets layer type filter to layerType and activates the filtering.

void	showEvent (QShowEvent *e) override
	Scroll to last selected index and expand it's children.

void	showFilterWidget (bool visible)
	Show/hide filter widget.

QgsMimeDataUtils::Uri	uri () const
	Returns the (possibly invalid) uri of the selected data source.

Public Member Functions inherited from QgsPanelWidget
	QgsPanelWidget (QWidget *parent=nullptr)
	Base class for any widget that can be shown as a inline panel.

virtual bool	applySizeConstraintsToStack () const
	Returns `true` if the size constraints and hints for the panel widget should be applied to the parent QgsPanelWidgetStack which this panel is shown in.

bool	autoDelete ()
	The the auto delete property on the widget.

void	connectChildPanel (QgsPanelWidget *panel)
	Connect the given sub panel widgets showPanel signals to this current panels main showPanel event to bubble up to the user.

void	connectChildPanels (const QList< QgsPanelWidget * > &panels)
	Connect the given sub panel widgets showPanel signals to this current panels main showPanel event to bubble up to the user.

bool	dockMode ()
	Returns the dock mode state.

virtual QMenu *	menuButtonMenu ()
	Returns the menu to use for the menu button for this panel, or `nullptr` if no menu button is required.

virtual QString	menuButtonTooltip () const
	Returns the (translated) tooltip text to use for the menu button for this panel.

QString	panelTitle ()
	The title of the panel.

void	setAutoDelete (bool autoDelete)
	The the auto delete property on the widget.

virtual void	setDockMode (bool dockMode)
	Set the widget in dock mode which tells the widget to emit panel widgets and not open dialogs.

void	setPanelTitle (const QString &panelTitle)
	Set the title of the panel when shown in the interface.

Additional Inherited Members
Public Slots inherited from QgsPanelWidget
void	acceptPanel ()
	Accept the panel.

void	openPanel (QgsPanelWidget *panel)
	Open a panel or dialog depending on dock mode setting If dock mode is `true` this method will emit the showPanel signal for connected slots to handle the open event.

Static Public Member Functions inherited from QgsPanelWidget
static QgsPanelWidget *	findParentPanel (QWidget *widget)
	Traces through the parents of a widget to find if it is contained within a QgsPanelWidget widget.

Protected Member Functions inherited from QgsPanelWidget
void	keyPressEvent (QKeyEvent *event) override
	Overridden key press event to handle the esc event on the widget.

Detailed Description

The QgsDataSourceSelectWidget class embeds the browser view to select an existing data source.

By default any layer type can be chosen, the valid layer type can be restricted by setting a layer type filter with setLayerTypeFilter(layerType) or by activating the filter directly from the constructor.

To retrieve the selected data source, uri() can be called and it will return a (possibly invalid) QgsMimeDataUtils::Uri.

Since: QGIS 3.14

Definition at line 46 of file qgsdatasourceselectdialog.h.

Constructor & Destructor Documentation

◆ QgsDataSourceSelectWidget()

QgsDataSourceSelectWidget::QgsDataSourceSelectWidget	(	QgsBrowserGuiModel *	browserModel = `nullptr`,
		bool	setFilterByLayerType = `false`,
		Qgis::LayerType	layerType = `Qgis::LayerType::Vector`,
		QWidget *	parent = `nullptr`
	)

Constructs a QgsDataSourceSelectWidget, optionally filtering by layer type.

Parameters

browserModel	an existing browser model (typically from app), if `nullptr` an instance will be created
setFilterByLayerType	activates filtering by layer type
layerType	sets the layer type filter, this is in effect only if filtering by layer type is also active
parent	the object

Definition at line 35 of file qgsdatasourceselectdialog.cpp.

◆ ~QgsDataSourceSelectWidget()

QgsDataSourceSelectWidget::~QgsDataSourceSelectWidget ( )

overridedefault

Member Function Documentation

◆ expandPath()

void QgsDataSourceSelectWidget::expandPath ( const QString & path )

Expands out a file path in the view.

The path must correspond to a valid directory existing on the file system.

Since: QGIS 3.28

Definition at line 197 of file qgsdatasourceselectdialog.cpp.

◆ itemTriggered

void QgsDataSourceSelectWidget::itemTriggered ( const QgsMimeDataUtils::Uri & uri )

signal

Emitted when an item is triggered, e.g.

via a double-click.

◆ selectionChanged

void QgsDataSourceSelectWidget::selectionChanged ( )

signal

Emitted when the current selection changes in the widget.

◆ setCaseSensitive()

void QgsDataSourceSelectWidget::setCaseSensitive ( bool caseSensitive )

Sets filter case sensitivity.

Definition at line 266 of file qgsdatasourceselectdialog.cpp.

◆ setDescription()

void QgsDataSourceSelectWidget::setDescription ( const QString & description )

Sets a description label.

Parameters

description a description string

Note: the description will be displayed at the bottom of the dialog

Since: QGIS 3.8

Definition at line 163 of file qgsdatasourceselectdialog.cpp.

◆ setFilter()

void QgsDataSourceSelectWidget::setFilter ( )

Apply filter to the model.

Definition at line 202 of file qgsdatasourceselectdialog.cpp.

◆ setFilterSyntax()

void QgsDataSourceSelectWidget::setFilterSyntax ( QAction * action )

Sets filter syntax.

Definition at line 259 of file qgsdatasourceselectdialog.cpp.

◆ setLayerTypeFilter()

void QgsDataSourceSelectWidget::setLayerTypeFilter ( Qgis::LayerType layerType )

Sets layer type filter to layerType and activates the filtering.

Definition at line 271 of file qgsdatasourceselectdialog.cpp.

◆ showEvent()

void QgsDataSourceSelectWidget::showEvent ( QShowEvent * e )

override

Scroll to last selected index and expand it's children.

Definition at line 123 of file qgsdatasourceselectdialog.cpp.

◆ showFilterWidget()

void QgsDataSourceSelectWidget::showFilterWidget ( bool visible )

Show/hide filter widget.

Definition at line 148 of file qgsdatasourceselectdialog.cpp.

◆ uri()

QgsMimeDataUtils::Uri QgsDataSourceSelectWidget::uri ( ) const

Returns the (possibly invalid) uri of the selected data source.

Definition at line 281 of file qgsdatasourceselectdialog.cpp.

◆ validationChanged

void QgsDataSourceSelectWidget::validationChanged ( bool isValid )

signal

This signal is emitted whenever the validation status of the widget changes.

Parameters

isValid true if the current status of the widget is valid

The documentation for this class was generated from the following files:

/build/qgis-3.36.0+99sid/src/gui/qgsdatasourceselectdialog.h
/build/qgis-3.36.0+99sid/src/gui/qgsdatasourceselectdialog.cpp
