QgsAbstractVectorLayer3DRenderer Class Reference

3 More...

#include <qgsabstractvectorlayer3drenderer.h>

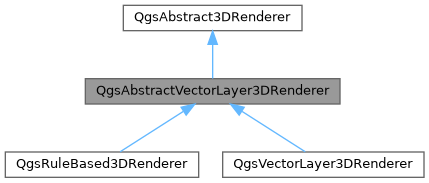

Inheritance diagram for QgsAbstractVectorLayer3DRenderer:

Public Member Functions
	QgsAbstractVectorLayer3DRenderer ()
QgsVectorLayer *	layer () const
	Returns vector layer associated with the renderer.
void	resolveReferences (const QgsProject &project) override
	Resolves references to other objects - second phase of loading - after readXml()
void	setLayer (QgsVectorLayer *layer)
	Sets vector layer associated with the renderer.
void	setTilingSettings (const QgsVectorLayer3DTilingSettings &settings)
	Sets tiling settings of the renderer.
QgsVectorLayer3DTilingSettings	tilingSettings () const
	Returns tiling settings of the renderer.
Public Member Functions inherited from QgsAbstract3DRenderer
virtual	~QgsAbstract3DRenderer ()=default
virtual QgsAbstract3DRenderer *	clone () const =0
	Returns a cloned instance.
virtual Qt3DCore::QEntity *	createEntity (const Qgs3DMapSettings &map) const =0
	Returns a 3D entity that will be used to show renderer's data in 3D scene.
virtual void	readXml (const QDomElement &elem, const QgsReadWriteContext &context)=0
	Reads renderer's properties from given XML element.
virtual QString	type () const =0
	Returns unique identifier of the renderer class (used to identify subclass)
virtual void	writeXml (QDomElement &elem, const QgsReadWriteContext &context) const =0
	Writes renderer's properties to given XML element.

Protected Member Functions
void	copyBaseProperties (QgsAbstractVectorLayer3DRenderer *r) const
	Copies common properties of this object to another object.
void	readXmlBaseProperties (const QDomElement &elem, const QgsReadWriteContext &context)
	Reads common properties of this object from DOM element.
void	writeXmlBaseProperties (QDomElement &elem, const QgsReadWriteContext &context) const
	Writes common properties of this object to DOM element.
Protected Member Functions inherited from QgsAbstract3DRenderer
	QgsAbstract3DRenderer ()=default
	Default constructor.

Detailed Description

3

Base class for 3D renderers that are based on vector layers.

Since

QGIS 3.12

Definition at line 77 of file qgsabstractvectorlayer3drenderer.h.

Constructor & Destructor Documentation

QgsAbstractVectorLayer3DRenderer()

QgsAbstractVectorLayer3DRenderer::QgsAbstractVectorLayer3DRenderer ( )

default

Member Function Documentation

copyBaseProperties()

void QgsAbstractVectorLayer3DRenderer::copyBaseProperties ( QgsAbstractVectorLayer3DRenderer *  r ) const

protected

Copies common properties of this object to another object.

Definition at line 58 of file qgsabstractvectorlayer3drenderer.cpp.

layer()

QgsVectorLayer * QgsAbstractVectorLayer3DRenderer::layer

(

)

const

Returns vector layer associated with the renderer.

Definition at line 53 of file qgsabstractvectorlayer3drenderer.cpp.

readXmlBaseProperties()

void QgsAbstractVectorLayer3DRenderer::readXmlBaseProperties ( const QDomElement &  elem, const QgsReadWriteContext &  context  )

protected

Reads common properties of this object from DOM element.

Definition at line 71 of file qgsabstractvectorlayer3drenderer.cpp.

resolveReferences()

void QgsAbstractVectorLayer3DRenderer::resolveReferences ( const QgsProject &  project )

overridevirtual

Resolves references to other objects - second phase of loading - after readXml()

Reimplemented from QgsAbstract3DRenderer.

Definition at line 78 of file qgsabstractvectorlayer3drenderer.cpp.

setLayer()

void QgsAbstractVectorLayer3DRenderer::setLayer

(

QgsVectorLayer *

layer

)

Sets vector layer associated with the renderer.

Definition at line 48 of file qgsabstractvectorlayer3drenderer.cpp.

setTilingSettings()

void QgsAbstractVectorLayer3DRenderer::setTilingSettings ( const QgsVectorLayer3DTilingSettings &  settings )

inline

Sets tiling settings of the renderer.

Definition at line 88 of file qgsabstractvectorlayer3drenderer.h.

tilingSettings()

QgsVectorLayer3DTilingSettings QgsAbstractVectorLayer3DRenderer::tilingSettings ( ) const

inline

Returns tiling settings of the renderer.

Definition at line 90 of file qgsabstractvectorlayer3drenderer.h.

writeXmlBaseProperties()

void QgsAbstractVectorLayer3DRenderer::writeXmlBaseProperties ( QDomElement &  elem, const QgsReadWriteContext &  context  ) const

protected

Writes common properties of this object to DOM element.

Definition at line 64 of file qgsabstractvectorlayer3drenderer.cpp.

---

The documentation for this class was generated from the following files:

• /build/qgis-3.36.0+99sid/src/3d/qgsabstractvectorlayer3drenderer.h
• /build/qgis-3.36.0+99sid/src/3d/qgsabstractvectorlayer3drenderer.cpp
