QgsOWSSourceWidget Class Reference

This widget sets and updates OWS layers source URI. More...

#include <qgsowssourcewidget.h>

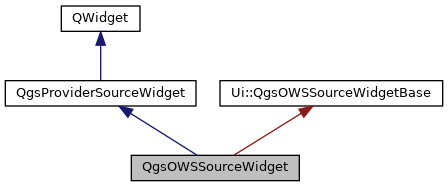

Inheritance diagram for QgsOWSSourceWidget:

Public Member Functions
	QgsOWSSourceWidget (const QString &providerKey, QWidget *parent=nullptr)
	Constructor for QgsOWSSourceWidget with the specified provider key and parent widget. More...
QgsRectangle	extent () const
	Returns the spatial extent from the widget extent box. More...
void	setExtent (const QgsRectangle &extent)
	Sets the spatial extent in the widget extent box. More...
void	setMapCanvas (QgsMapCanvas *canvas) override
	Sets a map canvas associated with the widget. More...
void	setSourceUri (const QString &uri) override
	Sets the source uri to show in the widget. More...
QString	sourceUri () const override
	Returns the source URI as currently defined by the widget. More...
Public Member Functions inherited from QgsProviderSourceWidget
	QgsProviderSourceWidget (QWidget *parent=nullptr)
	Constructor for QgsProviderSourceWidget with the specified parent widget. More...
virtual QgsMapCanvas *	mapCanvas ()
	Returns the map canvas associated with the widget. More...
virtual void	setMapCanvas (QgsMapCanvas *mapCanvas)
	Sets a map canvas associated with the widget. More...
virtual void	setSourceUri (const QString &uri)=0
	Sets the source uri to show in the widget. More...
virtual QString	sourceUri () const =0
	Returns the source URI as currently defined by the widget. More...

Additional Inherited Members
Signals inherited from QgsProviderSourceWidget
void	changed ()
	Emitted whenever the configuration of the widget changes. More...
void	validChanged (bool isValid)
	Emitted whenever the validation status of the widget changes. More...

Detailed Description

This widget sets and updates OWS layers source URI.

Since

QGIS 3.26

Definition at line 34 of file qgsowssourcewidget.h.

Constructor & Destructor Documentation

QgsOWSSourceWidget()

QgsOWSSourceWidget::QgsOWSSourceWidget	(	const QString &	providerKey,
		QWidget *	parent = nullptr
	)

Constructor for QgsOWSSourceWidget with the specified provider key and parent widget.

Definition at line 25 of file qgsowssourcewidget.cpp.

Member Function Documentation

extent()

QgsRectangle QgsOWSSourceWidget::extent

(

)

const

Returns the spatial extent from the widget extent box.

Since

QGIS 3.26

Definition at line 69 of file qgsowssourcewidget.cpp.

setExtent()

void QgsOWSSourceWidget::setExtent

(

const QgsRectangle &

extent

)

Sets the spatial extent in the widget extent box.

Since

QGIS 3.26

Definition at line 54 of file qgsowssourcewidget.cpp.

setMapCanvas()

void QgsOWSSourceWidget::setMapCanvas ( QgsMapCanvas *  mapCanvas )

overridevirtual

Sets a map canvas associated with the widget.

Since

QGIS 3.26

Reimplemented from QgsProviderSourceWidget.

Definition at line 37 of file qgsowssourcewidget.cpp.

setSourceUri()

void QgsOWSSourceWidget::setSourceUri ( const QString &  uri )

overridevirtual

Sets the source uri to show in the widget.

See also

sourceUri()

Implements QgsProviderSourceWidget.

Definition at line 74 of file qgsowssourcewidget.cpp.

sourceUri()

QString QgsOWSSourceWidget::sourceUri ( ) const

overridevirtual

Returns the source URI as currently defined by the widget.

See also

setSourceUri()

Implements QgsProviderSourceWidget.

Definition at line 104 of file qgsowssourcewidget.cpp.

---

The documentation for this class was generated from the following files:

• /build/qgis-3.32.0+99sid/src/gui/qgsowssourcewidget.h
• /build/qgis-3.32.0+99sid/src/gui/qgsowssourcewidget.cpp
