A dialog for customizing the properties of an exported PDF file from a layout. More...

#include <qgslayoutpdfexportoptionsdialog.h>

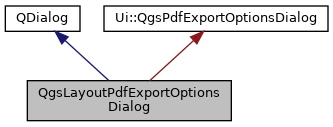

Inheritance diagram for QgsLayoutPdfExportOptionsDialog:

Public Member Functions
	QgsLayoutPdfExportOptionsDialog (QWidget *parent=nullptr, bool allowGeoPdfExport=true, const QString &geoPdfReason=QString(), const QStringList &geoPdfLayerOrder=QStringList(), Qt::WindowFlags flags=Qt::WindowFlags())
	Constructor for QgsLayoutPdfExportOptionsDialog. More...

void	enableGeoreferencingOptions (bool enabled)
	Sets whether to enable georeferencing options. More...

bool	exportGeoPdf () const
	Returns whether Geo-PDF export is enabled. More...

QStringList	exportThemes () const
	Returns the list of export themes. More...

bool	forceVector () const
	Returns whether vector output is being forced. More...

bool	geometriesSimplified () const
	Returns whether geometry simplification is enabled. More...

QStringList	geoPdfLayerOrder () const
	Returns a list of map layer IDs in the desired order they should appear in a generated GeoPDF file. More...

bool	georeferencingEnabled () const
	Returns whether georeferencing is enabled. More...

bool	losslessImageExport () const
	Returns whether lossless image compression is enabled. More...

bool	metadataEnabled () const
	Returns whether metadata is enabled. More...

bool	rasterTilingDisabled () const
	Returns whether raster tiling is disabled. More...

void	setExportGeoPdf (bool enabled)
	Sets whether to export a Geo-PDF. More...

void	setExportThemes (const QStringList &themes)
	Sets the list of export themes. More...

void	setForceVector (bool force)
	Set whether to force vector output. More...

void	setGeometriesSimplified (bool enabled)
	Sets whether to simplify geometries. More...

void	setGeoreferencingEnabled (bool enabled)
	Sets whether to enable georeferencing. More...

void	setLosslessImageExport (bool enabled)
	Sets whether to use lossless image compression. More...

void	setMetadataEnabled (bool enabled)
	Sets whether to enable metadata. More...

void	setRasterTilingDisabled (bool disabled)
	Sets whether to disable raster tiling. More...

void	setTextRenderFormat (Qgis::TextRenderFormat format)
	Sets the text render format. More...

void	setUseOgcBestPracticeFormat (bool enabled)
	Sets whether to use OGC best-practice format. More...

Qgis::TextRenderFormat	textRenderFormat () const
	Returns the current text render format. More...

bool	useOgcBestPracticeFormat () const
	Returns whether use of OGC best-practice format is enabled. More...

Detailed Description

A dialog for customizing the properties of an exported PDF file from a layout.

Note: This class is not a part of public API

Since: QGIS 3.12

Definition at line 39 of file qgslayoutpdfexportoptionsdialog.h.

Constructor & Destructor Documentation

◆ QgsLayoutPdfExportOptionsDialog()

QgsLayoutPdfExportOptionsDialog::QgsLayoutPdfExportOptionsDialog	(	QWidget *	parent = `nullptr`,
		bool	allowGeoPdfExport = `true`,
		const QString &	geoPdfReason = `QString()`,
		const QStringList &	geoPdfLayerOrder = `QStringList()`,
		Qt::WindowFlags	flags = `Qt::WindowFlags()`
	)

Constructor for QgsLayoutPdfExportOptionsDialog.

Parameters

parent	parent widget
allowGeoPdfExport	set to `false` if geoPdf export is blocked
geoPdfReason	set to a descriptive translated string explaining why geopdf export is not available if applicable
geoPdfLayerOrder	optional layer ID order list for layers in the geopdf file. Any layers not present in this list will instead be appended to the end of the geopdf layer list
flags	window flags

Definition at line 32 of file qgslayoutpdfexportoptionsdialog.cpp.

Member Function Documentation

◆ enableGeoreferencingOptions()

void QgsLayoutPdfExportOptionsDialog::enableGeoreferencingOptions ( bool enabled )

Sets whether to enable georeferencing options.

Definition at line 131 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ exportGeoPdf()

bool QgsLayoutPdfExportOptionsDialog::exportGeoPdf ( ) const

Returns whether Geo-PDF export is enabled.

Definition at line 194 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ exportThemes()

QStringList QgsLayoutPdfExportOptionsDialog::exportThemes ( ) const

Returns the list of export themes.

Definition at line 235 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ forceVector()

bool QgsLayoutPdfExportOptionsDialog::forceVector ( ) const

Returns whether vector output is being forced.

Definition at line 126 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ geometriesSimplified()

bool QgsLayoutPdfExportOptionsDialog::geometriesSimplified ( ) const

Returns whether geometry simplification is enabled.

Definition at line 171 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ geoPdfLayerOrder()

QStringList QgsLayoutPdfExportOptionsDialog::geoPdfLayerOrder ( ) const

Returns a list of map layer IDs in the desired order they should appear in a generated GeoPDF file.

Definition at line 254 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ georeferencingEnabled()

bool QgsLayoutPdfExportOptionsDialog::georeferencingEnabled ( ) const

Returns whether georeferencing is enabled.

Definition at line 141 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ losslessImageExport()

bool QgsLayoutPdfExportOptionsDialog::losslessImageExport ( ) const

Returns whether lossless image compression is enabled.

Definition at line 181 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ metadataEnabled()

bool QgsLayoutPdfExportOptionsDialog::metadataEnabled ( ) const

Returns whether metadata is enabled.

Definition at line 151 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ rasterTilingDisabled()

bool QgsLayoutPdfExportOptionsDialog::rasterTilingDisabled ( ) const

Returns whether raster tiling is disabled.

Definition at line 161 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ setExportGeoPdf()

void QgsLayoutPdfExportOptionsDialog::setExportGeoPdf ( bool enabled )

Sets whether to export a Geo-PDF.

Definition at line 186 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ setExportThemes()

void QgsLayoutPdfExportOptionsDialog::setExportThemes ( const QStringList & themes )

Sets the list of export themes.

Definition at line 222 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ setForceVector()

void QgsLayoutPdfExportOptionsDialog::setForceVector ( bool force )

Set whether to force vector output.

Definition at line 121 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ setGeometriesSimplified()

void QgsLayoutPdfExportOptionsDialog::setGeometriesSimplified ( bool enabled )

Sets whether to simplify geometries.

Definition at line 166 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ setGeoreferencingEnabled()

void QgsLayoutPdfExportOptionsDialog::setGeoreferencingEnabled ( bool enabled )

Sets whether to enable georeferencing.

Definition at line 136 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ setLosslessImageExport()

void QgsLayoutPdfExportOptionsDialog::setLosslessImageExport ( bool enabled )

Sets whether to use lossless image compression.

Definition at line 176 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ setMetadataEnabled()

void QgsLayoutPdfExportOptionsDialog::setMetadataEnabled ( bool enabled )

Sets whether to enable metadata.

Definition at line 146 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ setRasterTilingDisabled()

void QgsLayoutPdfExportOptionsDialog::setRasterTilingDisabled ( bool disabled )

Sets whether to disable raster tiling.

Definition at line 156 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ setTextRenderFormat()

void QgsLayoutPdfExportOptionsDialog::setTextRenderFormat ( Qgis::TextRenderFormat format )

Sets the text render format.

Definition at line 111 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ setUseOgcBestPracticeFormat()

void QgsLayoutPdfExportOptionsDialog::setUseOgcBestPracticeFormat ( bool enabled )

Sets whether to use OGC best-practice format.

Definition at line 202 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ textRenderFormat()

Qgis::TextRenderFormat QgsLayoutPdfExportOptionsDialog::textRenderFormat ( ) const

Returns the current text render format.

Definition at line 116 of file qgslayoutpdfexportoptionsdialog.cpp.

◆ useOgcBestPracticeFormat()

bool QgsLayoutPdfExportOptionsDialog::useOgcBestPracticeFormat ( ) const

Returns whether use of OGC best-practice format is enabled.

Definition at line 213 of file qgslayoutpdfexportoptionsdialog.cpp.

The documentation for this class was generated from the following files:

/build/qgis-3.32.0+99sid/src/gui/layout/qgslayoutpdfexportoptionsdialog.h
/build/qgis-3.32.0+99sid/src/gui/layout/qgslayoutpdfexportoptionsdialog.cpp
