QgsAttributesFormProperties Class Reference

#include <qgsattributesformproperties.h>

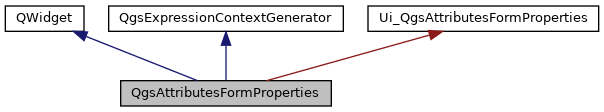

Inheritance diagram for QgsAttributesFormProperties:

Classes
class	DnDTreeItemData
struct	FieldConfig
	Holds the configuration for a field. More...
struct	HtmlElementEditorConfiguration
struct	QmlElementEditorConfiguration
struct	RelationEditorConfiguration
struct	SpacerElementEditorConfiguration
struct	TextElementEditorConfiguration

Public Types
enum	FieldPropertiesRoles { DnDTreeRole = Qt::UserRole , FieldConfigRole , FieldNameRole }

Public Member Functions
	QgsAttributesFormProperties (QgsVectorLayer *layer, QWidget *parent=nullptr)
void	apply ()
QgsAttributeEditorElement *	createAttributeEditorWidget (QTreeWidgetItem *item, QgsAttributeEditorElement *parent, bool isTopLevel=false)
	Creates a new attribute editor element based on the definition stored in item. More...
QgsExpressionContext	createExpressionContext () const override
	This method needs to be reimplemented in all classes which implement this interface and return an expression context. More...
void	init ()
void	initAvailableWidgetsTree ()
void	initFormLayoutTree ()
void	initInitPython ()
void	initLayoutConfig ()
void	initSuppressCombo ()
void	loadRelations ()
Public Member Functions inherited from QgsExpressionContextGenerator
virtual	~QgsExpressionContextGenerator ()=default
virtual QgsExpressionContext	createExpressionContext () const =0
	This method needs to be reimplemented in all classes which implement this interface and return an expression context. More...

Protected Member Functions
void	updateButtons ()

Protected Attributes
QgsAttributeFormContainerEdit *	mAttributeContainerEdit = nullptr
QgsAttributeTypeDialog *	mAttributeTypeDialog = nullptr
QgsAttributeWidgetEdit *	mAttributeWidgetEdit = nullptr
QgsAttributesDnDTree *	mAvailableWidgetsTree = nullptr
QgsAttributesDnDTree *	mFormLayoutTree = nullptr
QLabel *	mInfoTextWidget = nullptr
QgsVectorLayer *	mLayer = nullptr

Detailed Description

Definition at line 53 of file qgsattributesformproperties.h.

Member Enumeration Documentation

FieldPropertiesRoles

enum QgsAttributesFormProperties::FieldPropertiesRoles

Enumerator
DnDTreeRole
FieldConfigRole
FieldNameRole

Definition at line 59 of file qgsattributesformproperties.h.

Constructor & Destructor Documentation

QgsAttributesFormProperties()

QgsAttributesFormProperties::QgsAttributesFormProperties ( QgsVectorLayer *  layer, QWidget *  parent = nullptr  )

explicit

Definition at line 42 of file qgsattributesformproperties.cpp.

Member Function Documentation

apply()

void QgsAttributesFormProperties::apply

(

)

Definition at line 936 of file qgsattributesformproperties.cpp.

createAttributeEditorWidget()

QgsAttributeEditorElement * QgsAttributesFormProperties::createAttributeEditorWidget	(	QTreeWidgetItem *	item,
		QgsAttributeEditorElement *	parent,
		bool	isTopLevel = false
	)

Creates a new attribute editor element based on the definition stored in item.

Definition at line 758 of file qgsattributesformproperties.cpp.

createExpressionContext()

QgsExpressionContext QgsAttributesFormProperties::createExpressionContext ( ) const

overridevirtual

This method needs to be reimplemented in all classes which implement this interface and return an expression context.

Since

QGIS 3.0

Implements QgsExpressionContextGenerator.

Definition at line 221 of file qgsattributesformproperties.cpp.

init()

void QgsAttributesFormProperties::init

(

)

Definition at line 84 of file qgsattributesformproperties.cpp.

initAvailableWidgetsTree()

void QgsAttributesFormProperties::initAvailableWidgetsTree

(

)

Definition at line 94 of file qgsattributesformproperties.cpp.

initFormLayoutTree()

void QgsAttributesFormProperties::initFormLayoutTree

(

)

Definition at line 187 of file qgsattributesformproperties.cpp.

initInitPython()

void QgsAttributesFormProperties::initInitPython

(

)

Definition at line 238 of file qgsattributesformproperties.cpp.

initLayoutConfig()

void QgsAttributesFormProperties::initLayoutConfig

(

)

Definition at line 228 of file qgsattributesformproperties.cpp.

initSuppressCombo()

void QgsAttributesFormProperties::initSuppressCombo

(

)

Definition at line 205 of file qgsattributesformproperties.cpp.

loadRelations()

void QgsAttributesFormProperties::loadRelations

(

)

updateButtons()

void QgsAttributesFormProperties::updateButtons ( )

protected

Member Data Documentation

mAttributeContainerEdit

QgsAttributeFormContainerEdit* QgsAttributesFormProperties::mAttributeContainerEdit = nullptr

protected

Definition at line 378 of file qgsattributesformproperties.h.

mAttributeTypeDialog

QgsAttributeTypeDialog* QgsAttributesFormProperties::mAttributeTypeDialog = nullptr

protected

Definition at line 377 of file qgsattributesformproperties.h.

mAttributeWidgetEdit

QgsAttributeWidgetEdit* QgsAttributesFormProperties::mAttributeWidgetEdit = nullptr

protected

Definition at line 376 of file qgsattributesformproperties.h.

mAvailableWidgetsTree

QgsAttributesDnDTree* QgsAttributesFormProperties::mAvailableWidgetsTree = nullptr

protected

Definition at line 373 of file qgsattributesformproperties.h.

mFormLayoutTree

QgsAttributesDnDTree* QgsAttributesFormProperties::mFormLayoutTree = nullptr

protected

Definition at line 374 of file qgsattributesformproperties.h.

mInfoTextWidget

QLabel* QgsAttributesFormProperties::mInfoTextWidget = nullptr

protected

Definition at line 379 of file qgsattributesformproperties.h.

mLayer

QgsVectorLayer* QgsAttributesFormProperties::mLayer = nullptr

protected

Definition at line 371 of file qgsattributesformproperties.h.

---

The documentation for this class was generated from the following files:

• /build/qgis-3.32.0+99sid/src/gui/vector/qgsattributesformproperties.h
• /build/qgis-3.32.0+99sid/src/gui/vector/qgsattributesformproperties.cpp
