QgsTableWidgetBase Class Reference

Base widget allowing to edit a collection, using a table. More...

#include <qgstablewidgetbase.h>

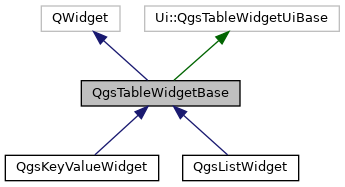

Inheritance diagram for QgsTableWidgetBase:

Signals
void	valueChanged ()
	Emitted each time a key or a value is changed. More...

Public Member Functions
	QgsTableWidgetBase (QWidget *parent)
	Constructor. More...

Protected Member Functions
void	init (QAbstractTableModel *model)
	Initialize the table with the given model. More...

Friends
class	TestQgsKeyValueWidget
class	TestQgsListWidget

Detailed Description

Base widget allowing to edit a collection, using a table.

This widget includes buttons to add and remove rows. Child classes must call init(QAbstractTableModel*) from their constructor.

Since

QGIS 3.0

Definition at line 33 of file qgstablewidgetbase.h.

Constructor & Destructor Documentation

QgsTableWidgetBase()

QgsTableWidgetBase::QgsTableWidgetBase ( QWidget *  parent )

explicit

Constructor.

Definition at line 18 of file qgstablewidgetbase.cpp.

Member Function Documentation

init()

void QgsTableWidgetBase::init ( QAbstractTableModel *  model )

protected

Initialize the table with the given model.

Must be called once in the child class' constructor.

Definition at line 26 of file qgstablewidgetbase.cpp.

valueChanged

void QgsTableWidgetBase::valueChanged ( )

signal

Emitted each time a key or a value is changed.

Friends And Related Function Documentation

TestQgsKeyValueWidget

friend class TestQgsKeyValueWidget

friend

Definition at line 75 of file qgstablewidgetbase.h.

TestQgsListWidget

friend class TestQgsListWidget

friend

Definition at line 76 of file qgstablewidgetbase.h.

---

The documentation for this class was generated from the following files:

• /build/qgis-3.20.0+99unstable/src/gui/qgstablewidgetbase.h
• /build/qgis-3.20.0+99unstable/src/gui/qgstablewidgetbase.cpp
