SQL composer dialog. More...

#include <qgssqlcomposerdialog.h>

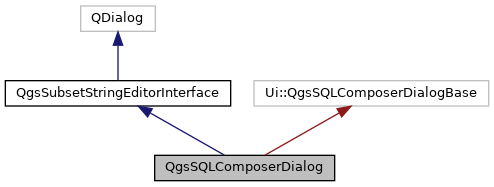

Inheritance diagram for QgsSQLComposerDialog:

[legend]

Classes
struct	Argument
	argument of a function More...

struct	Function
	description of server functions More...

class	SQLValidatorCallback
	Callback to do validation check on dialog validation. More...

class	TableSelectedCallback
	Callback to do actions on table selection. More...

Public Types
typedef QPair< QString, QString >	PairNameTitle
	pair (name, title) More...

typedef QPair< QString, QString >	PairNameType
	pair (name, type) More...

Public Member Functions
	QgsSQLComposerDialog (QgsVectorLayer layer, QWidget parent=nullptr, Qt::WindowFlags fl=QgsGuiUtils::ModalDialogFlags)
	This constructor is used on an existing layer. More...

	QgsSQLComposerDialog (QWidget *parent=nullptr, Qt::WindowFlags fl=QgsGuiUtils::ModalDialogFlags)
	constructor More...

	~QgsSQLComposerDialog () override

void	addApis (const QStringList &list)
	add a list of API for autocompletion More...

void	addColumnNames (const QList< PairNameType > &list, const QString &tableName)
	add a list of column names More...

void	addColumnNames (const QStringList &list, const QString &tableName)
	add a list of column names More...

void	addFunctions (const QList< Function > &list)
	add a list of functions More...

void	addFunctions (const QStringList &list)
	add a list of functions More...

void	addOperators (const QStringList &list)
	add a list of operators More...

void	addSpatialPredicates (const QList< Function > &list)
	add a list of spatial predicates More...

void	addSpatialPredicates (const QStringList &list)
	add a list of spatial predicates More...

void	addTableNames (const QList< PairNameTitle > &listNameTitle)
	add a list of table names More...

void	addTableNames (const QStringList &list)
	add a list of table names More...

void	setSql (const QString &sql)
	initialize the SQL statement More...

void	setSQLValidatorCallback (SQLValidatorCallback *sqlValidatorCallback)
	Set a callback that will be called when the OK button is pushed. More...

void	setSubsetString (const QString &subsetString) override
	Sets a subset string into the dialog. More...

void	setSupportMultipleTables (bool bMultipleTables, const QString &mainTypename=QString())
	Sets if multiple tables/joins are supported. Default is `false`. More...

void	setTableSelectedCallback (TableSelectedCallback *tableSelectedCallback)
	Set a callback that will be called when a new table is selected, so that new column names can be added typically. More...

QString	sql () const
	Gets the SQL statement. More...

QString	subsetString () const override
	Returns the subset string entered in the dialog. More...

Public Member Functions inherited from QgsSubsetStringEditorInterface
	QgsSubsetStringEditorInterface (QWidget *parent=nullptr, Qt::WindowFlags fl=QgsGuiUtils::ModalDialogFlags)
	Constructor. More...

Protected Member Functions
bool	eventFilter (QObject obj, QEvent event) override

Detailed Description

SQL composer dialog.

Note: not available in Python bindings

Definition at line 41 of file qgssqlcomposerdialog.h.

Member Typedef Documentation

◆ PairNameTitle

typedef QPair<QString, QString> QgsSQLComposerDialog::PairNameTitle

pair (name, title)

Definition at line 48 of file qgssqlcomposerdialog.h.

◆ PairNameType

typedef QPair<QString, QString> QgsSQLComposerDialog::PairNameType

pair (name, type)

Definition at line 51 of file qgssqlcomposerdialog.h.

Constructor & Destructor Documentation

◆ QgsSQLComposerDialog() [1/2]

QgsSQLComposerDialog::QgsSQLComposerDialog	(	QWidget *	parent = `nullptr`,
		Qt::WindowFlags	fl = `QgsGuiUtils::ModalDialogFlags`
	)

explicit

constructor

Definition at line 31 of file qgssqlcomposerdialog.cpp.

◆ QgsSQLComposerDialog() [2/2]

QgsSQLComposerDialog::QgsSQLComposerDialog	(	QgsVectorLayer *	layer,
		QWidget *	parent = `nullptr`,
		Qt::WindowFlags	fl = `QgsGuiUtils::ModalDialogFlags`
	)

This constructor is used on an existing layer.

On successful accept, it will update the layer subset string.

Parameters

layer	existing vector layer
parent	Parent widget
fl	dialog flags

Definition at line 35 of file qgssqlcomposerdialog.cpp.

◆ ~QgsSQLComposerDialog()

QgsSQLComposerDialog::~QgsSQLComposerDialog ( )

override

Definition at line 126 of file qgssqlcomposerdialog.cpp.

Member Function Documentation

◆ addApis()

void QgsSQLComposerDialog::addApis ( const QStringList & list )

add a list of API for autocompletion

Definition at line 772 of file qgssqlcomposerdialog.cpp.

◆ addColumnNames() [1/2]

void QgsSQLComposerDialog::addColumnNames	(	const QList< PairNameType > &	list,
		const QString &	tableName
	)

add a list of column names

Definition at line 405 of file qgssqlcomposerdialog.cpp.

◆ addColumnNames() [2/2]

void QgsSQLComposerDialog::addColumnNames	(	const QStringList &	list,
		const QString &	tableName
	)

add a list of column names

Definition at line 385 of file qgssqlcomposerdialog.cpp.

◆ addFunctions() [1/2]

void QgsSQLComposerDialog::addFunctions ( const QList< Function > & list )

add a list of functions

Definition at line 554 of file qgssqlcomposerdialog.cpp.

◆ addFunctions() [2/2]

void QgsSQLComposerDialog::addFunctions ( const QStringList & list )

add a list of functions

Definition at line 541 of file qgssqlcomposerdialog.cpp.

◆ addOperators()

void QgsSQLComposerDialog::addOperators ( const QStringList & list )

add a list of operators

Definition at line 430 of file qgssqlcomposerdialog.cpp.

◆ addSpatialPredicates() [1/2]

void QgsSQLComposerDialog::addSpatialPredicates ( const QList< Function > & list )

add a list of spatial predicates

Definition at line 531 of file qgssqlcomposerdialog.cpp.

◆ addSpatialPredicates() [2/2]

void QgsSQLComposerDialog::addSpatialPredicates ( const QStringList & list )

add a list of spatial predicates

Definition at line 518 of file qgssqlcomposerdialog.cpp.

◆ addTableNames() [1/2]

void QgsSQLComposerDialog::addTableNames ( const QList< PairNameTitle > & listNameTitle )

add a list of table names

Definition at line 362 of file qgssqlcomposerdialog.cpp.

◆ addTableNames() [2/2]

void QgsSQLComposerDialog::addTableNames ( const QStringList & list )

add a list of table names

Definition at line 353 of file qgssqlcomposerdialog.cpp.

◆ eventFilter()

bool QgsSQLComposerDialog::eventFilter	(	QObject *	obj,
		QEvent *	event
	)

overrideprotected

Definition at line 135 of file qgssqlcomposerdialog.cpp.

◆ setSql()

void QgsSQLComposerDialog::setSql ( const QString & sql )

initialize the SQL statement

Definition at line 202 of file qgssqlcomposerdialog.cpp.

◆ setSQLValidatorCallback()

void QgsSQLComposerDialog::setSQLValidatorCallback ( SQLValidatorCallback * sqlValidatorCallback )

Set a callback that will be called when the OK button is pushed.

Ownership of the callback remains to the caller.

Definition at line 197 of file qgssqlcomposerdialog.cpp.

◆ setSubsetString()

void QgsSQLComposerDialog::setSubsetString ( const QString & subsetString )

inlineoverridevirtual

Sets a subset string into the dialog.

Implements QgsSubsetStringEditorInterface.

Definition at line 133 of file qgssqlcomposerdialog.h.

◆ setSupportMultipleTables()

void QgsSQLComposerDialog::setSupportMultipleTables	(	bool	bMultipleTables,
		const QString &	mainTypename = `QString()`
	)

Sets if multiple tables/joins are supported. Default is false.

Definition at line 789 of file qgssqlcomposerdialog.cpp.

◆ setTableSelectedCallback()

void QgsSQLComposerDialog::setTableSelectedCallback ( TableSelectedCallback * tableSelectedCallback )

Set a callback that will be called when a new table is selected, so that new column names can be added typically.

Ownership of the callback remains to the caller.

Definition at line 192 of file qgssqlcomposerdialog.cpp.

◆ sql()

QString QgsSQLComposerDialog::sql ( ) const

Gets the SQL statement.

Definition at line 208 of file qgssqlcomposerdialog.cpp.

◆ subsetString()

QString QgsSQLComposerDialog::subsetString ( ) const
