A widget which allows choice of numeric formats and the properties of them. More...
#include <qgsnumericformatselectorwidget.h>

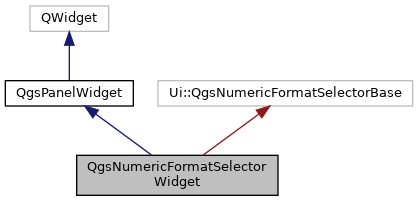

Inheritance diagram for QgsNumericFormatSelectorWidget:
Signals | |
| void | changed () |
| Emitted whenever the format configured55 in the widget is changed. More... | |
 Signals inherited from QgsPanelWidget | |
| void | panelAccepted (QgsPanelWidget *panel) |
| Emitted when the panel is accepted by the user. More... | |
| void | showPanel (QgsPanelWidget *panel) |
| Emit when you require a panel to be show in the interface. More... | |
| void | widgetChanged () |
| Emitted when the widget state changes. More... | |
Public Member Functions | |
| QgsNumericFormatSelectorWidget (QWidget *parent=nullptr) | |
| Constructor for QgsNumericFormatSelectorWidget with the specified parent widget. More... | |
| ~QgsNumericFormatSelectorWidget () override | |
| QgsNumericFormat * | format () const |
| Returns a new format object representing the settings currently configured in the widget. More... | |
| void | setFormat (const QgsNumericFormat *format) |
| Sets the format to show in the widget. More... | |
| Public Member Functions inherited from QgsPanelWidget | |
| QgsPanelWidget (QWidget *parent=nullptr) | |
| Base class for any widget that can be shown as a inline panel. More... | |
| bool | autoDelete () |
| The the auto delete property on the widget. More... | |
| void | connectChildPanel (QgsPanelWidget *panel) |
| Connect the given sub panel widgets showPanel signals to this current panels main showPanel event to bubble up to the user. More... | |
| void | connectChildPanels (const QList< QgsPanelWidget * > &panels) |
| Connect the given sub panel widgets showPanel signals to this current panels main showPanel event to bubble up to the user. More... | |
| bool | dockMode () |
| Returns the dock mode state. More... | |
| virtual QMenu * | menuButtonMenu () |
Returns the menu to use for the menu button for this panel, or nullptr if no menu button is required. More... | |
| virtual QString | menuButtonTooltip () const |
| Returns the (translated) tooltip text to use for the menu button for this panel. More... | |
| QString | panelTitle () |
| The title of the panel. More... | |
| void | setAutoDelete (bool autoDelete) |
| The the auto delete property on the widget. More... | |
| virtual void | setDockMode (bool dockMode) |
| Set the widget in dock mode which tells the widget to emit panel widgets and not open dialogs. More... | |
| void | setPanelTitle (const QString &panelTitle) |
| Set the title of the panel when shown in the interface. More... | |
Additional Inherited Members | |
| Public Slots inherited from QgsPanelWidget | |
| void | acceptPanel () |
| Accept the panel. More... | |
| void | openPanel (QgsPanelWidget *panel) |
Open a panel or dialog depending on dock mode setting If dock mode is true this method will emit the showPanel signal for connected slots to handle the open event. More... | |
| Static Public Member Functions inherited from QgsPanelWidget | |
| static QgsPanelWidget * | findParentPanel (QWidget *widget) |
| Traces through the parents of a widget to find if it is contained within a QgsPanelWidget widget. More... | |
| Protected Member Functions inherited from QgsPanelWidget | |
| void | keyPressEvent (QKeyEvent *event) override |
| Overridden key press event to handle the esc event on the widget. More... | |
Detailed Description
A widget which allows choice of numeric formats and the properties of them.
- Since
- QGIS 3.12
Definition at line 34 of file qgsnumericformatselectorwidget.h.
Constructor & Destructor Documentation
◆ QgsNumericFormatSelectorWidget()
| QgsNumericFormatSelectorWidget::QgsNumericFormatSelectorWidget | ( | QWidget * | parent = nullptr | ) |
Constructor for QgsNumericFormatSelectorWidget with the specified parent widget.
Definition at line 29 of file qgsnumericformatselectorwidget.cpp.
◆ ~QgsNumericFormatSelectorWidget()
|
overridedefault |
Member Function Documentation
◆ changed
|
signal |
Emitted whenever the format configured55 in the widget is changed.
◆ format()
| QgsNumericFormat * QgsNumericFormatSelectorWidget::format | ( | ) | const |
Returns a new format object representing the settings currently configured in the widget.
The caller takes ownership of the returned object.
Definition at line 73 of file qgsnumericformatselectorwidget.cpp.
◆ setFormat()
| void QgsNumericFormatSelectorWidget::setFormat | ( | const QgsNumericFormat * | format | ) |
Sets the format to show in the widget.
Definition at line 51 of file qgsnumericformatselectorwidget.cpp.
The documentation for this class was generated from the following files:
- /build/qgis-3.18.1+99unstable/src/gui/numericformats/qgsnumericformatselectorwidget.h
- /build/qgis-3.18.1+99unstable/src/gui/numericformats/qgsnumericformatselectorwidget.cpp
