Abstract class that represents a dataset group. More...

#include <qgsmeshdataset.h>

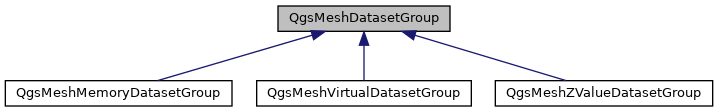

Inheritance diagram for QgsMeshDatasetGroup:

[legend]

Public Types
enum	Type { None , Persistent , Memory , Virtual }
	Type of the dataset group. More...

Public Member Functions
	QgsMeshDatasetGroup ()=default
	Default constructor. More...

	QgsMeshDatasetGroup (const QString &name)
	Constructor with the name of the dataset group. More...

	QgsMeshDatasetGroup (const QString &name, QgsMeshDatasetGroupMetadata::DataType dataType)
	Constructor with the name of the dataset group and the dataTYpe. More...

virtual	~QgsMeshDatasetGroup ()

void	addExtraMetadata (QString key, QString value)
	Adds extra metadata to the group. More...

void	calculateStatistic ()
	Calculates the statistics (minimum and maximum) More...

bool	checkValueCountPerDataset (int count) const
	Returns whether all the datasets contain count values. More...

virtual QgsMeshDataset *	dataset (int index) const =0
	Returns the dataset with index. More...

virtual int	datasetCount () const =0
	Returns the count of datasets in the group. More...

virtual QStringList	datasetGroupNamesDependentOn () const
	Returns the dataset group variable name which this dataset group depends on. More...

virtual QgsMeshDatasetMetadata	datasetMetadata (int datasetIndex) const =0
	Returns the metadata of the dataset with index datasetIndex. More...

QgsMeshDatasetGroupMetadata::DataType	dataType () const
	Returns the data type of the dataset group. More...

virtual QString	description () const
	Returns some information about the dataset group. More...

QMap< QString, QString >	extraMetadata () const
	Returns all the extra metadata of the group. More...

QgsMeshDatasetGroupMetadata	groupMetadata () const
	Returns the metadata of the dataset group. More...

virtual void	initialize ()=0
	Initialize the dataset group. More...

bool	isScalar () const
	Returns whether the group contain scalar values. More...

double	maximum () const
	Returns the maximum value of the whole dataset group. More...

double	minimum () const
	Returns the minimum value of the whole dataset group. More...

QString	name () const
	Returns the name of the dataset group. More...

void	setDataType (const QgsMeshDatasetGroupMetadata::DataType &dataType)
	Sets the data type of the dataset group. More...

void	setIsScalar (bool isScalar)
	Sets whether the group contain scalar values. More...

void	setMinimumMaximum (double min, double max)
	Overrides the minimum and the maximum value of the whole dataset group. More...

void	setName (const QString &name)
	Sets the name of the dataset group. More...

void	setReferenceTime (const QDateTime &referenceTime)
	Sets the reference time of the dataset group. More...

virtual QgsMeshDatasetGroup::Type	type () const =0
	Returns the type of dataset group. More...

virtual QDomElement	writeXml (QDomDocument &doc, const QgsReadWriteContext &context) const =0
	Write dataset group information in a DOM element. More...

Protected Attributes
QgsMeshDatasetGroupMetadata::DataType	mDataType = QgsMeshDatasetGroupMetadata::DataOnVertices

bool	mIsScalar = true

QMap< QString, QString >	mMetadata

QString	mName

Detailed Description

Abstract class that represents a dataset group.

Since: QGIS 3.16

Definition at line 576 of file qgsmeshdataset.h.

Member Enumeration Documentation

◆ Type

enum QgsMeshDatasetGroup::Type

Type of the dataset group.

Since: QGIS 3.16

Enumerator
None
Persistent	Generic type used for non typed dataset group.
Memory	Dataset group store in a file.
Virtual	Temporary dataset group in memory.

Definition at line 585 of file qgsmeshdataset.h.

Constructor & Destructor Documentation

◆ QgsMeshDatasetGroup() [1/3]

QgsMeshDatasetGroup::QgsMeshDatasetGroup ( )

default

Default constructor.

◆ ~QgsMeshDatasetGroup()

QgsMeshDatasetGroup::~QgsMeshDatasetGroup ( )

virtualdefault

◆ QgsMeshDatasetGroup() [2/3]

QgsMeshDatasetGroup::QgsMeshDatasetGroup ( const QString & name )

Constructor with the name of the dataset group.

Definition at line 1017 of file qgsmeshdataset.cpp.

◆ QgsMeshDatasetGroup() [3/3]

QgsMeshDatasetGroup::QgsMeshDatasetGroup	(	const QString &	name,
		QgsMeshDatasetGroupMetadata::DataType	dataType
	)

Constructor with the name of the dataset group and the dataTYpe.

Definition at line 1013 of file qgsmeshdataset.cpp.

Member Function Documentation

◆ addExtraMetadata()

void QgsMeshDatasetGroup::addExtraMetadata	(	QString	key,
		QString	value
	)

Adds extra metadata to the group.

Definition at line 1055 of file qgsmeshdataset.cpp.

◆ calculateStatistic()

void QgsMeshDatasetGroup::calculateStatistic ( )

Calculates the statistics (minimum and maximum)

Definition at line 975 of file qgsmeshdataset.cpp.

◆ checkValueCountPerDataset()

bool QgsMeshDatasetGroup::checkValueCountPerDataset ( int count ) const

Returns whether all the datasets contain count values.

Definition at line 1005 of file qgsmeshdataset.cpp.

◆ dataset()

virtual QgsMeshDataset* QgsMeshDatasetGroup::dataset ( int index ) const

pure virtual

Returns the dataset with index.

Implemented in QgsMeshVirtualDatasetGroup, QgsMeshMemoryDatasetGroup, and QgsMeshZValueDatasetGroup.

◆ datasetCount()

virtual int QgsMeshDatasetGroup::datasetCount ( ) const

pure virtual

Returns the count of datasets in the group.

Implemented in QgsMeshVirtualDatasetGroup, QgsMeshMemoryDatasetGroup, and QgsMeshZValueDatasetGroup.

◆ datasetGroupNamesDependentOn()

QStringList QgsMeshDatasetGroup::datasetGroupNamesDependentOn ( ) const

virtual

Returns the dataset group variable name which this dataset group depends on.

Reimplemented in QgsMeshVirtualDatasetGroup.

Definition at line 990 of file qgsmeshdataset.cpp.

◆ datasetMetadata()

virtual QgsMeshDatasetMetadata QgsMeshDatasetGroup::datasetMetadata ( int datasetIndex ) const

pure virtual

Returns the metadata of the dataset with index datasetIndex.

Implemented in QgsMeshVirtualDatasetGroup, QgsMeshMemoryDatasetGroup, and QgsMeshZValueDatasetGroup.

◆ dataType()

QgsMeshDatasetGroupMetadata::DataType QgsMeshDatasetGroup::dataType ( ) const

Returns the data type of the dataset group.

Definition at line 1045 of file qgsmeshdataset.cpp.

◆ description()

QString QgsMeshDatasetGroup::description ( ) const

virtual

Returns some information about the dataset group.

Reimplemented in QgsMeshVirtualDatasetGroup.

Definition at line 995 of file qgsmeshdataset.cpp.

◆ extraMetadata()

QMap< QString, QString > QgsMeshDatasetGroup::extraMetadata ( ) const

Returns all the extra metadata of the group.

Definition at line 1060 of file qgsmeshdataset.cpp.

◆ groupMetadata()

QgsMeshDatasetGroupMetadata QgsMeshDatasetGroup::groupMetadata ( ) const

Returns the metadata of the dataset group.

Definition at line 913 of file qgsmeshdataset.cpp.

◆ initialize()

virtual void QgsMeshDatasetGroup::initialize ( )

pure virtual

Initialize the dataset group.

Implemented in QgsMeshVirtualDatasetGroup, QgsMeshMemoryDatasetGroup, and QgsMeshZValueDatasetGroup.

◆ isScalar()

bool QgsMeshDatasetGroup::isScalar ( ) const

Returns whether the group contain scalar values.

Definition at line 1065 of file qgsmeshdataset.cpp.

◆ maximum()

double QgsMeshDatasetGroup::maximum ( ) const

Returns the maximum value of the whole dataset group.

Definition at line 1024 of file qgsmeshdataset.cpp.

◆ minimum()

double QgsMeshDatasetGroup::minimum ( ) const

Returns the minimum value of the whole dataset group.

Definition at line 1019 of file qgsmeshdataset.cpp.

◆ name()

QString QgsMeshDatasetGroup::name ( ) const

Returns the name of the dataset group.

Definition at line 1035 of file qgsmeshdataset.cpp.

◆ setDataType()

void QgsMeshDatasetGroup::setDataType ( const QgsMeshDatasetGroupMetadata::DataType & dataType )

Sets the data type of the dataset group.

Definition at line 1050 of file qgsmeshdataset.cpp.

◆ setIsScalar()

void QgsMeshDatasetGroup::setIsScalar ( bool isScalar )

Sets whether the group contain scalar values.

Definition at line 1070 of file qgsmeshdataset.cpp.

◆ setMinimumMaximum()

void QgsMeshDatasetGroup::setMinimumMaximum	(	double	min,
		double	max
	)

Overrides the minimum and the maximum value of the whole dataset group.

Definition at line 1029 of file qgsmeshdataset.cpp.

◆ setName()

void QgsMeshDatasetGroup::setName ( const QString & name )

Sets the name of the dataset group.

Definition at line 1040 of file qgsmeshdataset.cpp.

◆ setReferenceTime()

void QgsMeshDatasetGroup::setReferenceTime ( const QDateTime & referenceTime )

Sets the reference time of the dataset group.

Definition at line 1000 of file qgsmeshdataset.cpp.

◆ type()

virtual QgsMeshDatasetGroup::Type QgsMeshDatasetGroup::type ( ) const

pure virtual

Returns the type of dataset group.

Implemented in QgsMeshVirtualDatasetGroup, QgsMeshMemoryDatasetGroup, and QgsMeshZValueDatasetGroup.

◆ writeXml()

virtual QDomElement QgsMeshDatasetGroup::writeXml	(	QDomDocument &	doc,
		const QgsReadWriteContext &	context
	)		const

pure virtual

Write dataset group information in a DOM element.

Implemented in QgsMeshVirtualDatasetGroup, QgsMeshMemoryDatasetGroup, and QgsMeshZValueDatasetGroup.

Member Data Documentation

◆ mDataType

QgsMeshDatasetGroupMetadata::DataType QgsMeshDatasetGroup::mDataType = QgsMeshDatasetGroupMetadata::DataOnVertices

protected

Definition at line 674 of file qgsmeshdataset.h.

◆ mIsScalar

bool QgsMeshDatasetGroup::mIsScalar = true

protected

Definition at line 676 of file qgsmeshdataset.h.

◆ mMetadata

QMap<QString, QString> QgsMeshDatasetGroup::mMetadata

protected

Definition at line 675 of file qgsmeshdataset.h.

◆ mName

QString QgsMeshDatasetGroup::mName

protected

Definition at line 672 of file qgsmeshdataset.h.

The documentation for this class was generated from the following files:

/build/qgis-3.18.1+99unstable/src/core/mesh/qgsmeshdataset.h
/build/qgis-3.18.1+99unstable/src/core/mesh/qgsmeshdataset.cpp
