Graphical histogram for displaying distributions of field values. More...

#include <qgshistogramwidget.h>

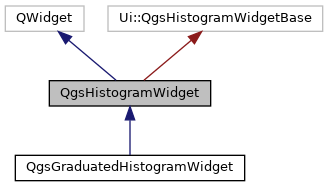

Inheritance diagram for QgsHistogramWidget:

[legend]

Public Slots
void	refresh ()
	Redraws the histogram. More...

void	refreshValues ()
	Refreshes the values for the histogram by fetching them from the layer. More...

void	setLayer (QgsVectorLayer *layer)
	Sets the vector layer associated with the histogram. More...

void	setSourceFieldExp (const QString &fieldOrExp)
	Sets the source field or expression to use for values in the histogram. More...

Public Member Functions
	QgsHistogramWidget (QWidget parent=nullptr, QgsVectorLayer layer=nullptr, const QString &fieldOrExp=QString())
	QgsHistogramWidget constructor. More...

	~QgsHistogramWidget () override

QBrush	brush () const
	Returns the brush used when drawing histogram bars. More...

QgsRangeList	graduatedRanges () const
	Returns the graduated ranges associated with the histogram. More...

QgsVectorLayer *	layer ()
	Returns the layer currently associated with the widget. More...

QPen	pen () const
	Returns the pen used when drawing histogram bars. More...

void	setBrush (const QBrush &brush)
	Sets the brush used for drawing histogram bars. More...

void	setGraduatedRanges (const QgsRangeList &ranges)
	Sets the graduated ranges associated with the histogram. More...

void	setPen (const QPen &pen)
	Sets the pen to use when drawing histogram bars. More...

void	setXAxisTitle (const QString &title)
	Sets the title for the histogram's x-axis. More...

void	setYAxisTitle (const QString &title)
	Sets the title for the histogram's y-axis. More...

QString	sourceFieldExp () const
	Returns the source field name or expression used to calculate values displayed in the histogram. More...

QString	xAxisTitle () const
	Returns the title for the histogram's x-axis. More...

QString	yAxisTitle () const
	Returns the title for the histogram's y-axis. More...

Protected Member Functions
virtual void	drawHistogram ()
	Updates and redraws the histogram. More...

Protected Attributes
QwtPlot *	mPlot = nullptr

QList< QwtPlotMarker * >	mRangeMarkers

QgsRangeList	mRanges

Detailed Description

Graphical histogram for displaying distributions of field values.

Since: QGIS 2.9

Definition at line 49 of file qgshistogramwidget.h.

Constructor & Destructor Documentation

◆ QgsHistogramWidget()

QgsHistogramWidget::QgsHistogramWidget	(	QWidget *	parent = `nullptr`,
		QgsVectorLayer *	layer = `nullptr`,
		const QString &	fieldOrExp = `QString()`
	)

QgsHistogramWidget constructor.

If layer and fieldOrExp are specified then the histogram will be initially populated with the corresponding values.

Parameters

parent	parent widget
layer	source vector layer
fieldOrExp	field name or expression string

Definition at line 42 of file qgshistogramwidget.cpp.

◆ ~QgsHistogramWidget()

QgsHistogramWidget::~QgsHistogramWidget ( )

override

Definition at line 79 of file qgshistogramwidget.cpp.

Member Function Documentation

◆ brush()

QBrush QgsHistogramWidget::brush ( ) const

inline

Returns the brush used when drawing histogram bars.

See also: setBrush; pen

Definition at line 112 of file qgshistogramwidget.h.

◆ drawHistogram()

void QgsHistogramWidget::drawHistogram ( )

protectedvirtual

Updates and redraws the histogram.

Reimplemented in QgsGraduatedHistogramWidget.

Definition at line 171 of file qgshistogramwidget.cpp.

◆ graduatedRanges()

QgsRangeList QgsHistogramWidget::graduatedRanges ( ) const

inline

Returns the graduated ranges associated with the histogram.

If set, the ranges will be used to color the histogram bars and for showing vertical dividers at the histogram breaks.

Returns: graduated range list

See also: setGraduatedRanges

Definition at line 128 of file qgshistogramwidget.h.

◆ layer()

QgsVectorLayer* QgsHistogramWidget::layer ( )

inline

Returns the layer currently associated with the widget.

See also: setLayer; sourceFieldExp

Definition at line 71 of file qgshistogramwidget.h.

◆ pen()

QPen QgsHistogramWidget::pen ( ) const

inline

Returns the pen used when drawing histogram bars.

See also: setPen; brush

Definition at line 96 of file qgshistogramwidget.h.

◆ refresh

void QgsHistogramWidget::refresh ( )

slot

Redraws the histogram.

Calling this slot does not update the values for the histogram, use refreshValues() to do this.

Definition at line 136 of file qgshistogramwidget.cpp.

◆ refreshValues

void QgsHistogramWidget::refreshValues ( )

slot

Refreshes the values for the histogram by fetching them from the layer.

Definition at line 97 of file qgshistogramwidget.cpp.

◆ setBrush()

void QgsHistogramWidget::setBrush ( const QBrush & brush )

inline

Sets the brush used for drawing histogram bars.

If ranges have been set using setGraduatedRanges() then the pen and brush will have no effect.

Parameters

brush histogram brush

See also: brush; setPen

Definition at line 105 of file qgshistogramwidget.h.

◆ setGraduatedRanges()

void QgsHistogramWidget::setGraduatedRanges ( const QgsRangeList & ranges )

Sets the graduated ranges associated with the histogram.

If set, the ranges will be used to color the histogram bars and for showing vertical dividers at the histogram breaks.

Parameters

ranges graduated range list

See also: graduatedRanges

Definition at line 91 of file qgshistogramwidget.cpp.

◆ setLayer

void QgsHistogramWidget::setLayer ( QgsVectorLayer * layer )

slot

Sets the vector layer associated with the histogram.

Parameters

layer source vector layer

See also: setSourceFieldExp

Definition at line 141 of file qgshistogramwidget.cpp.

◆ setPen()

void QgsHistogramWidget::setPen ( const QPen & pen )

inline

Sets the pen to use when drawing histogram bars.

If set to Qt::NoPen then the pen will be automatically calculated. If ranges have been set using setGraduatedRanges() then the pen and brush will have no effect.

Parameters

pen	histogram pen

See also: pen; setBrush

Definition at line 89 of file qgshistogramwidget.h.

◆ setSourceFieldExp

void QgsHistogramWidget::setSourceFieldExp ( const QString & fieldOrExp )

slot

Sets the source field or expression to use for values in the histogram.

Parameters

fieldOrExp field name or expression string

See also: setLayer

Definition at line 162 of file qgshistogramwidget.cpp.

◆ setXAxisTitle()

void QgsHistogramWidget::setXAxisTitle ( const QString & title )

inline

Sets the title for the histogram's x-axis.

Parameters

title x-axis title, or empty string to remove title

See also: xAxisTitle; setYAxisTitle

Definition at line 143 of file qgshistogramwidget.h.

◆ setYAxisTitle()

void QgsHistogramWidget::setYAxisTitle ( const QString & title )

inline

Sets the title for the histogram's y-axis.

Parameters

title y-axis title, or empty string to remove title

See also: yAxisTitle; setXAxisTitle

Definition at line 158 of file qgshistogramwidget.h.

◆ sourceFieldExp()

QString QgsHistogramWidget::sourceFieldExp ( ) const

inline

Returns the source field name or expression used to calculate values displayed in the histogram.

See also: setSourceFieldExp; layer

Definition at line 79 of file qgshistogramwidget.h.

◆ xAxisTitle()

QString QgsHistogramWidget::xAxisTitle ( ) const

inline

Returns the title for the histogram's x-axis.

See also: setXAxisTitle; yAxisTitle

Definition at line 135 of file qgshistogramwidget.h.

◆ yAxisTitle()

QString QgsHistogramWidget::yAxisTitle ( ) const

inline

Returns the title for the histogram's y-axis.

See also: setYAxisTitle; xAxisTitle

Definition at line 150 of file qgshistogramwidget.h.

Member Data Documentation

◆ mPlot

QwtPlot* QgsHistogramWidget::mPlot = nullptr

protected

Definition at line 194 of file qgshistogramwidget.h.

◆ mRangeMarkers

QList< QwtPlotMarker * > QgsHistogramWidget::mRangeMarkers

protected

Definition at line 196 of file qgshistogramwidget.h.

◆ mRanges

QgsRangeList QgsHistogramWidget::mRanges

protected

Definition at line 195 of file qgshistogramwidget.h.

The documentation for this class was generated from the following files:

/build/qgis-3.18.1+99unstable/src/gui/qgshistogramwidget.h
/build/qgis-3.18.1+99unstable/src/gui/qgshistogramwidget.cpp
