A widget for modifying the properties of a QgsEffectStack, including adding and reordering effects within the stack. More...

#include <qgseffectstackpropertieswidget.h>

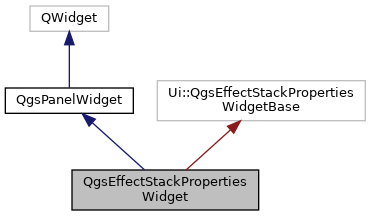

Inheritance diagram for QgsEffectStackPropertiesWidget:

[legend]

Public Slots
void	addEffect ()
	Adds a new effect to the stack. More...

void	changeEffect (QgsPaintEffect *newEffect)
	Updates the effect stack when the currently selected effect changes properties. More...

void	effectChanged ()
	Updates the widget when the selected effect changes type. More...

void	moveEffectDown ()
	Moves the currently selected effect down in the stack. More...

void	moveEffectUp ()
	Moves the currently selected effect up in the stack. More...

void	removeEffect ()
	Removes the currently selected effect from the stack. More...

void	updatePreview ()
	Updates the effect preview icon. More...

Public Slots inherited from QgsPanelWidget
void	acceptPanel ()
	Accept the panel. More...

void	openPanel (QgsPanelWidget *panel)
	Open a panel or dialog depending on dock mode setting If dock mode is `true` this method will emit the showPanel signal for connected slots to handle the open event. More...

Public Member Functions
	QgsEffectStackPropertiesWidget (QgsEffectStack stack, QWidget parent=nullptr)
	QgsEffectStackPropertiesWidget constructor. More...

	~QgsEffectStackPropertiesWidget () override

void	setPreviewPicture (const QPicture &picture)
	Sets the picture to use for effect previews for the dialog. More...

QgsEffectStack *	stack ()
	Returns effect stack attached to the widget. More...

Public Member Functions inherited from QgsPanelWidget
	QgsPanelWidget (QWidget *parent=nullptr)
	Base class for any widget that can be shown as a inline panel. More...

bool	autoDelete ()
	The the auto delete property on the widget. More...

void	connectChildPanel (QgsPanelWidget *panel)
	Connect the given sub panel widgets showPanel signals to this current panels main showPanel event to bubble up to the user. More...

void	connectChildPanels (const QList< QgsPanelWidget * > &panels)
	Connect the given sub panel widgets showPanel signals to this current panels main showPanel event to bubble up to the user. More...

bool	dockMode ()
	Returns the dock mode state. More...

virtual QMenu *	menuButtonMenu ()
	Returns the menu to use for the menu button for this panel, or `nullptr` if no menu button is required. More...

virtual QString	menuButtonTooltip () const
	Returns the (translated) tooltip text to use for the menu button for this panel. More...

QString	panelTitle ()
	The title of the panel. More...

void	setAutoDelete (bool autoDelete)
	The the auto delete property on the widget. More...

virtual void	setDockMode (bool dockMode)
	Set the widget in dock mode which tells the widget to emit panel widgets and not open dialogs. More...

void	setPanelTitle (const QString &panelTitle)
	Set the title of the panel when shown in the interface. More...

Protected Member Functions
EffectItem *	currentEffectItem ()
	Returns the currently selected effect within the stack. More...

void	loadStack ()
	Refreshes the widget to reflect the current state of the stack. More...

void	loadStack (QgsEffectStack *stack)
	Refreshes the widget to reflect the current state of a specified stack. More...

void	moveEffectByOffset (int offset)
	Moves the currently selected effect within the stack by a specified offset. More...

void	setWidget (QWidget *widget)
	Sets the effect properties widget. More...

void	updateUi ()
	Enables or disables widgets depending on the selected effect within the stack. More...

Protected Member Functions inherited from QgsPanelWidget
void	keyPressEvent (QKeyEvent *event) override
	Overridden key press event to handle the esc event on the widget. More...

Protected Attributes
QStandardItemModel *	mModel = nullptr

QWidget *	mPresentWidget = nullptr

QPicture	mPreviewPicture

QgsEffectStack *	mStack = nullptr

Additional Inherited Members
Signals inherited from QgsPanelWidget
void	panelAccepted (QgsPanelWidget *panel)
	Emitted when the panel is accepted by the user. More...

void	showPanel (QgsPanelWidget *panel)
	Emit when you require a panel to be show in the interface. More...

void	widgetChanged ()
	Emitted when the widget state changes. More...

Static Public Member Functions inherited from QgsPanelWidget
static QgsPanelWidget *	findParentPanel (QWidget *widget)
	Traces through the parents of a widget to find if it is contained within a QgsPanelWidget widget. More...

Detailed Description

A widget for modifying the properties of a QgsEffectStack, including adding and reordering effects within the stack.

See also: QgsEffectStack; QgsEffectStackPropertiesDialog; QgsEffectStackCompactWidget

Since: QGIS 2.9

Definition at line 50 of file qgseffectstackpropertieswidget.h.

Constructor & Destructor Documentation

◆ QgsEffectStackPropertiesWidget()

QgsEffectStackPropertiesWidget::QgsEffectStackPropertiesWidget	(	QgsEffectStack *	stack,
		QWidget *	parent = `nullptr`
	)

QgsEffectStackPropertiesWidget constructor.

Parameters

stack	QgsEffectStack to modify in the widget
parent	parent widget

Definition at line 97 of file qgseffectstackpropertieswidget.cpp.

◆ ~QgsEffectStackPropertiesWidget()

QgsEffectStackPropertiesWidget::~QgsEffectStackPropertiesWidget ( )

overridedefault

Member Function Documentation

◆ addEffect

void QgsEffectStackPropertiesWidget::addEffect ( )

slot

Adds a new effect to the stack.

Definition at line 274 of file qgseffectstackpropertieswidget.cpp.

◆ changeEffect

void QgsEffectStackPropertiesWidget::changeEffect ( QgsPaintEffect * newEffect )

slot

Updates the effect stack when the currently selected effect changes properties.

Parameters

newEffect new effect to replace existing effect at selected position within the stack.

Definition at line 343 of file qgseffectstackpropertieswidget.cpp.

◆ currentEffectItem()

EffectItem * QgsEffectStackPropertiesWidget::currentEffectItem ( )

protected

Returns the currently selected effect within the stack.

Note: not available in Python bindings

Definition at line 236 of file qgseffectstackpropertieswidget.cpp.

◆ effectChanged

void QgsEffectStackPropertiesWidget::effectChanged ( )

slot

Updates the widget when the selected effect changes type.

Definition at line 246 of file qgseffectstackpropertieswidget.cpp.

◆ loadStack() [1/2]

void QgsEffectStackPropertiesWidget::loadStack ( )

protected

Refreshes the widget to reflect the current state of the stack.

Definition at line 183 of file qgseffectstackpropertieswidget.cpp.

◆ loadStack() [2/2]

void QgsEffectStackPropertiesWidget::loadStack ( QgsEffectStack * stack )

protected

Refreshes the widget to reflect the current state of a specified stack.

Parameters

stack QgsEffectStack for widget

Definition at line 164 of file qgseffectstackpropertieswidget.cpp.

◆ moveEffectByOffset()

void QgsEffectStackPropertiesWidget::moveEffectByOffset ( int offset )

protected

Moves the currently selected effect within the stack by a specified offset.

Definition at line 318 of file qgseffectstackpropertieswidget.cpp.

◆ moveEffectDown

void QgsEffectStackPropertiesWidget::moveEffectDown ( )

slot

Moves the currently selected effect down in the stack.

Definition at line 308 of file qgseffectstackpropertieswidget.cpp.

◆ moveEffectUp

void QgsEffectStackPropertiesWidget::moveEffectUp ( )

slot

Moves the currently selected effect up in the stack.

Definition at line 313 of file qgseffectstackpropertieswidget.cpp.

◆ removeEffect

void QgsEffectStackPropertiesWidget::removeEffect ( )

slot

Removes the currently selected effect from the stack.

Definition at line 287 of file qgseffectstackpropertieswidget.cpp.

◆ setPreviewPicture()

void QgsEffectStackPropertiesWidget::setPreviewPicture ( const QPicture & picture )

Sets the picture to use for effect previews for the dialog.

Parameters

picture preview picture

Definition at line 158 of file qgseffectstackpropertieswidget.cpp.

◆ setWidget()

void QgsEffectStackPropertiesWidget::setWidget ( QWidget * widget )

protected

Sets the effect properties widget.

Definition at line 261 of file qgseffectstackpropertieswidget.cpp.

◆ stack()

QgsEffectStack* QgsEffectStackPropertiesWidget::stack ( )

inline

Returns effect stack attached to the widget.

Returns: QgsEffectStack modified by the widget

Definition at line 69 of file qgseffectstackpropertieswidget.h.

◆ updatePreview

void QgsEffectStackPropertiesWidget::updatePreview ( )

slot

Updates the effect preview icon.

Definition at line 206 of file qgseffectstackpropertieswidget.cpp.

◆ updateUi()

void QgsEffectStackPropertiesWidget::updateUi ( )

protected

Enables or disables widgets depending on the selected effect within the stack.

Definition at line 189 of file qgseffectstackpropertieswidget.cpp.

Member Data Documentation

◆ mModel

QStandardItemModel* QgsEffectStackPropertiesWidget::mModel = nullptr

protected

Definition at line 118 of file qgseffectstackpropertieswidget.h.

◆ mPresentWidget

QWidget* QgsEffectStackPropertiesWidget::mPresentWidget = nullptr

protected

Definition at line 119 of file qgseffectstackpropertieswidget.h.

◆ mPreviewPicture

QPicture QgsEffectStackPropertiesWidget::mPreviewPicture

protected

Definition at line 120 of file qgseffectstackpropertieswidget.h.

◆ mStack

QgsEffectStack* QgsEffectStackPropertiesWidget::mStack = nullptr

protected

Definition at line 117 of file qgseffectstackpropertieswidget.h.

The documentation for this class was generated from the following files:

/build/qgis-3.18.1+99unstable/src/gui/effects/qgseffectstackpropertieswidget.h
/build/qgis-3.18.1+99unstable/src/gui/effects/qgseffectstackpropertieswidget.cpp
