QGIS API Documentation: QgsMultiBandColorRendererWidget Class Reference

QGIS API Documentation 3.12.1-București (121cc00ff0)

#include <qgsmultibandcolorrendererwidget.h>

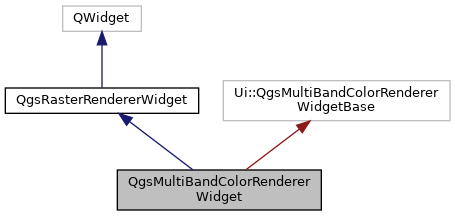

Inheritance diagram for QgsMultiBandColorRendererWidget:

Inheritance graph

[legend]

Public Slots
void	loadMinMax (int bandNo, double min, double max)
	called when new min/max values are loaded More...

Public Member Functions
	QgsMultiBandColorRendererWidget (QgsRasterLayer *layer, const QgsRectangle &extent=QgsRectangle())

void	doComputations () override
	Load programmatically with current values. More...

QString	max (int index=0) override

QString	min (int index=0) override

QgsRasterMinMaxWidget *	minMaxWidget () override
	Returns min/max widget when it exists. More...

QgsRasterRenderer *	renderer () override

int	selectedBand (int index=0) override

void	setFromRenderer (const QgsRasterRenderer *r)

void	setMapCanvas (QgsMapCanvas *canvas) override
	Sets the map canvas associated with the widget. More...

void	setMax (const QString &value, int index=0) override

void	setMin (const QString &value, int index=0) override

Public Member Functions inherited from QgsRasterRendererWidget
	QgsRasterRendererWidget (QgsRasterLayer *layer, const QgsRectangle &extent)

QgsMapCanvas *	mapCanvas ()
	Returns the map canvas associated with the widget. More...

const QgsRasterLayer *	rasterLayer () const

void	setRasterLayer (QgsRasterLayer *layer)

virtual void	setStdDev (const QString &value)

virtual QString	stdDev ()

Static Public Member Functions
static QgsRasterRendererWidget *	create (QgsRasterLayer *layer, const QgsRectangle &extent)

Additional Inherited Members
Signals inherited from QgsRasterRendererWidget
void	widgetChanged ()
	Emitted when something on the widget has changed. More...

Protected Attributes inherited from QgsRasterRendererWidget
QgsMapCanvas *	mCanvas = nullptr
	Associated map canvas. More...

QgsRectangle	mExtent
	Current extent. More...

QgsRasterLayer *	mRasterLayer = nullptr

Detailed Description

Definition at line 36 of file qgsmultibandcolorrendererwidget.h.

Constructor & Destructor Documentation

◆ QgsMultiBandColorRendererWidget()

QgsMultiBandColorRendererWidget::QgsMultiBandColorRendererWidget	(	QgsRasterLayer *	layer,
		const QgsRectangle &	extent = `QgsRectangle()`
	)

Definition at line 24 of file qgsmultibandcolorrendererwidget.cpp.

Member Function Documentation

◆ create()

static QgsRasterRendererWidget* QgsMultiBandColorRendererWidget::create	(	QgsRasterLayer *	layer,
		const QgsRectangle &	extent
	)

inlinestatic

Definition at line 42 of file qgsmultibandcolorrendererwidget.h.

◆ doComputations()

void QgsMultiBandColorRendererWidget::doComputations ( )

overridevirtual

Load programmatically with current values.

Reimplemented from QgsRasterRendererWidget.

Definition at line 109 of file qgsmultibandcolorrendererwidget.cpp.

◆ loadMinMax

void QgsMultiBandColorRendererWidget::loadMinMax	(	int	bandNo,
		double	min,
		double	max
	)

slot

called when new min/max values are loaded

Definition at line 261 of file qgsmultibandcolorrendererwidget.cpp.

◆ max()

QString QgsMultiBandColorRendererWidget::max ( int index = 0 )

overridevirtual

Reimplemented from QgsRasterRendererWidget.

Definition at line 383 of file qgsmultibandcolorrendererwidget.cpp.

◆ min()

QString QgsMultiBandColorRendererWidget::min ( int index = 0 )

overridevirtual

Reimplemented from QgsRasterRendererWidget.

Definition at line 367 of file qgsmultibandcolorrendererwidget.cpp.

◆ minMaxWidget()

QgsRasterMinMaxWidget* QgsMultiBandColorRendererWidget::minMaxWidget ( )

inlineoverridevirtual

Returns min/max widget when it exists.

Reimplemented from QgsRasterRendererWidget.

Definition at line 55 of file qgsmultibandcolorrendererwidget.h.

◆ renderer()

QgsRasterRenderer * QgsMultiBandColorRendererWidget::renderer ( )

overridevirtual

Implements QgsRasterRendererWidget.

Definition at line 85 of file qgsmultibandcolorrendererwidget.cpp.

◆ selectedBand()

int QgsMultiBandColorRendererWidget::selectedBand ( int index = 0 )

overridevirtual

Reimplemented from QgsRasterRendererWidget.

Definition at line 439 of file qgsmultibandcolorrendererwidget.cpp.

◆ setFromRenderer()

void QgsMultiBandColorRendererWidget::setFromRenderer ( const QgsRasterRenderer * r )

Definition at line 332 of file qgsmultibandcolorrendererwidget.cpp.

◆ setMapCanvas()

void QgsMultiBandColorRendererWidget::setMapCanvas ( QgsMapCanvas * canvas )

overridevirtual

Sets the map canvas associated with the widget.

This allows the widget to retrieve the current map extent and other properties from the canvas.

Parameters

canvas map canvas

See also: mapCanvas()

Since: QGIS 2.16

Reimplemented from QgsRasterRendererWidget.

Definition at line 114 of file qgsmultibandcolorrendererwidget.cpp.

◆ setMax()

void QgsMultiBandColorRendererWidget::setMax	(	const QString &	value,
		int	index = `0`
	)

overridevirtual

Reimplemented from QgsRasterRendererWidget.

Definition at line 419 of file qgsmultibandcolorrendererwidget.cpp.

◆ setMin()

void QgsMultiBandColorRendererWidget::setMin	(	const QString &	value,
		int	index = `0`
	)

overridevirtual

Reimplemented from QgsRasterRendererWidget.

Definition at line 399 of file qgsmultibandcolorrendererwidget.cpp.

The documentation for this class was generated from the following files:

/build/qgis-3.12.1+28bionic/src/gui/raster/qgsmultibandcolorrendererwidget.h
/build/qgis-3.12.1+28bionic/src/gui/raster/qgsmultibandcolorrendererwidget.cpp
