QgsUndoCommand Class Reference

Class to support universal undo command sequence for application, basic for. More...

#include <qgsvectorlayerundocommand.h>

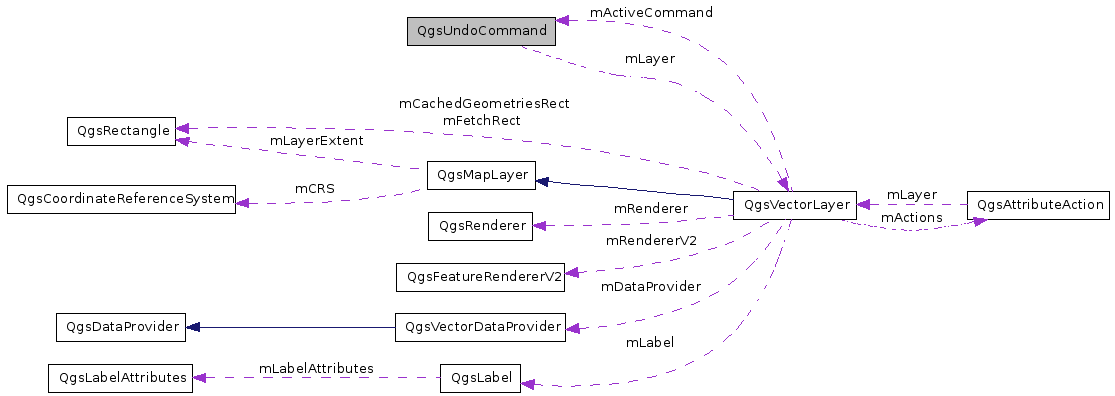

Collaboration diagram for QgsUndoCommand:

List of all members.

Public Types

typedef QMap< int,
AttributeChangeEntry > AttributeChanges

Public Member Functions

QgsUndoCommand (QgsVectorLayer *layer, QString text)

void undo ()

Necessary function to provide undo operation.

void redo ()

Necessary function to provide redo operation.

void storeGeometryChange (int featureId, QgsGeometry &original, QgsGeometry &target)

Function to store changes in geometry to be returned to this state after undo/redo.

void storeAttributeChange (int featureId, int field, QVariant original, QVariant target, bool isFirstChange)

Stores changes of attributes for the feature to be returned to this state after undo/redo.

void storeFeatureDelete (int featureId)

Add id of feature to deleted list to be reverted if needed afterwards.

void storeFeatureAdd (QgsFeature &feature)

Add new feature to list of new features to be stored for undo/redo operations.

void storeAttributeAdd (int index, const QgsField &value)

Add new attribute to list of attributes to be used for attributes of features for undo/redo operations.

void storeAttributeDelete (int index, const QgsField &orig)

Add deleted attribute which is to be stored for undo/redo operations.

Private Attributes

bool mFirstRun

Variable to disable first run of undo, because it's automaticaly done after push.

QgsVectorLayer * mLayer

Layer on which operations should be performed.

QMap< int, GeometryChangeEntry > mGeometryChange

Map of changes of geometry for features it describes changes of geometry.

QMap< int, AttributeChanges > mAttributeChange

Map of changes of atrributes for features which describes changes of attributes.

QgsFeatureIds mDeletedFeatureIdChange

Deleted feature IDs which are not commited.

QgsFieldMap mAddedAttributes

added attributes fields which are not commited

QgsFieldMap mDeletedAttributes

deleted attributes fields which are not commited

QgsFeatureList mAddedFeatures

New features which are not commited.

Friends

class QgsVectorLayer

Classes

class AttributeChangeEntry

change structure for attribute for undo/redo purpose More...

class GeometryChangeEntry

change structure to geometry for undo/redo purpose More...

Detailed Description

Class to support universal undo command sequence for application, basic for.

Definition at line 28 of file qgsvectorlayerundocommand.h.

Member Typedef Documentation

typedef QMap<int, AttributeChangeEntry> QgsUndoCommand::AttributeChanges

Definition at line 41 of file qgsvectorlayerundocommand.h.

Constructor & Destructor Documentation

QgsUndoCommand::QgsUndoCommand	(	QgsVectorLayer *	layer,
		QString	text
	)

Definition at line 46 of file qgsvectorlayerundocommand.cpp.

References mFirstRun, and mLayer.

Member Function Documentation

void QgsUndoCommand::undo ( )

Necessary function to provide undo operation.

Definition at line 67 of file qgsvectorlayerundocommand.cpp.

References mLayer, and QgsVectorLayer::undoEditCommand().

void QgsUndoCommand::redo ( )

Necessary function to provide redo operation.

Definition at line 54 of file qgsvectorlayerundocommand.cpp.

References mFirstRun, mLayer, and QgsVectorLayer::redoEditCommand().

void QgsUndoCommand::storeGeometryChange	(	int	featureId,
		QgsGeometry &	original,
		QgsGeometry &	target
	)

Function to store changes in geometry to be returned to this state after undo/redo.

Parameters:

	featureId	id of feature edited
	original	original geometry of feature which was changed
	target	changed geometry which was changed

Definition at line 73 of file qgsvectorlayerundocommand.cpp.

References mGeometryChange.

Referenced by QgsVectorLayer::editGeometryChange().

void QgsUndoCommand::storeAttributeChange	(	int	featureId,
		int	field,
		QVariant	original,
		QVariant	target,
		bool	isFirstChange
	)

Stores changes of attributes for the feature to be returned to this state after undo/redo.

Parameters:

	featureId	id of feature for which this chaged is stored
	field	field identifier of field which was changed
	original	original value of attribute before change
	target	target value of attribute after change
	isFirstChange	flag if this change is the first one

Definition at line 89 of file qgsvectorlayerundocommand.cpp.

References QgsUndoCommand::AttributeChangeEntry::isFirstChange, mAttributeChange, QgsUndoCommand::AttributeChangeEntry::original, and QgsUndoCommand::AttributeChangeEntry::target.

Referenced by QgsVectorLayer::editAttributeChange().

void QgsUndoCommand::storeFeatureDelete ( int featureId )

Add id of feature to deleted list to be reverted if needed afterwards.

Parameters:

featureId

id of feature which is to be deleted

Definition at line 108 of file qgsvectorlayerundocommand.cpp.

References mDeletedFeatureIdChange.

Referenced by QgsVectorLayer::editFeatureDelete().

void QgsUndoCommand::storeFeatureAdd ( QgsFeature & feature )

Add new feature to list of new features to be stored for undo/redo operations.

Parameters:

feature

feature which is to be added

Definition at line 113 of file qgsvectorlayerundocommand.cpp.

References mAddedFeatures.

Referenced by QgsVectorLayer::editFeatureAdd().

void QgsUndoCommand::storeAttributeAdd	(	int	index,
		const QgsField &	value
	)

Add new attribute to list of attributes to be used for attributes of features for undo/redo operations.

Parameters:

	index	index of attribute which is to be added
	value	field description which is to be stored

Definition at line 98 of file qgsvectorlayerundocommand.cpp.

References mAddedAttributes.

Referenced by QgsVectorLayer::addAttribute().

void QgsUndoCommand::storeAttributeDelete	(	int	index,
		const QgsField &	orig
	)

Add deleted attribute which is to be stored for undo/redo operations.

Parameters:

	index	index od attribute definition which is to be deleted
	orig	deleted field's description

Definition at line 103 of file qgsvectorlayerundocommand.cpp.

References mDeletedAttributes.

Referenced by QgsVectorLayer::deleteAttribute().

Friends And Related Function Documentation

friend class QgsVectorLayer [friend]

Definition at line 144 of file qgsvectorlayerundocommand.h.

Member Data Documentation

bool QgsUndoCommand::mFirstRun [private]

Variable to disable first run of undo, because it's automaticaly done after push.

Definition at line 116 of file qgsvectorlayerundocommand.h.

Referenced by QgsUndoCommand(), and redo().

QgsVectorLayer* QgsUndoCommand::mLayer [private]

Layer on which operations should be performed.

Definition at line 119 of file qgsvectorlayerundocommand.h.

Referenced by QgsUndoCommand(), redo(), and undo().

QMap<int, GeometryChangeEntry> QgsUndoCommand::mGeometryChange [private]

Map of changes of geometry for features it describes changes of geometry.

Definition at line 122 of file qgsvectorlayerundocommand.h.

Referenced by QgsVectorLayer::redoEditCommand(), storeGeometryChange(), and QgsVectorLayer::undoEditCommand().

QMap<int, AttributeChanges> QgsUndoCommand::mAttributeChange [private]

Map of changes of atrributes for features which describes changes of attributes.

Definition at line 125 of file qgsvectorlayerundocommand.h.

Referenced by QgsVectorLayer::redoEditCommand(), storeAttributeChange(), and QgsVectorLayer::undoEditCommand().

QgsFeatureIds QgsUndoCommand::mDeletedFeatureIdChange [private]

Deleted feature IDs which are not commited.

Note a feature can be added and then deleted again before the change is committed - in that case the added feature would be removed from mAddedFeatures only and *not* entered here.

Definition at line 131 of file qgsvectorlayerundocommand.h.

Referenced by QgsVectorLayer::redoEditCommand(), storeFeatureDelete(), and QgsVectorLayer::undoEditCommand().

QgsFieldMap QgsUndoCommand::mAddedAttributes [private]

added attributes fields which are not commited

Definition at line 134 of file qgsvectorlayerundocommand.h.

Referenced by QgsVectorLayer::redoEditCommand(), storeAttributeAdd(), and QgsVectorLayer::undoEditCommand().

QgsFieldMap QgsUndoCommand::mDeletedAttributes [private]

deleted attributes fields which are not commited

Definition at line 137 of file qgsvectorlayerundocommand.h.

Referenced by QgsVectorLayer::redoEditCommand(), storeAttributeDelete(), and QgsVectorLayer::undoEditCommand().

QgsFeatureList QgsUndoCommand::mAddedFeatures [private]

New features which are not commited.

Note a feature can be added and then changed, therefore the details here can be overridden by mChangedAttributeValues and mChangedGeometries.

Definition at line 142 of file qgsvectorlayerundocommand.h.

Referenced by QgsVectorLayer::redoEditCommand(), storeFeatureAdd(), and QgsVectorLayer::undoEditCommand().

The documentation for this class was generated from the following files:

src/core/qgsvectorlayerundocommand.h
src/core/qgsvectorlayerundocommand.cpp
