QgsRuleBasedRendererV2 Class Reference

When drawing a vector layer with rule-based renderer, it goes through the rules and draws features with symbols from rules that match. More...

#include <qgsrulebasedrendererv2.h>

Inheritance diagram for QgsRuleBasedRendererV2:

[legend]

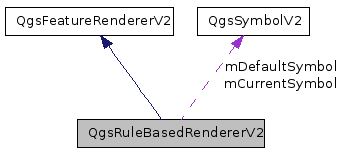

Collaboration diagram for QgsRuleBasedRendererV2:

[legend]

List of all members.

Public Member Functions

QgsRuleBasedRendererV2 (QgsSymbolV2 *defaultSymbol)

Constructor. Takes ownership of the defult symbol.

virtual QgsSymbolV2 * symbolForFeature (QgsFeature &feature)

return symbol for current feature. Should not be used individually: there could be more symbols for a feature

virtual void renderFeature (QgsFeature &feature, QgsRenderContext &context, int layer=-1, bool selected=false, bool drawVertexMarker=false)

virtual void startRender (QgsRenderContext &context, const QgsVectorLayer *vlayer)

virtual void stopRender (QgsRenderContext &context)

virtual QList< QString > usedAttributes ()

virtual QgsFeatureRendererV2 * clone ()

virtual QgsSymbolV2List symbols ()

for symbol levels

virtual QDomElement save (QDomDocument &doc)

store renderer info to XML element

virtual QgsLegendSymbologyList legendSymbologyItems (QSize iconSize)

return a list of symbology items for the legend

virtual QgsLegendSymbolList legendSymbolItems ()

return a list of item text / symbol

int ruleCount ()

return the total number of rules

Rule & ruleAt (int index)

get reference to rule at index (valid indexes: 0...count-1)

void addRule (const Rule &rule)

add rule to the end of the list of rules

void insertRule (int index, const Rule &rule)

insert rule to a specific position of the list of rules

void updateRuleAt (int index, const Rule &rule)

modify the rule at a specific position of the list of rules

void removeRuleAt (int index)

remove the rule at the specified index

Static Public Member Functions

static QgsFeatureRendererV2 * create (QDomElement &element)

static QList< Rule > refineRuleCategories (Rule &initialRule, QgsCategorizedSymbolRendererV2 *r)

take a rule and create a list of new rules based on the categories from categorized symbol renderer

static QList< Rule > refineRuleRanges (Rule &initialRule, QgsGraduatedSymbolRendererV2 *r)

take a rule and create a list of new rules based on the ranges from graduated symbol renderer

static QList< Rule > refineRuleScales (Rule &initialRule, QList< int > scales)

take a rule and create a list of new rules with intervals of scales given by the passed scale denominators

Protected Attributes

QList< Rule > mRules

the list of rules

QgsSymbolV2 * mDefaultSymbol

the default symbol, used for the first rule with no filter

QList< Rule * > mCurrentRules

QgsFieldMap mCurrentFields

QgsSymbolV2 * mCurrentSymbol

Classes

class Rule

This class keeps data about a rules for rule-based renderer. More...

Detailed Description

When drawing a vector layer with rule-based renderer, it goes through the rules and draws features with symbols from rules that match.

Definition at line 31 of file qgsrulebasedrendererv2.h.

Constructor & Destructor Documentation

QgsRuleBasedRendererV2::QgsRuleBasedRendererV2 ( QgsSymbolV2 * defaultSymbol )

Constructor. Takes ownership of the defult symbol.

Definition at line 117 of file qgsrulebasedrendererv2.cpp.

References QgsSymbolV2::clone(), mDefaultSymbol, and mRules.

Referenced by clone(), and create().

Member Function Documentation

QgsFeatureRendererV2 * QgsRuleBasedRendererV2::create ( QDomElement & element ) [static]

Definition at line 269 of file qgsrulebasedrendererv2.cpp.

References QgsSymbolLayerV2Utils::clearSymbolMap(), QgsSymbolLayerV2Utils::loadSymbols(), mRules, QgsDebugMsg, and QgsRuleBasedRendererV2().

Referenced by QgsRendererV2Registry::QgsRendererV2Registry().

QgsSymbolV2 * QgsRuleBasedRendererV2::symbolForFeature ( QgsFeature & feature ) [virtual]

return symbol for current feature. Should not be used individually: there could be more symbols for a feature

Implements QgsFeatureRendererV2.

Definition at line 127 of file qgsrulebasedrendererv2.cpp.

References mCurrentSymbol.

void QgsRuleBasedRendererV2::renderFeature	(	QgsFeature &	feature,
		QgsRenderContext &	context,
		int	layer = `-1`,
		bool	selected = `false`,
		bool	drawVertexMarker = `false`
	)			`[virtual]`

Reimplemented from QgsFeatureRendererV2.

Definition at line 132 of file qgsrulebasedrendererv2.cpp.

References QgsRuleBasedRendererV2::Rule::isFilterOK(), mCurrentFields, mCurrentRules, mCurrentSymbol, QgsFeatureRendererV2::renderFeature(), and QgsRuleBasedRendererV2::Rule::symbol().

void QgsRuleBasedRendererV2::startRender	(	QgsRenderContext &	context,
		const QgsVectorLayer *	vlayer
	)			`[virtual]`

Implements QgsFeatureRendererV2.

Definition at line 151 of file qgsrulebasedrendererv2.cpp.

References QgsRuleBasedRendererV2::Rule::isScaleOK(), mCurrentFields, mCurrentRules, mRules, QgsVectorLayer::pendingFields(), QgsRenderContext::rendererScale(), QgsSymbolV2::startRender(), and QgsRuleBasedRendererV2::Rule::symbol().

void QgsRuleBasedRendererV2::stopRender ( QgsRenderContext & context ) [virtual]

Implements QgsFeatureRendererV2.

Definition at line 173 of file qgsrulebasedrendererv2.cpp.

References mCurrentFields, mCurrentRules, QgsSymbolV2::stopRender(), and QgsRuleBasedRendererV2::Rule::symbol().

QList< QString > QgsRuleBasedRendererV2::usedAttributes ( ) [virtual]

Implements QgsFeatureRendererV2.

Definition at line 185 of file qgsrulebasedrendererv2.cpp.

References mRules, and QgsRuleBasedRendererV2::Rule::needsFields().

QgsFeatureRendererV2 * QgsRuleBasedRendererV2::clone ( ) [virtual]

Implements QgsFeatureRendererV2.

Definition at line 196 of file qgsrulebasedrendererv2.cpp.

References QgsSymbolV2::clone(), mDefaultSymbol, mRules, and QgsRuleBasedRendererV2().

QgsSymbolV2List QgsRuleBasedRendererV2::symbols ( ) [virtual]

for symbol levels

Implements QgsFeatureRendererV2.

Definition at line 204 of file qgsrulebasedrendererv2.cpp.

References mRules, and QgsRuleBasedRendererV2::Rule::symbol().

Referenced by save().

QDomElement QgsRuleBasedRendererV2::save ( QDomDocument & doc ) [virtual]

store renderer info to XML element

Reimplemented from QgsFeatureRendererV2.

Definition at line 216 of file qgsrulebasedrendererv2.cpp.

References QgsRuleBasedRendererV2::Rule::filterExpression(), mDefaultSymbol, mRules, RENDERER_TAG_NAME, QgsSymbolLayerV2Utils::saveSymbols(), QgsRuleBasedRendererV2::Rule::scaleMaxDenom(), QgsRuleBasedRendererV2::Rule::scaleMinDenom(), QgsRuleBasedRendererV2::Rule::symbol(), and symbols().

QgsLegendSymbologyList QgsRuleBasedRendererV2::legendSymbologyItems ( QSize iconSize ) [virtual]

return a list of symbology items for the legend

Reimplemented from QgsFeatureRendererV2.

Definition at line 247 of file qgsrulebasedrendererv2.cpp.

References mRules, and QgsSymbolLayerV2Utils::symbolPreviewPixmap().

QgsLegendSymbolList QgsRuleBasedRendererV2::legendSymbolItems ( ) [virtual]

return a list of item text / symbol

Note:: : this method was added in version 1.5

Reimplemented from QgsFeatureRendererV2.

Definition at line 258 of file qgsrulebasedrendererv2.cpp.

References mRules.

int QgsRuleBasedRendererV2::ruleCount ( )

return the total number of rules

Definition at line 313 of file qgsrulebasedrendererv2.cpp.

References mRules.

QgsRuleBasedRendererV2::Rule & QgsRuleBasedRendererV2::ruleAt ( int index )

get reference to rule at index (valid indexes: 0...count-1)

Definition at line 318 of file qgsrulebasedrendererv2.cpp.

References mRules.

void QgsRuleBasedRendererV2::addRule ( const Rule & rule )

add rule to the end of the list of rules

Definition at line 323 of file qgsrulebasedrendererv2.cpp.

References mRules.

void QgsRuleBasedRendererV2::insertRule	(	int	index,
		const Rule &	rule
	)

insert rule to a specific position of the list of rules

Definition at line 328 of file qgsrulebasedrendererv2.cpp.

References mRules.

void QgsRuleBasedRendererV2::updateRuleAt	(	int	index,
		const Rule &	rule
	)

modify the rule at a specific position of the list of rules

Definition at line 333 of file qgsrulebasedrendererv2.cpp.

References mRules.

void QgsRuleBasedRendererV2::removeRuleAt ( int index )

remove the rule at the specified index

Definition at line 338 of file qgsrulebasedrendererv2.cpp.

References mRules.

QList< QgsRuleBasedRendererV2::Rule > QgsRuleBasedRendererV2::refineRuleCategories	(	QgsRuleBasedRendererV2::Rule &	initialRule,
		QgsCategorizedSymbolRendererV2 *	r
	)			`[static]`

take a rule and create a list of new rules based on the categories from categorized symbol renderer

Definition at line 346 of file qgsrulebasedrendererv2.cpp.

References QgsCategorizedSymbolRendererV2::categories(), QgsCategorizedSymbolRendererV2::classAttribute(), QgsSymbolV2::clone(), QgsRuleBasedRendererV2::Rule::filterExpression(), QgsRuleBasedRendererV2::Rule::scaleMaxDenom(), QgsRuleBasedRendererV2::Rule::scaleMinDenom(), QgsRendererCategoryV2::symbol(), and QgsRendererCategoryV2::value().

QList< QgsRuleBasedRendererV2::Rule > QgsRuleBasedRendererV2::refineRuleRanges	(	QgsRuleBasedRendererV2::Rule &	initialRule,
		QgsGraduatedSymbolRendererV2 *	r
	)			`[static]`

take a rule and create a list of new rules based on the ranges from graduated symbol renderer

Definition at line 362 of file qgsrulebasedrendererv2.cpp.

References QgsGraduatedSymbolRendererV2::classAttribute(), QgsSymbolV2::clone(), QgsRuleBasedRendererV2::Rule::filterExpression(), QgsRendererRangeV2::lowerValue(), QgsGraduatedSymbolRendererV2::ranges(), QgsRuleBasedRendererV2::Rule::scaleMaxDenom(), QgsRuleBasedRendererV2::Rule::scaleMinDenom(), QgsRendererRangeV2::symbol(), and QgsRendererRangeV2::upperValue().

QList< QgsRuleBasedRendererV2::Rule > QgsRuleBasedRendererV2::refineRuleScales	(	QgsRuleBasedRendererV2::Rule &	initialRule,
		QList< int >	scales
	)			`[static]`

take a rule and create a list of new rules with intervals of scales given by the passed scale denominators

Definition at line 378 of file qgsrulebasedrendererv2.cpp.

References QgsSymbolV2::clone(), QgsRuleBasedRendererV2::Rule::filterExpression(), QgsRuleBasedRendererV2::Rule::scaleMaxDenom(), QgsRuleBasedRendererV2::Rule::scaleMinDenom(), and QgsRuleBasedRendererV2::Rule::symbol().

Member Data Documentation

QList<Rule> QgsRuleBasedRendererV2::mRules [protected]

the list of rules

Definition at line 138 of file qgsrulebasedrendererv2.h.

Referenced by addRule(), clone(), create(), insertRule(), legendSymbolItems(), legendSymbologyItems(), QgsRuleBasedRendererV2(), removeRuleAt(), ruleAt(), ruleCount(), save(), startRender(), symbols(), updateRuleAt(), and usedAttributes().

QgsSymbolV2* QgsRuleBasedRendererV2::mDefaultSymbol [protected]

the default symbol, used for the first rule with no filter

Definition at line 140 of file qgsrulebasedrendererv2.h.

Referenced by clone(), QgsRuleBasedRendererV2(), and save().

QList<Rule*> QgsRuleBasedRendererV2::mCurrentRules [protected]

Definition at line 143 of file qgsrulebasedrendererv2.h.

Referenced by renderFeature(), startRender(), and stopRender().

QgsFieldMap QgsRuleBasedRendererV2::mCurrentFields [protected]

Definition at line 144 of file qgsrulebasedrendererv2.h.

Referenced by renderFeature(), startRender(), and stopRender().

QgsSymbolV2* QgsRuleBasedRendererV2::mCurrentSymbol [protected]

Definition at line 145 of file qgsrulebasedrendererv2.h.

Referenced by renderFeature(), and symbolForFeature().

The documentation for this class was generated from the following files:

src/core/symbology-ng/qgsrulebasedrendererv2.h
src/core/symbology-ng/qgsrulebasedrendererv2.cpp


Public Member Functions
	QgsRuleBasedRendererV2 (QgsSymbolV2 *defaultSymbol)
	Constructor. Takes ownership of the defult symbol.
virtual QgsSymbolV2 *	symbolForFeature (QgsFeature &feature)
	return symbol for current feature. Should not be used individually: there could be more symbols for a feature
virtual void	renderFeature (QgsFeature &feature, QgsRenderContext &context, int layer=-1, bool selected=false, bool drawVertexMarker=false)
virtual void	startRender (QgsRenderContext &context, const QgsVectorLayer *vlayer)
virtual void	stopRender (QgsRenderContext &context)
virtual QList< QString >	usedAttributes ()
virtual QgsFeatureRendererV2 *	clone ()
virtual QgsSymbolV2List	symbols ()
	for symbol levels
virtual QDomElement	save (QDomDocument &doc)
	store renderer info to XML element
virtual QgsLegendSymbologyList	legendSymbologyItems (QSize iconSize)
	return a list of symbology items for the legend
virtual QgsLegendSymbolList	legendSymbolItems ()
	return a list of item text / symbol
int	ruleCount ()
	return the total number of rules
Rule &	ruleAt (int index)
	get reference to rule at index (valid indexes: 0...count-1)
void	addRule (const Rule &rule)
	add rule to the end of the list of rules
void	insertRule (int index, const Rule &rule)
	insert rule to a specific position of the list of rules
void	updateRuleAt (int index, const Rule &rule)
	modify the rule at a specific position of the list of rules
void	removeRuleAt (int index)
	remove the rule at the specified index
Static Public Member Functions
static QgsFeatureRendererV2 *	create (QDomElement &element)
static QList< Rule >	refineRuleCategories (Rule &initialRule, QgsCategorizedSymbolRendererV2 *r)
	take a rule and create a list of new rules based on the categories from categorized symbol renderer
static QList< Rule >	refineRuleRanges (Rule &initialRule, QgsGraduatedSymbolRendererV2 *r)
	take a rule and create a list of new rules based on the ranges from graduated symbol renderer
static QList< Rule >	refineRuleScales (Rule &initialRule, QList< int > scales)
	take a rule and create a list of new rules with intervals of scales given by the passed scale denominators
Protected Attributes
QList< Rule >	mRules
	the list of rules
QgsSymbolV2 *	mDefaultSymbol
	the default symbol, used for the first rule with no filter
QList< Rule * >	mCurrentRules
QgsFieldMap	mCurrentFields
QgsSymbolV2 *	mCurrentSymbol
Classes
class	Rule
	This class keeps data about a rules for rule-based renderer. More...
