QgsInterpolator Class Reference

Interface class for interpolations. More...

#include <qgsinterpolator.h>

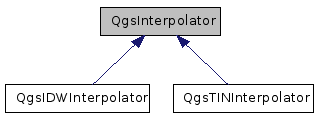

Inheritance diagram for QgsInterpolator:

List of all members.

Public Types

enum InputType { POINTS, STRUCTURE_LINES, BREAK_LINES }

Describes the type of input data. More...

Public Member Functions

QgsInterpolator (const QList< LayerData > &layerData)

virtual ~QgsInterpolator ()

virtual int interpolatePoint (double x, double y, double &result)=0

Calculates interpolation value for map coordinates x, y.

void enableAttributeValueInterpolation (int attribute)

Use a vector attribute as interpolation value.

Protected Member Functions

int cacheBaseData ()

Caches the vertex and value data from the provider.

Protected Attributes

QVector< vertexData > mCachedBaseData

bool mDataIsCached

Flag that tells if the cache already has been filled.

QList< LayerData > mLayerData

Private Member Functions

QgsInterpolator ()

int addVerticesToCache (QgsGeometry *geom, bool zCoord, double attributeValue)

Helper method that adds the vertices of a geometry to the mCachedBaseData.

Classes

struct LayerData

A layer together with the information about interpolation attribute / z-coordinate interpolation and the type (point, structure line, breakline). More...

Detailed Description

Interface class for interpolations.

Interpolators take the vertices of a vector layer as base data. The z-Value can be an attribute or the z-coordinates in case of 25D types

Definition at line 36 of file qgsinterpolator.h.

Member Enumeration Documentation

enum QgsInterpolator::InputType

Describes the type of input data.

Enumerator:

POINTS
STRUCTURE_LINES
BREAK_LINES

Definition at line 40 of file qgsinterpolator.h.

Constructor & Destructor Documentation

QgsInterpolator::QgsInterpolator ( const QList< LayerData > & layerData )

Definition at line 31 of file qgsinterpolator.cpp.

QgsInterpolator::~QgsInterpolator ( ) [virtual]

Definition at line 41 of file qgsinterpolator.cpp.

QgsInterpolator::QgsInterpolator ( ) [private]

Definition at line 36 of file qgsinterpolator.cpp.

Member Function Documentation

virtual int QgsInterpolator::interpolatePoint	(	double	x,
		double	y,
		double &	result
	)			`[pure virtual]`

Calculates interpolation value for map coordinates x, y.

Parameters:

	x	x-coordinate (in map units)
	y	y-coordinate (in map units)
	result	out: interpolation result

Returns:: 0 in case of success

Implemented in QgsIDWInterpolator, and QgsTINInterpolator.

Referenced by QgsGridFileWriter::writeFile().

void QgsInterpolator::enableAttributeValueInterpolation ( int attribute )

Use a vector attribute as interpolation value.

int QgsInterpolator::cacheBaseData ( ) [protected]

Caches the vertex and value data from the provider.

All the vertex data will be held in virtual memory

Returns:: 0 in case of success

Definition at line 46 of file qgsinterpolator.cpp.

References addVerticesToCache(), QgsFeature::attributeMap(), QgsFeature::geometry(), mCachedBaseData, mLayerData, QgsVectorDataProvider::nextFeature(), and QgsVectorDataProvider::select().

Referenced by QgsIDWInterpolator::interpolatePoint().

int QgsInterpolator::addVerticesToCache	(	QgsGeometry *	geom,
		bool	zCoord,
		double	attributeValue
	)			`[private]`

Helper method that adds the vertices of a geometry to the mCachedBaseData.

Parameters:

	geom	the geometry
	zCoord	true if the z-coordinate of the geometry is to be interpolated
	attributeValue	the attribute value for interpolation (if not interpolated from z-coordinate)

Returns:: 0 in case of success

Definition at line 111 of file qgsinterpolator.cpp.

References QgsGeometry::asWkb(), mCachedBaseData, mDataIsCached, QGis::WKBLineString, QGis::WKBLineString25D, QGis::WKBMultiLineString, QGis::WKBMultiLineString25D, QGis::WKBMultiPoint, QGis::WKBMultiPoint25D, QGis::WKBMultiPolygon, QGis::WKBMultiPolygon25D, QGis::WKBPoint, QGis::WKBPoint25D, QGis::WKBPolygon, QGis::WKBPolygon25D, QgsGeometry::wkbType(), vertexData::x, vertexData::y, and vertexData::z.

Referenced by cacheBaseData().

Member Data Documentation

QVector<vertexData> QgsInterpolator::mCachedBaseData [protected]

Definition at line 76 of file qgsinterpolator.h.

Referenced by addVerticesToCache(), cacheBaseData(), and QgsIDWInterpolator::interpolatePoint().

bool QgsInterpolator::mDataIsCached [protected]

Flag that tells if the cache already has been filled.

Definition at line 79 of file qgsinterpolator.h.

Referenced by addVerticesToCache(), and QgsIDWInterpolator::interpolatePoint().

QList<LayerData> QgsInterpolator::mLayerData [protected]

Definition at line 82 of file qgsinterpolator.h.

Referenced by cacheBaseData(), and QgsTINInterpolator::initialize().

The documentation for this class was generated from the following files:

src/analysis/interpolation/qgsinterpolator.h
src/analysis/interpolation/qgsinterpolator.cpp
